from owners manual to the vehicle Mazda MX-5, year of production 2014:

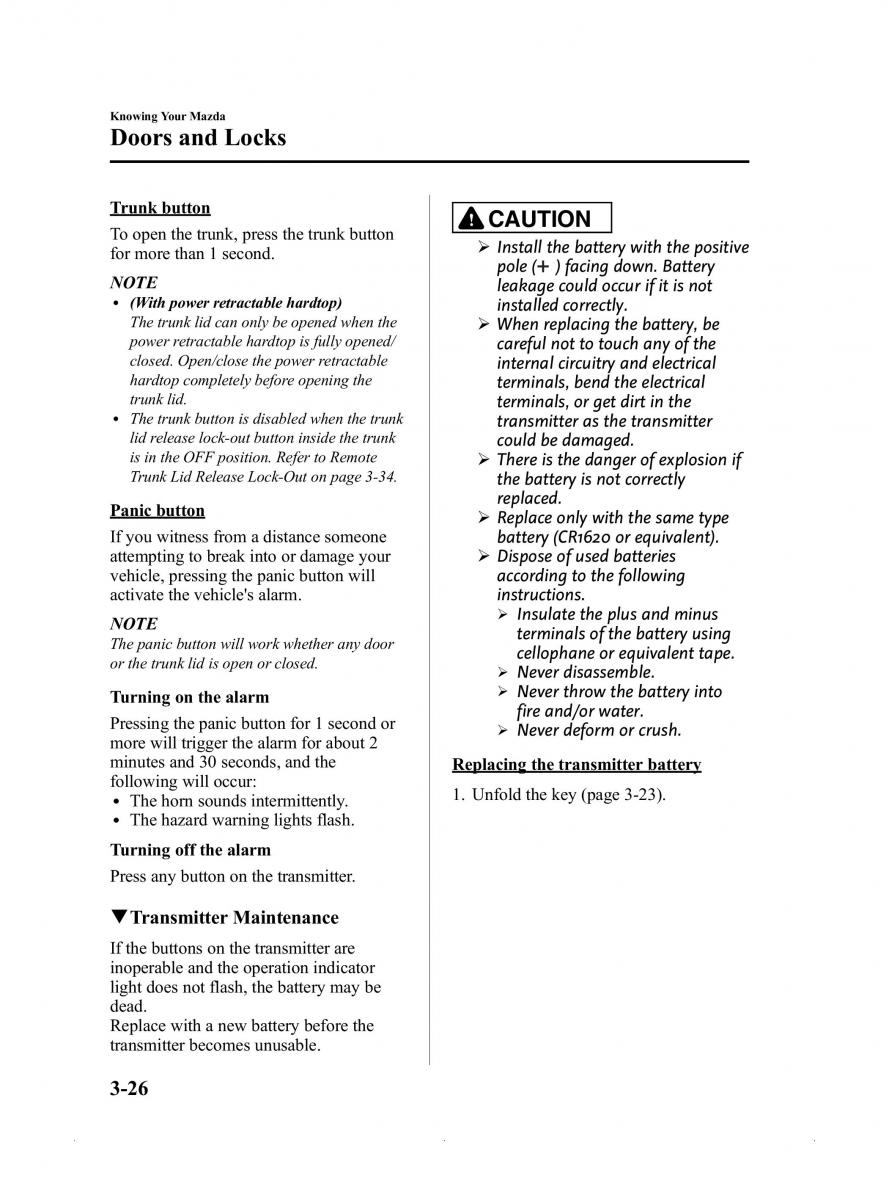

MX-5_8EN7-EA-14E_Edition1 Page80
Friday, March 28 2014 3:38 PM
Black plate (80,1)
KnowingYourMazda
DoorsandLocks
Trunkbutton CAUTION
Toopenthetrunk, press the trunk button ØInstall the battery with the positive
for more than 1 second. pole ( ) facing down. Battery
NOTE leakage could occur if it is not
l (With power retractable hardtop) installed correctly.
The trunk lid can only be opened when the ØWhenreplacingthebattery, be
power retractable hardtop is fully opened/ careful not to touch any of the
closed. Open/close the power retractable internal circuitry and electrical
hardtop completely before opening the terminals, bend the electrical
trunk lid. terminals, or get dirt in the
l Thetrunk button is disabled when the trunk transmitter as the transmitter
lid release lock-out button inside the trunk could be damaged.
is in the OFF position. Refer to Remote ØThereisthedangerofexplosionif
Trunk Lid Release Lock-Out on page 3-34. the battery is not correctly
Panic button replaced.
ØReplaceonlywiththesametype
If you witness from a distance someone battery (CR1620 or equivalent).
attempting to break into or damage your ØDisposeofusedbatteries
vehicle, pressing the panic button will according to the following
activate the vehicle's alarm. instructions.
NOTE Ø Insulate the plus and minus
The panic button will work whether any door terminals of the battery using
or the trunk lid is open or closed. cellophane or equivalent tape.
Ø Never disassemble.
Turning on the alarm Ø Never throw the battery into
Pressing the panic button for 1 second or fire and/or water.
more will trigger the alarm for about 2 Ø Never deform or crush.
minutes and 30 seconds, and the Replacing the transmitter battery
following will occur: 1. Unfold the key (page 3-23).
l The horn sounds intermittently.
l The hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitterMaintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
3-26
Form No.8EN7-EA-14E
