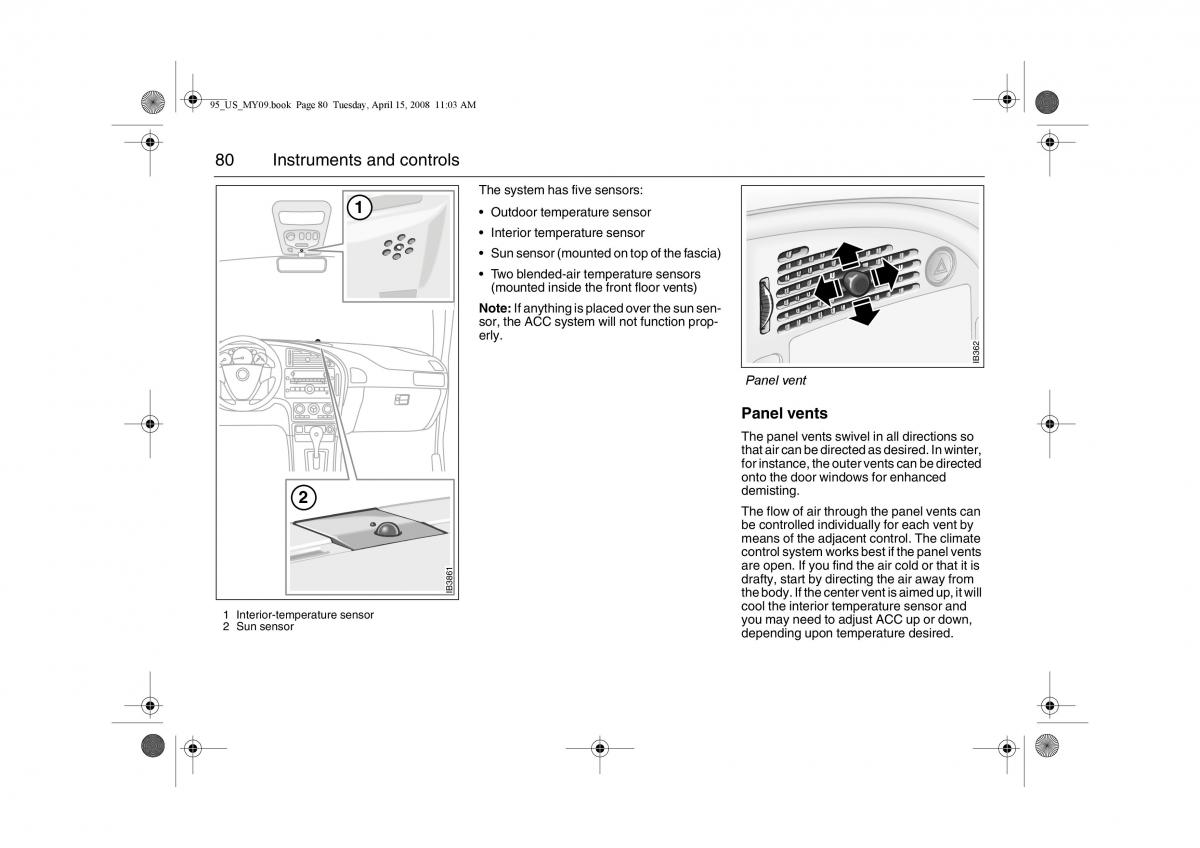

95_US_MY09.book Page 80 Tuesday, April 15, 2008 11:03 AM
80 Instruments and controls
The system has five sensors:
1 • Outdoor temperature sensor
• Interior temperature sensor
• Sun sensor (mounted on top of the fascia)
• Two blended-air temperature sensors
(mounted inside the front floor vents)
Note: If anything is placed over the sun sen-
sor, the ACC system will not function prop-
erly.
IB362
Panel vent
Panel vents
The panel vents swivel in all directions so
that air can be directed as desired. In winter,
for instance, the outer vents can be directed
onto the door windows for enhanced
2 demisting.
The flow of air through the panel vents can
be controlled individually for each vent by
means of the adjacent control. The climate
control system works best if the panel vents
are open. If you find the air cold or that it is
drafty, start by directing the air away from
IB3861 the body. If the center vent is aimed up, it will
1 Interior-temperature sensor cool the interior temperature sensor and
2 Sun sensor you may need to adjust ACC up or down,
depending upon temperature desired.
