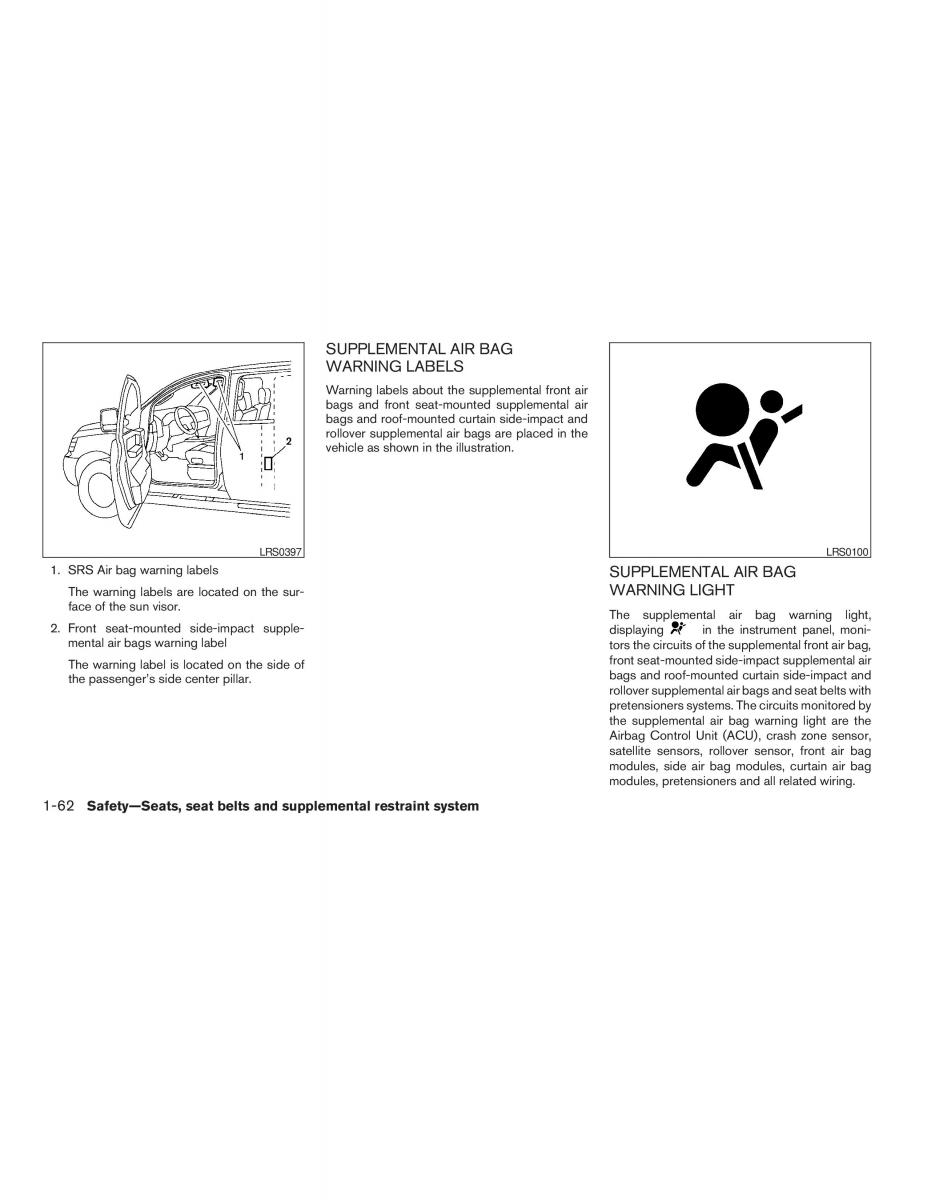

SUPPLEMENTALAIRBAG
WARNINGLABELS
Warning labels about the supplemental front air
bags and front seat-mounted supplemental air
bags and roof-mounted curtain side-impact and
rollover supplemental air bags are placed in the
vehicle as shown in the illustration.
LRS0397 LRS0100
1. SRSAir bag warning labels SUPPLEMENTALAIRBAG
The warning labels are located on the sur- WARNINGLIGHT
face of the sun visor. The supplemental air bag warning light,
2. Front seat-mounted side-impact supple- displaying in the instrument panel, moni-
mental air bags warning label tors the circuits of the supplemental front air bag,
The warning label is located on the side of front seat-mountedside-impactsupplementalair
the passenger’s side center pillar. bags and roof-mounted curtain side-impact and
rolloversupplementalairbagsandseatbeltswith
pretensionerssystems.Thecircuitsmonitoredby
the supplemental air bag warning light are the
Airbag Control Unit (ACU), crash zone sensor,
satellite sensors, rollover sensor, front air bag
modules, side air bag modules, curtain air bag
modules, pretensioners and all related wiring.
1-62 Safety—Seats, seat belts and supplemental restraint system
ZREVIEWCOPY—2008Infiniti QX56 (iwz)
Owners Manual—USA_English (nna)
03/02/07—debbieX
