text version of content this owner's manual page from owners manual to the vehicle Toyota CH-R, year of production 2016:

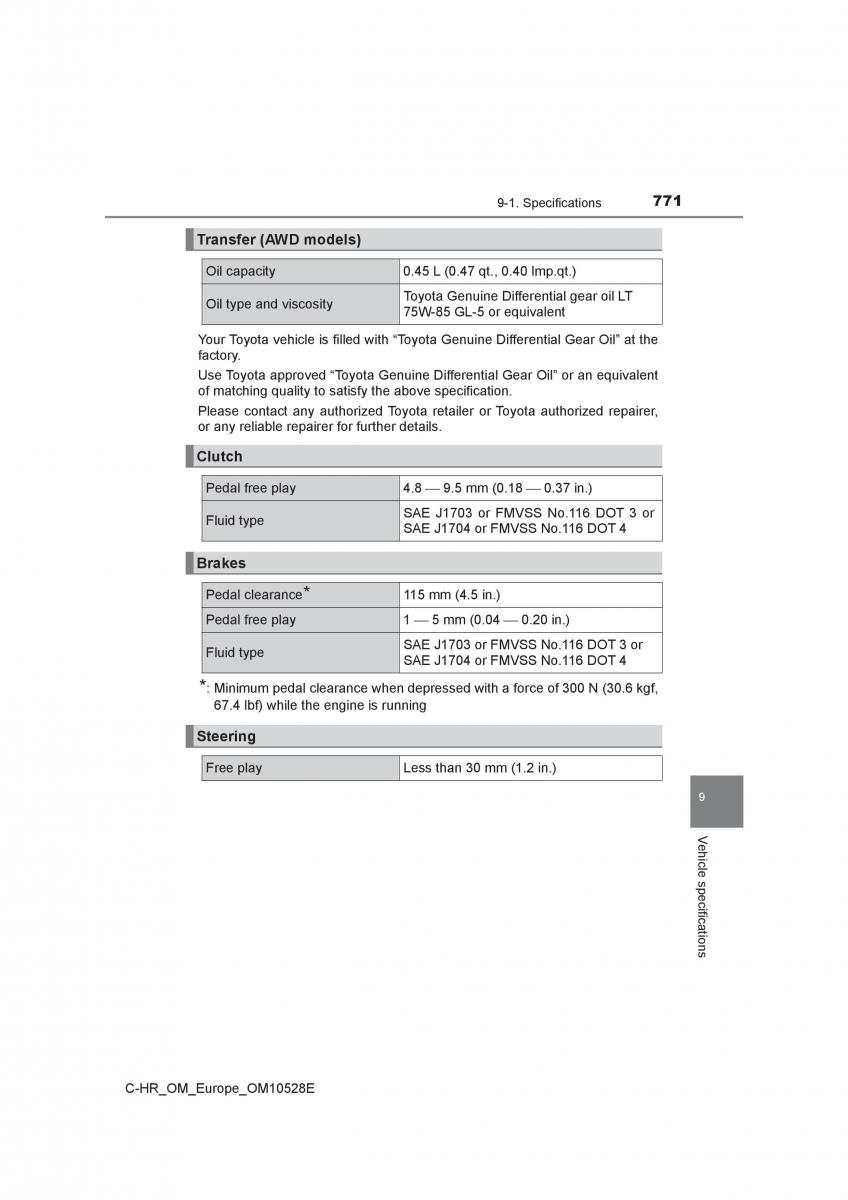

9-1. Specifications771 Transfer (AWD models) Oil capacity 0.45 L (0.47 qt., 0.40 lmp.qt.) Oil type and viscosityToyota Genuine Differential gear oil LT 75W-85 GL-5 or equivalent Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification. Please contact any authorized Toyota taireler or Toyota authorized repairer, or any reliable repairer for further details. Clutch Pedal free play 4.8  9.5 mm (0.18  0.37 in.) Fluid type SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704 or FMVSS No.116 DOT 4 Brakes Pedal clearance* 115 mm (4.5 in.) Pedal free play 1  5 mm (0.04  0.20 in.) Fluid type SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704 or FMVSS No.116 DOT 4 *: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4 lbf) while the engine is running Steering Free play Less than 30 mm (1.2 in.) 9 V e h i cl e s p e c i f ic at i o ns C-HR_OM_Europe_OM10528E
