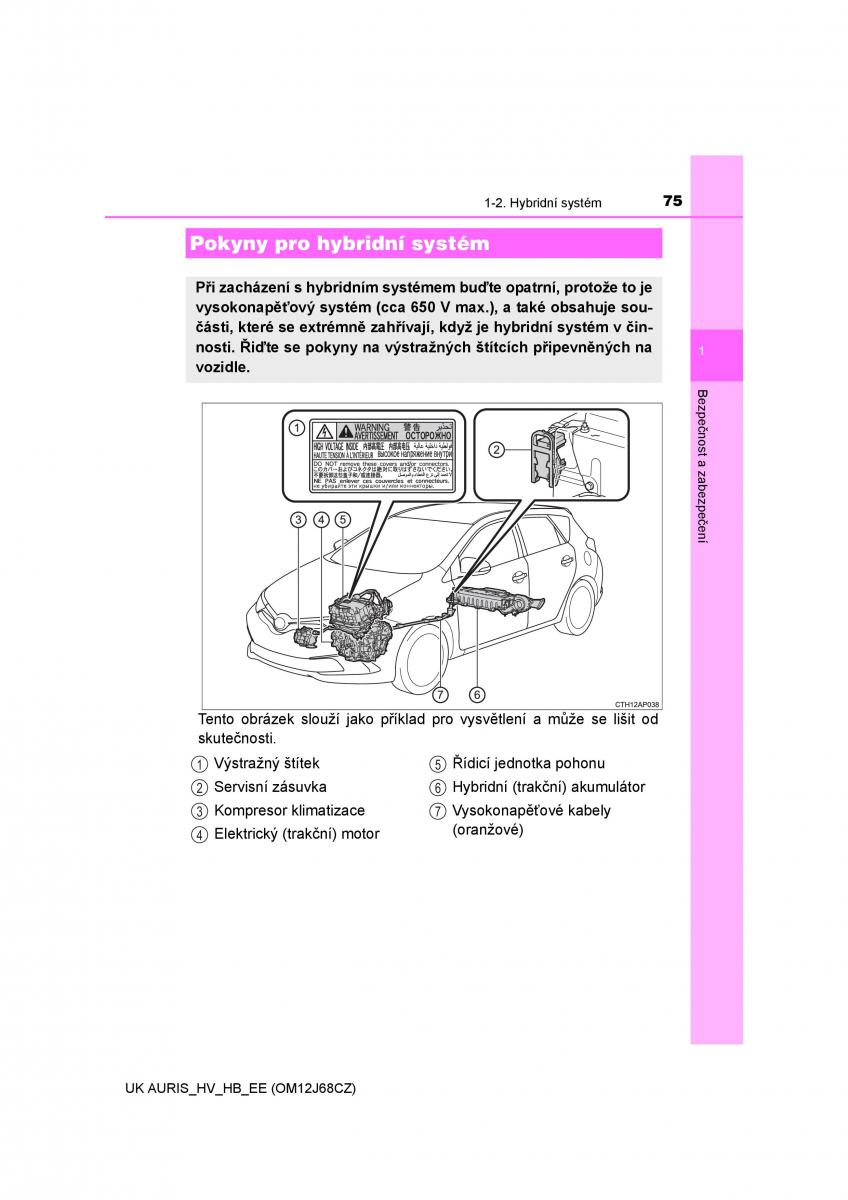

1-2. Hybridní systém75
Pokyny pro hybridní systém
PĜi zacházení s hybridním systémem bu ďte opatrní, protože to je
vysokonapěťový systém (cca 650 V max.), a také obsahuje sou-
části, které se extrémně zahĜívají, když je hybridní systém v čin-
nosti. ěiďte se pokyny na výstražných štítcích pĜipevněných na1
vozidle.
Bezpe
č
nost a zabezpe
č
en
í
Tento obrázek slouží jako pĜíklad pro vysvČtlení a mĤže se lišit od
skutečnosti.
1 Výstražný štítek 5 ěídicí jednotka pohonu
2 Servisní zásuvka 6 Hybridní (trakční) akumulátor
3 Kompresor klimatizace 7 VysokonapČťové kabely
4 Elektrický (trakční) motor(oranžové)
UK AURIS_HV_HB_EE (OM12J68CZ)
