text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2001 - 2008:

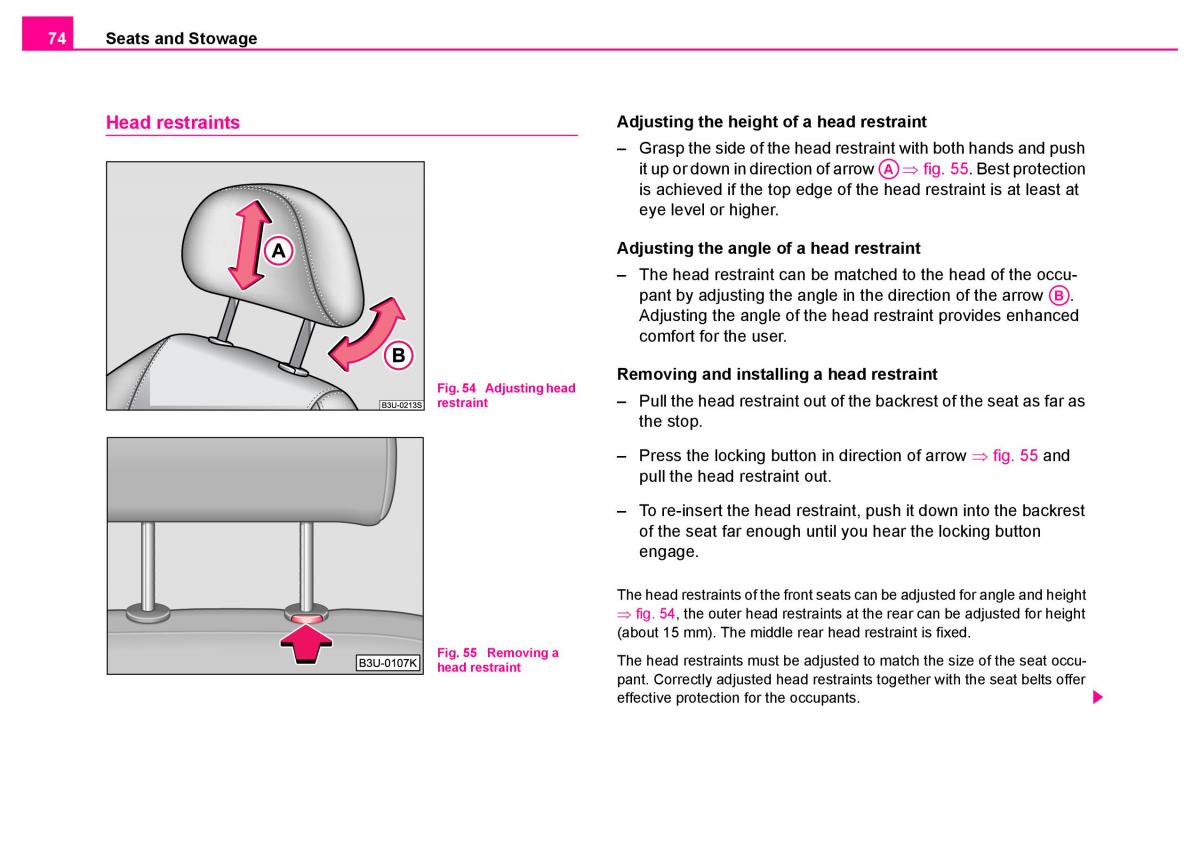

74 Seats and Stowage Head restraints Adjusting the height of a head restraint – Grasp the side of the head restraint with both hands and push it up or down in direction of arrow A ⇒fig. 55. Best protection A is achieved if the top edge of the head restraint is at least at eye level or higher. Adjusting the angle of a head restraint – The head restraint can be matched to the head of the occu- pant by adjusting the angle in the direction of the arrow B . A Adjusting the angle of the head restraint provides enhanced comfort for the user. Fig. 54 Adjusting head Removing and installing a head restraint restraint – Pull the head restraint out of the backrest of the seat as far as the stop. – Press the locking button in direction of arrow ⇒ fig. 55 and pull the head restraint out. – To re-insert the head restraint, push it down into the backrest of the seat far enough until you hear the locking button engage. The head restraints of the front seats can be adjusted for angle and height ⇒fig. 54, the outer head restraints at the rear can be adjusted for height (about 15 mm). The middle rear head restraint is fixed. Fig. 55 Removing a The head restraints must be adjusted to match the size of the seat occu- head restraintpant. Correctly adjusted head restraints together with the seat belts offer effective protection for the occupants.
