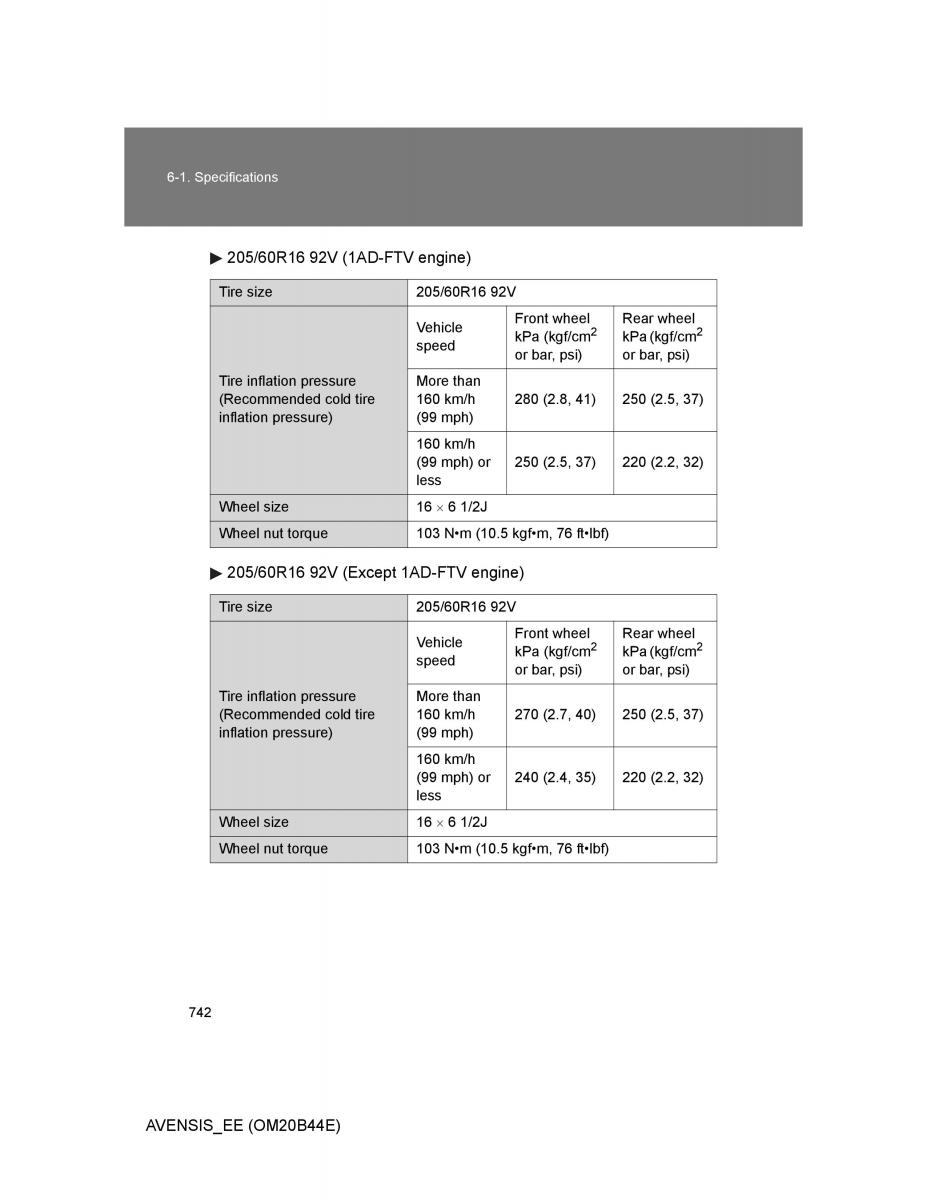

6-1. Specifications
205/60R16 92V (1AD-FTV engine)
Tire size 205/60R16 92V
Vehicle Front wheel Rear wheel
2 2
speed kPa (kgf/cm kPa (kgf/cm
or bar, psi)or bar, psi)
Tire inflation pressure More than
(Recommended cold tire 160 km/h 280 (2.8, 41)250 (2.5, 37)
inflation pressure) (99 mph)
160 km/h
(99 mph) or 250 (2.5, 37)220 (2.2, 32)
less
Wheel size 16 6 1/2J
Wheel nut torque 103 Nm (10.5 kgfm, 76 ftlbf)
205/60R16 92V (Except 1AD-FTV engine)
Tire size 205/60R16 92V
Vehicle Front wheel Rear wheel
2 2
speed kPa (kgf/cm kPa (kgf/cm
or bar, psi)or bar, psi)
Tire inflation pressure More than
(Recommended cold tire 160 km/h 270 (2.7, 40)250 (2.5, 37)
inflation pressure) (99 mph)
160 km/h
(99 mph) or 240 (2.4, 35)220 (2.2, 32)
less
Wheel size 16 6 1/2J
Wheel nut torque 103 Nm (10.5 kgfm, 76 ftlbf)
742
AVENSIS_EE (OM20B44E)
