text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

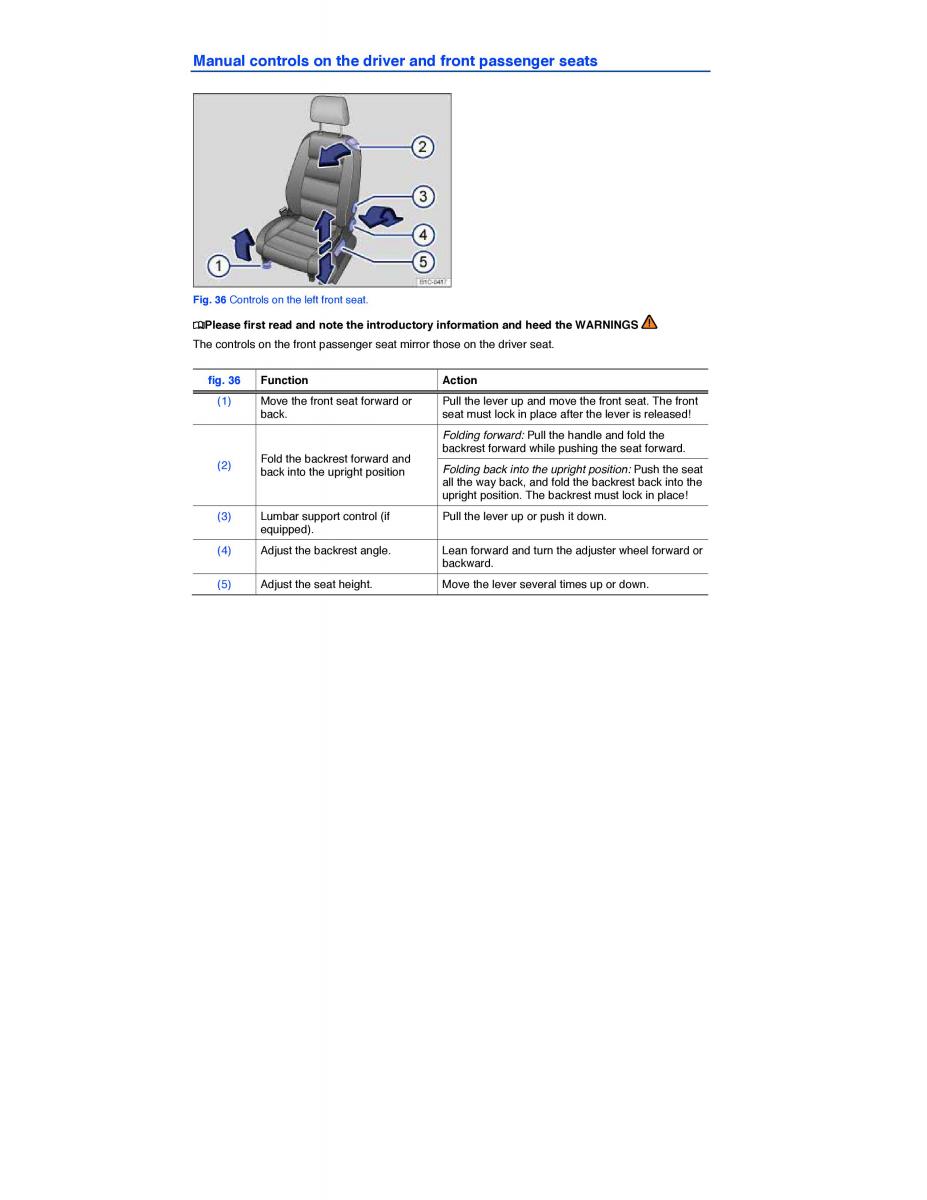

Manual controls on the driver and front passenger seats Fig. 36 Controls on the left front seat. ¤Please first read and note the introductory information and heed the WARNINGS The controls on the front passenger seat mirror those on the driver seat. fig. 36 Function Action (1) Move the front seat forward or Pull the lever up and move the front seat. The front back. seat must lock in place after the lever is released! Folding forward: Pull the handle and fold the Fold the backrest forward and backrest forward while pushing the seat forward. (2) back into the upright position Folding back into the upright position: Push the seat all the way back, and fold the backrest back into the upright position. The backrest must lock in place! (3) Lumbar support control (if Pull the lever up or push it down. equipped). (4) Adjust the backrest angle. Lean forward and turn the adjuster wheel forward or backward. (5) Adjust the seat height. Move the lever several times up or down.
