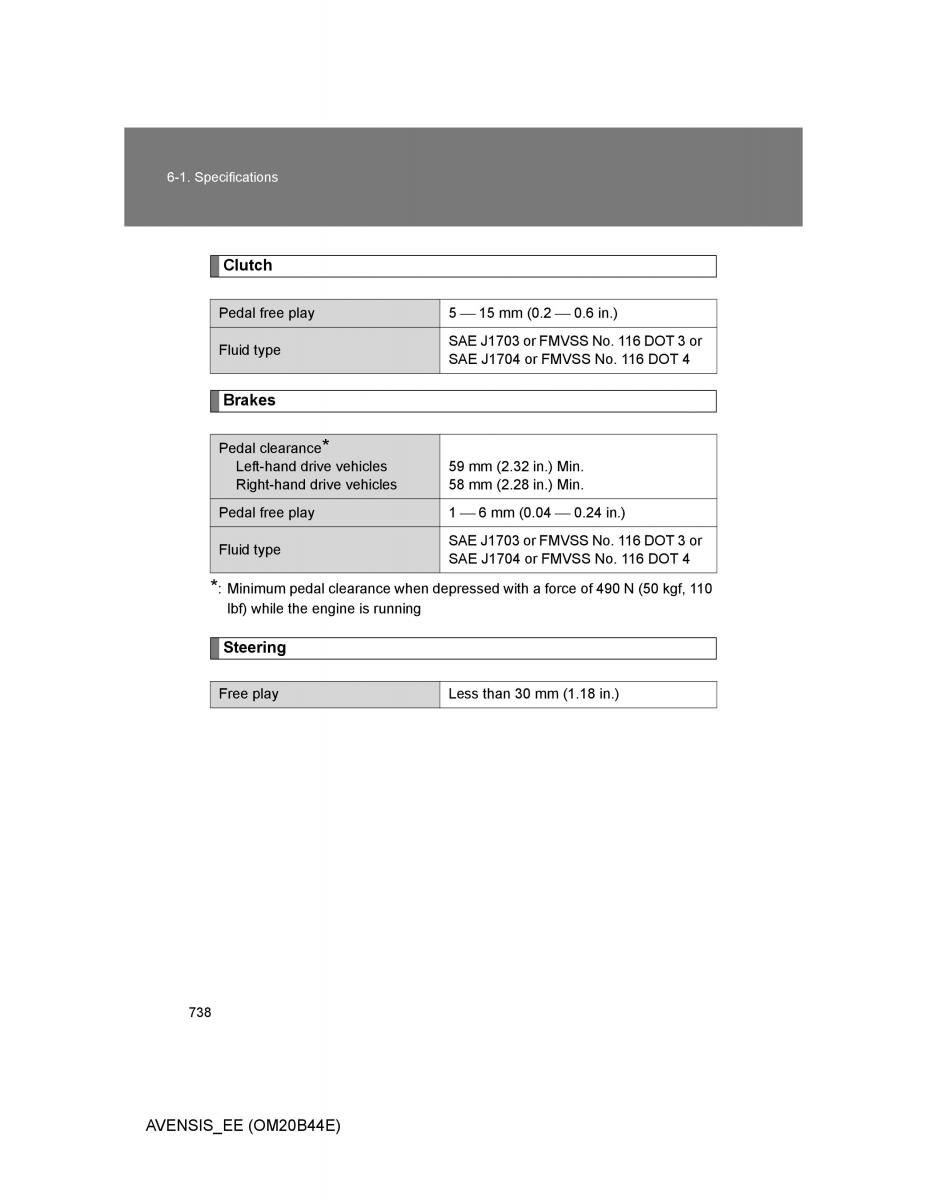

6-1. Specifications
Clutch
Pedal free play 5 15 mm (0.2 0.6 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Brakes
Pedal clearance*
Left-hand drive vehicles59 mm (2.32 in.) Min.
Right-hand drive vehicles58 mm (2.28 in.) Min.
Pedal free play 1 6 mm (0.04 0.24 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
*: Minimum pedal clearance when depressed with a force of 490 N (50 kgf, 110
lbf) while the engine is running
Steering
Free play Less than 30 mm (1.18 in.)
738
AVENSIS_EE (OM20B44E)
