text version of content this owner's manual page from owners manual to the vehicle Peugeot 4008, year of production 2012:

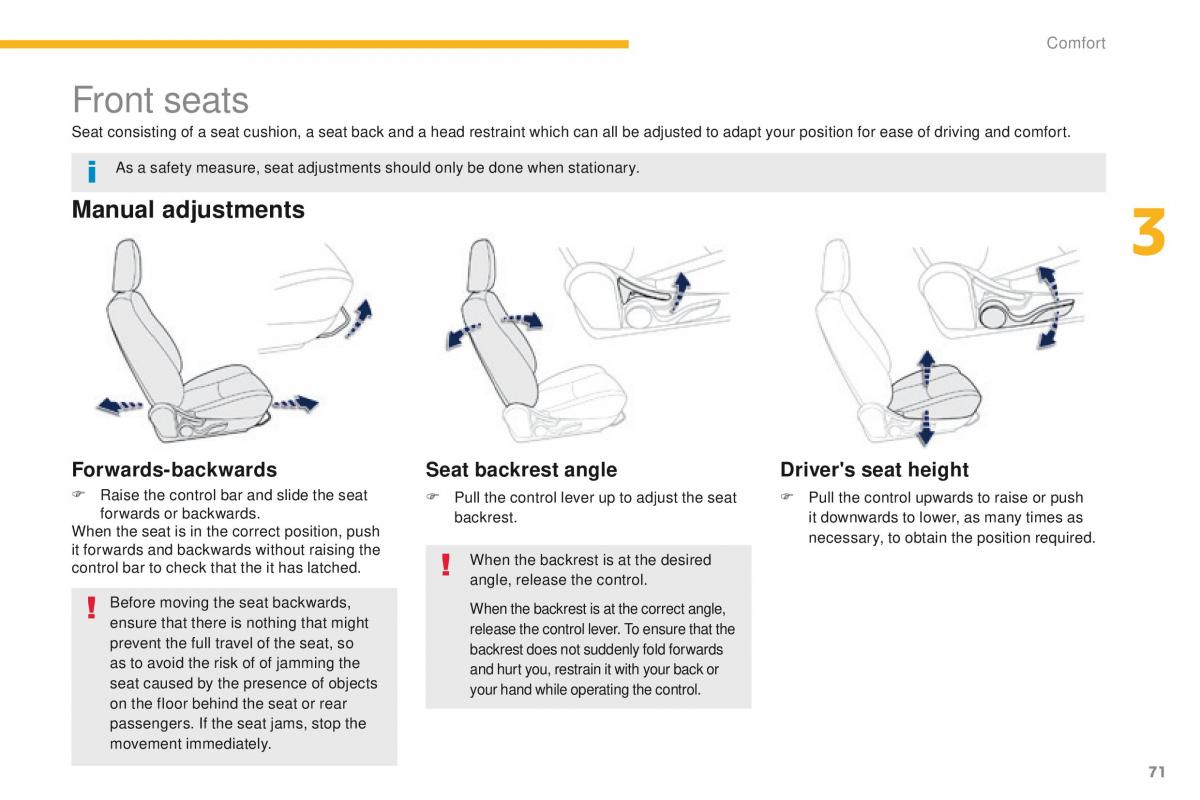

Comfort
Front seats
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.
As a safety measure, seat adjustments should only be done when stationary.
Manual adjustments 3
Forwards-backwards Seat backrest angle Driver's seat height
F Raise the control bar and slide the seat F Pull the control lever up to adjust the seat F Pull the control upwards to raise or push
forwards or backwards. backrest. it downwards to lower, as many times as
When the seat is in the correct position, push necessary, to obtain the position required.
it forwards and backwards without raising the When the backrest is at the desired
control bar to check that the it has latched.angle, release the control.
Before moving the seat backwards, When the backrest is at the correct angle,
ensure that there is nothing that might release the control lever. to ensure that the
prevent the full travel of the seat, so backrest does not suddenly fold forwards
as to avoid the risk of of jamming the and hurt you, restrain it with your back or
seat caused by the presence of objects your hand while operating the control.
on the floor behind the seat or rear
passengers. If the seat jams, stop the
movement immediately.
71
