text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

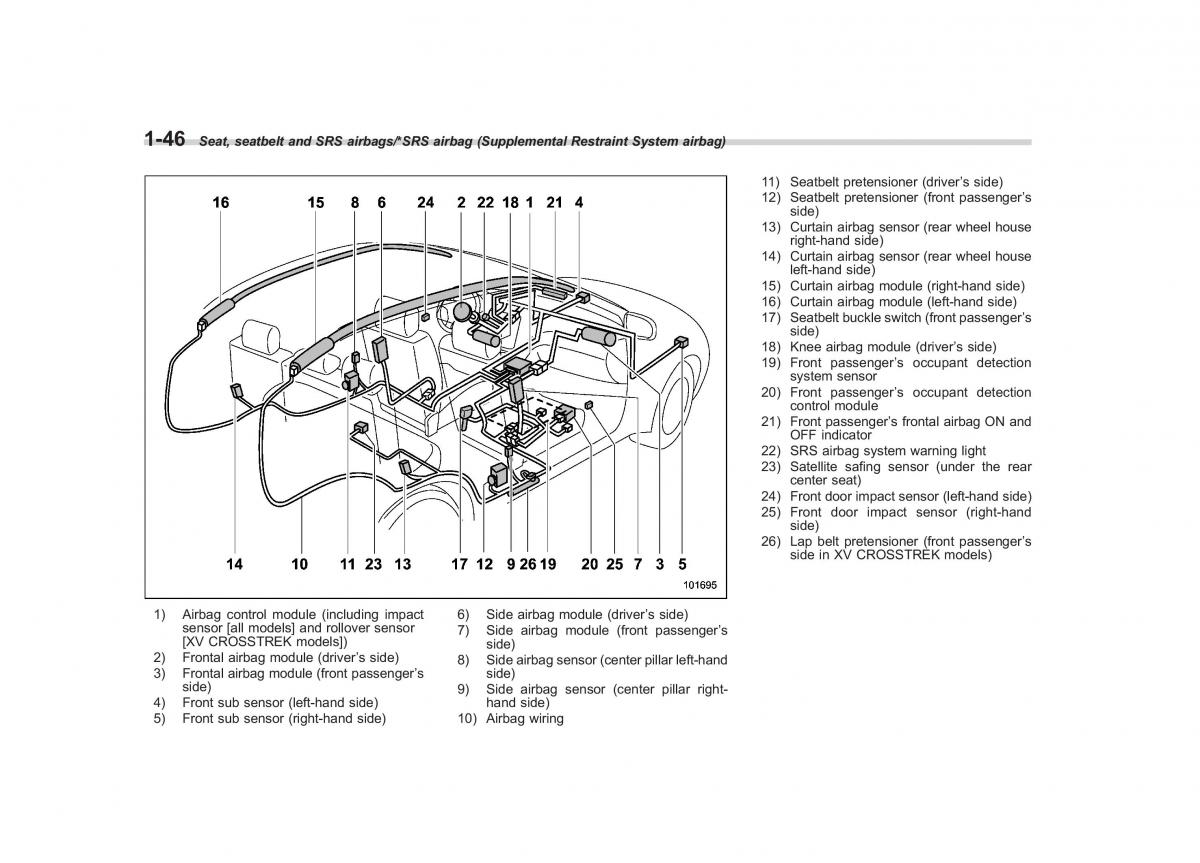

1-46 Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag) 11) Seatbelt pretensioner (driver’s side) 12) Seatbelt pretensioner (front passenger’s side) 13) Curtain airbag sensor (rear wheel house right-hand side) 14) Curtain airbag sensor (rear wheel house left-hand side) 15) Curtain airbag module (right-hand side) 16) Curtain airbag module (left-hand side) 17) Seatbelt buckle switch (front passenger’s side) 18) Knee airbag module (driver’s side) 19) Front passenger’s occupant detection system sensor 20) Front passenger’s occupant detection control module 21) Front passenger’s frontal airbag ON and OFF indicator 22) SRS airbag system warning light 23) Satellite safing sensor (under the rear center seat) 24) Front door impact sensor (left-hand side) 25) Front door impact sensor (right-hand side) 26) Lap belt pretensioner (front passenger’s side in XV CROSSTREK models) 1)Airbag control module (including impact6)Side airbag module (driver’s side) sensor [all models] and rollover sensor7)Side airbag module (front passenger’s [XV CROSSTREK models]) side) 2)Frontal airbag module (driver’s side)8)Sideairbagsensor(centerpillar left-hand 3)Frontal airbag module (front passenger’sside) side) 9) Side airbag sensor (center pillar right- 4)Front sub sensor (left-hand side)hand side) 5)Front sub sensor (right-hand side)10) Airbag wiring
