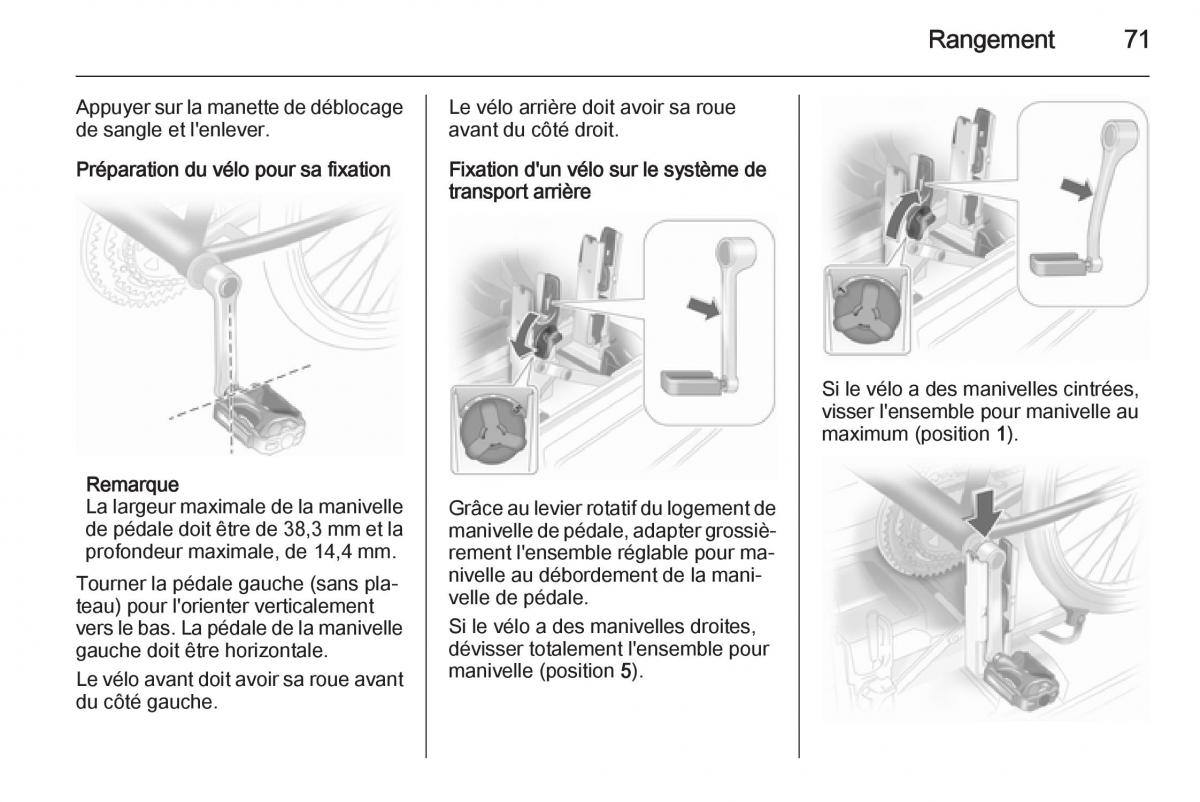

Rangement 71
Appuyer sur la manette de déblocageLe vélo arrière doit avoir sa roue
de sangle et l'enlever.avant du côté droit.
Préparation du vélo pour sa fixationFixation d'un vélo sur le système de
transport arrière
Si le vélo a des manivelles cintrées,
visser l'ensemble pour manivelle au
maximum (position 1).
Remarque
La largeur maximale de la manivelleGrâce au levier rotatif du logement de
de pédale doit être de 38,3 mm et lamanivelle de pédale, adapter grossiè‐
profondeur maximale, de 14,4 mm.rement l'ensemble réglable pour ma‐
nivelle au débordement de la mani‐
Tourner la pédale gauche (sans pla‐
velle de pédale.
teau) pour l'orienter verticalement
vers le bas. La pédale de la manivelleSi le vélo a des manivelles droites,
gauche doit être horizontale.dévisser totalement l'ensemble pour
manivelle (position 5).
Le vélo avant doit avoir sa roue avant
du côté gauche.
