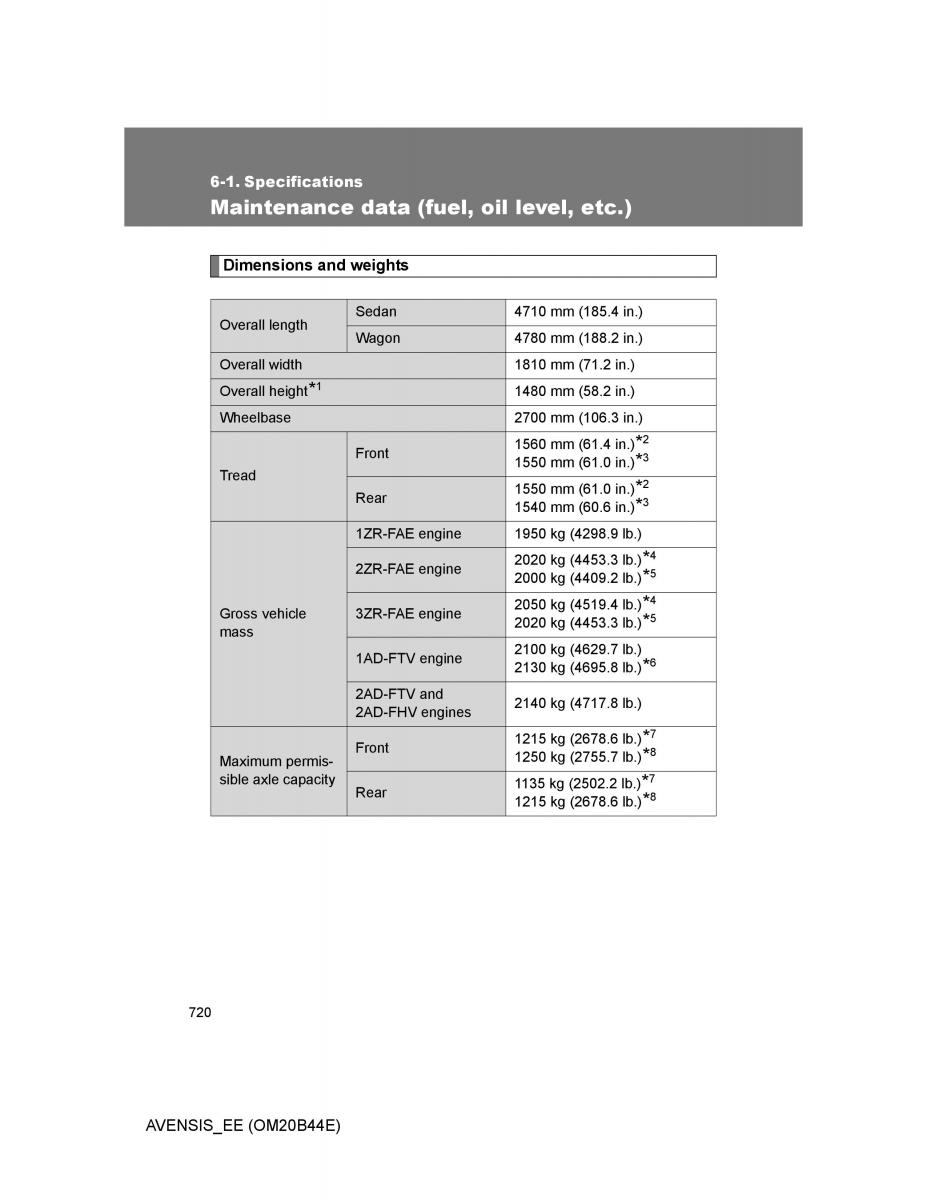

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length Sedan 4710 mm (185.4 in.)
Wagon 4780 mm (188.2 in.)
Overall width 1810 mm (71.2 in.)
Overall height*1 1480 mm (58.2 in.)
Wheelbase 2700 mm (106.3 in.)
2
Front 1560 mm (61.4 in.)*
3
Tread 1550 mm (61.0 in.)*
2
Rear 1550 mm (61.0 in.)*
3
1540 mm (60.6 in.)*
1ZR-FAE engine 1950 kg (4298.9 lb.)
4
2ZR-FAE engine 2020 kg (4453.3 lb.)*
5
2000 kg (4409.2 lb.)*
4
Gross vehicle 3ZR-FAE engine 2050 kg (4519.4 lb.)*
5
mass 2020 kg (4453.3 lb.)*
1AD-FTV engine 2100 kg (4629.7 lb.)
6
2130 kg (4695.8 lb.)*
2AD-FTV and 2140 kg (4717.8 lb.)
2AD-FHV engines
7
Front 1215 kg (2678.6 lb.)*
8
Maximum permis- 1250 kg (2755.7 lb.)*
sible axle capacity 1135 kg (2502.2 lb.)*7
Rear 8
1215 kg (2678.6 lb.)*
720
AVENSIS_EE (OM20B44E)
