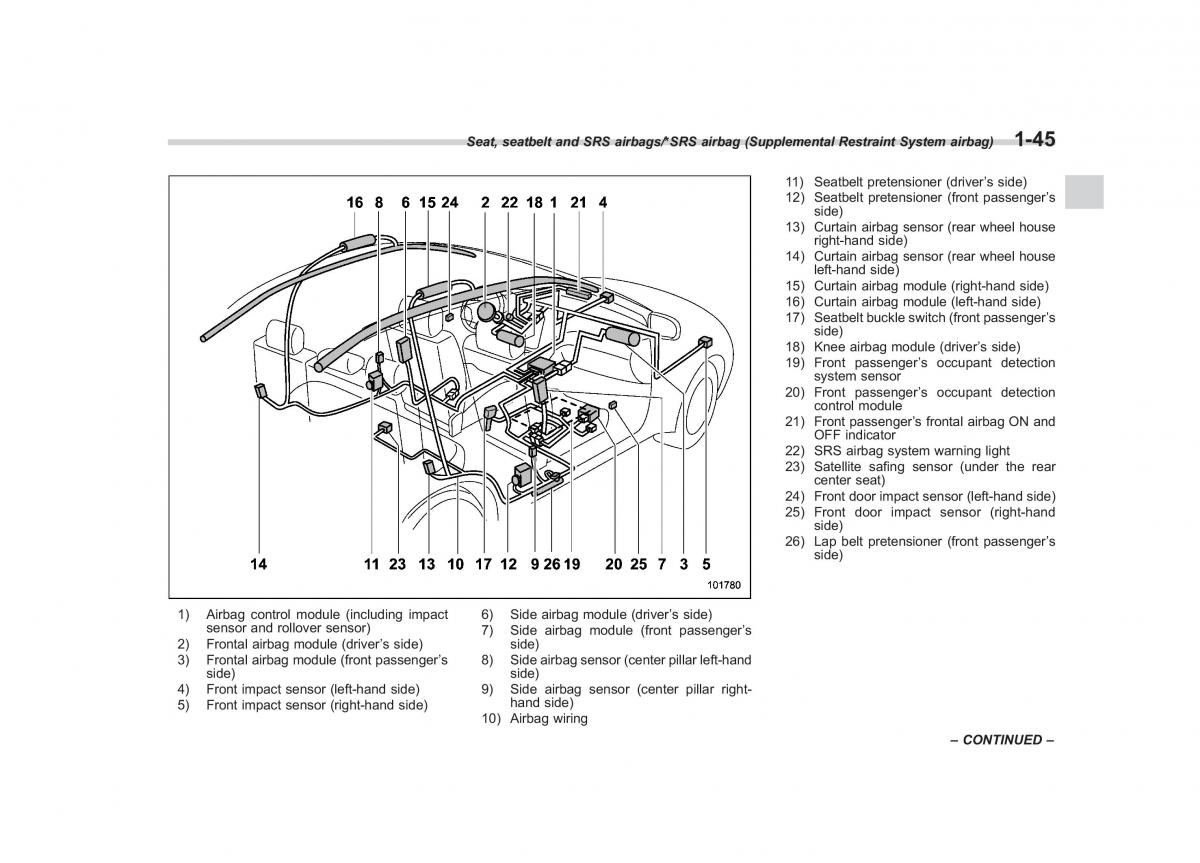

Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)1-45
11) Seatbelt pretensioner (driver’s side)
12) Seatbelt pretensioner (front passenger’s
side)
13) Curtain airbag sensor (rear wheel house
right-hand side)
14) Curtain airbag sensor (rear wheel house
left-hand side)
15) Curtain airbag module (right-hand side)
16) Curtain airbag module (left-hand side)
17) Seatbelt buckle switch (front passenger’s
side)
18) Knee airbag module (driver’s side)
19) Front passenger’s occupant detection
system sensor
20) Front passenger’s occupant detection
control module
21) Front passenger’s frontal airbag ON and
OFF indicator
22) SRS airbag system warning light
23) Satellite safing sensor (under the rear
center seat)
24) Front door impact sensor (left-hand side)
25) Front door impact sensor (right-hand
side)
26) Lap belt pretensioner (front passenger’s
side)
1)Airbag control module (including impact6)Side airbag module (driver’s side)
sensor and rollover sensor)7) Side airbag module (front passenger’s
2)Frontal airbag module (driver’s side)side)
3)Frontal airbag module (front passenger’s8)Sideairbagsensor(centerpillar left-hand
side) side)
4)Front impact sensor (left-hand side)9)Side airbag sensor (center pillar right-
5)Front impact sensor (right-hand side)hand side)
10) Airbag wiring
– CONTINUED –
