owners manual VW Beetle Convertible

owners manual VW Beetle Convertible - year of production: 2013 - VW Beetle Convertible owners manual EN

Document: pdf (5.52 MB) 281 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Beetle Convertible, year of production 2013:

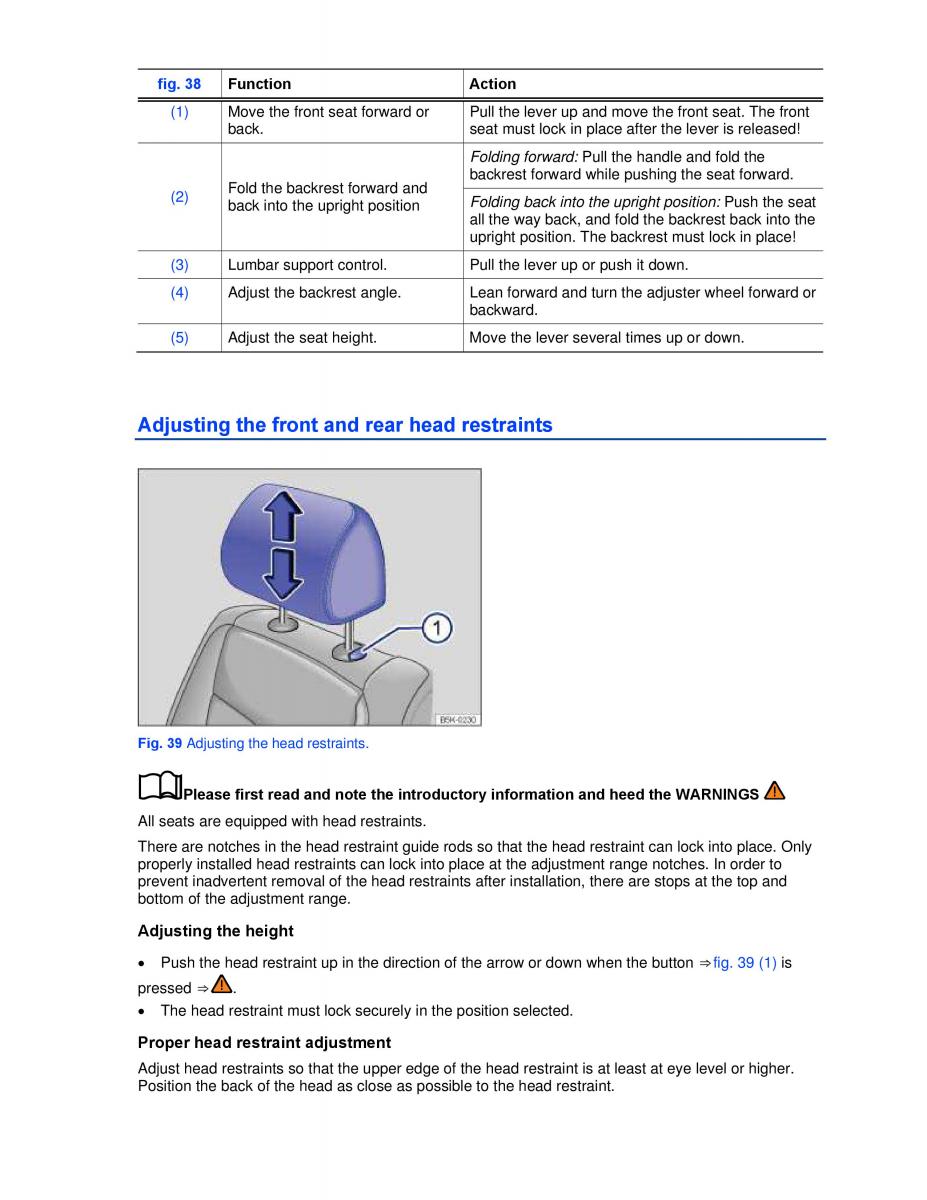

fig. 38 Function Action (1) Move the front seat forward or Pull the lever up and move the front seat. The front back. seat must lock in place after the lever is released! Folding forward: Pull the handle and fold the backrest forward while pushing the seat forward. (2) Fold the backrest forward and back into the upright position Folding back into the upright position: Push the seat all the way back, and fold the backrest back into the upright position. The backrest must lock in place! (3) Lumbar support control. Pull the lever up or push it down. (4) Adjust the backrest angle. Lean forward and turn the adjuster wheel forward or backward. (5) Adjust the seat height. Move the lever several times up or down. Adjusting the front and rear head restraints Fig. 39 Adjusting the head restraints. ¤Please first read and note the introductory information and heed the WARNINGS All seats are equipped with head restraints. There are notches in the head restraint guide rods so that the head restraint can lock into place. Only properly installed head restraints can lock into place at the adjustment range notches. In order to prevent inadvertent removal of the head restraints after installation, there are stops at the top and bottom of the adjustment range. Adjusting the height x Push the head restraint up in the direction of the arrow or down when the button⇒ fig. 39 (1) is pressed ⇒ . x The head restraint must lock securely in the position selected. Proper head restraint adjustment Adjust head restraints so that the upper edge of the head restraint is at least at eye level or higher. Position the back of the head as close as possible to the head restraint.
