text version of content this owner's manual page from owners manual to the vehicle Toyota Prius, year of production 2003 - 2009:

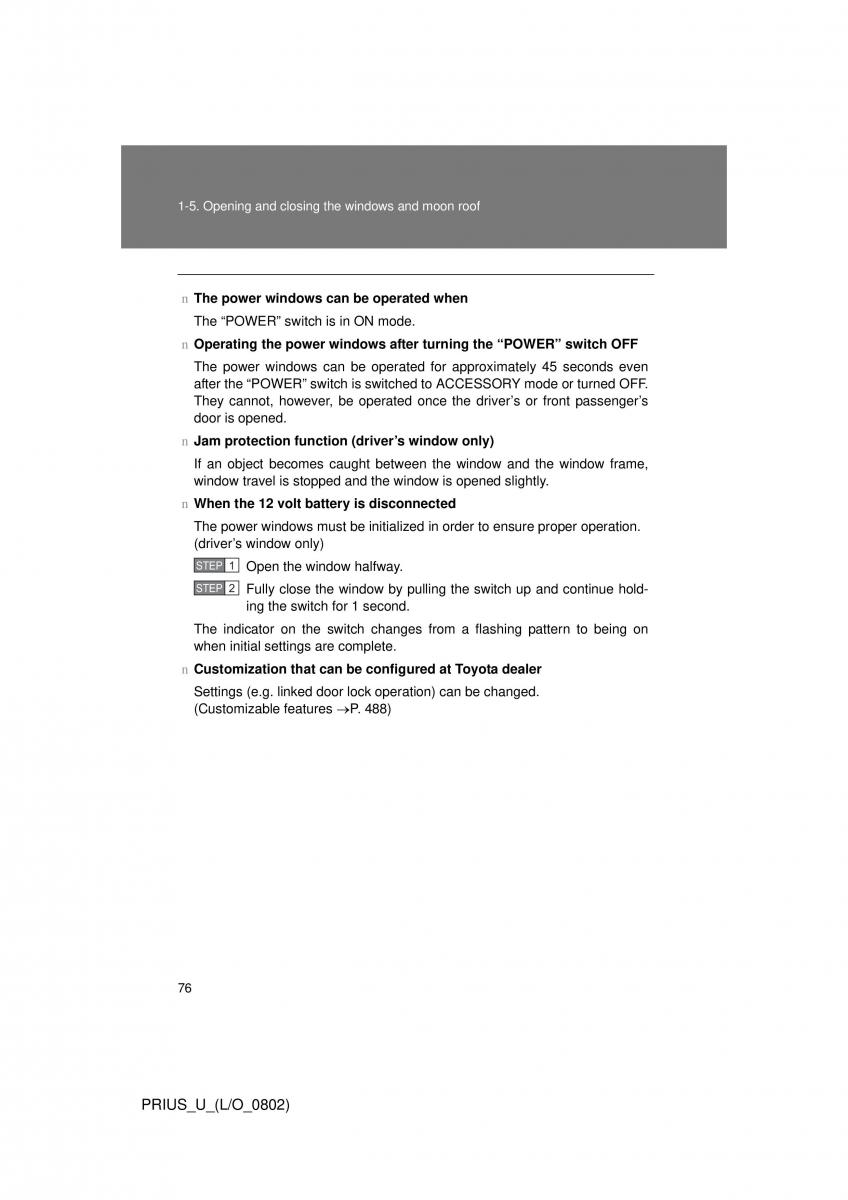

1-5. Opening and closing the windows and moon roof n The power windows can be operated when The “POWER” switch is in ON mode. n Operating the power windows after turning the “POWER” switch OFF The power windows can be operated for approximately 45 seconds even after the “POWER” switch is switc hed to ACCESSORY mode or turned OFF. They cannot, however, be operated once the driver’s or front passenger’s door is opened. n Jam protection function (driver’s window only) If an object becomes caught between the window and the window frame, window travel is stopped and the window is opened slightly. n When the 12 volt battery is disconnected The power windows must be initialized in order to ensure proper operation. (driver’s window only) STEP 1 Open the window halfway. STEP 2 Fully close the window by pulling the switch up and continue hold- ing the switch for 1 second. The indicator on the switch changes from a flashing pattern to being on when initial settings are complete. n Customization that can be configured at Toyota dealer Settings (e.g. linked door lock operation) can be changed. (Customizable features →P. 488) 76 PRIUS_U_(L/O_0802)
