text version of content this owner's manual page from owners manual to the vehicle Toyota CH-R, year of production 2016:

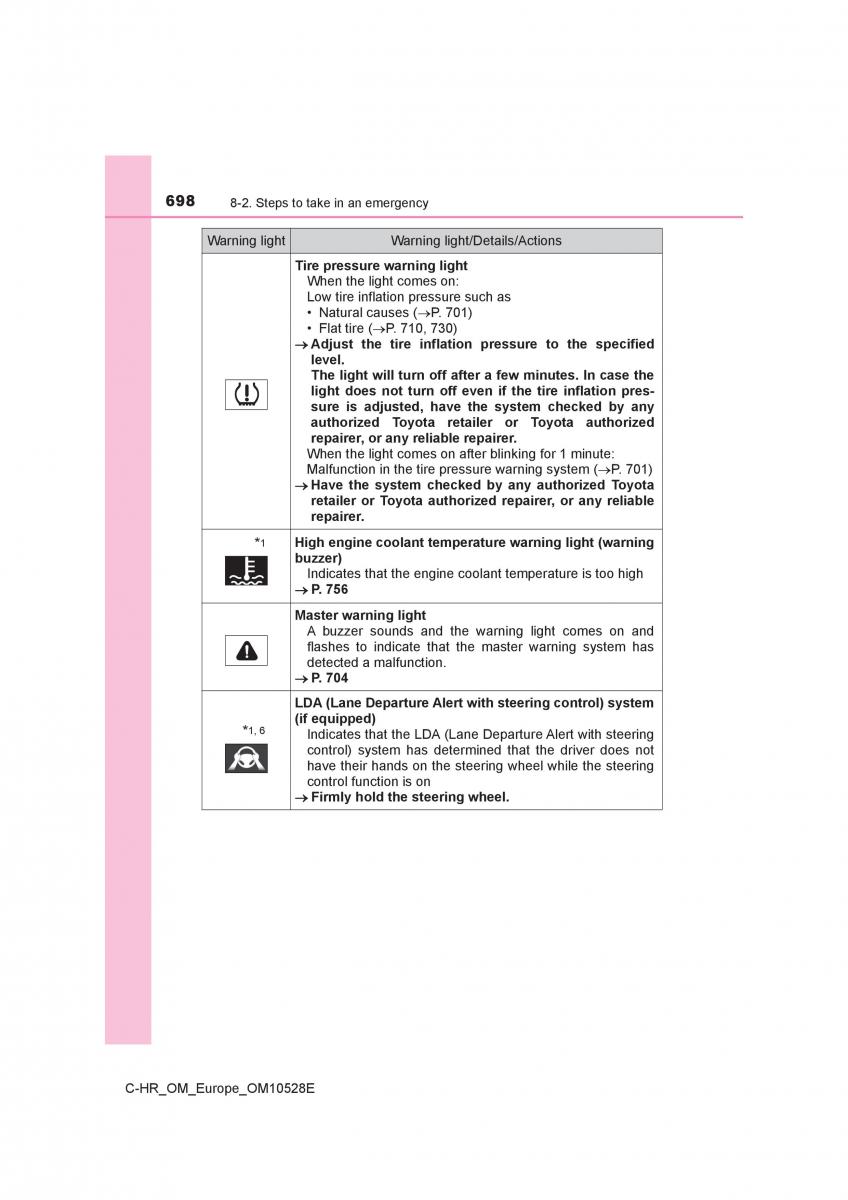

698 8-2. Steps to take in an emergency Warning light Warning light/Details/Actions Tire pressure warning light When the light comes on: Low tire inflation pressure such as Natural causes (P. 701) Flat tire (P. 710, 730) Adjust the tire inflation pressure to the specified level. The light will turn off after a few minutes. In case the light does not turn off even if the tire inflation pres- sure is adjusted, have the system checked by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer. When the light comes on after blinking for 1 minute: Malfunction in the tire pressure warning system (P. 701) Have the system checked by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer. *1 High engine coolant temperature warning light (warning buzzer) Indicates that the engine coolant temperature is too high P. 756 Master warning light A buzzer sounds and the warning light comes on and flashes to indicate that the master warning system has detected a malfunction. P. 704 LDA (Lane Departure Alert with steering control) system (if equipped) *1, 6 Indicates that the LDA (Lane Departure Alert with steering control) system has determined that the driver does not have their hands on the steering wheel while the steering control function is on Firmly hold the steering wheel. C-HR_OM_Europe_OM10528E
