text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2008 - 2015:

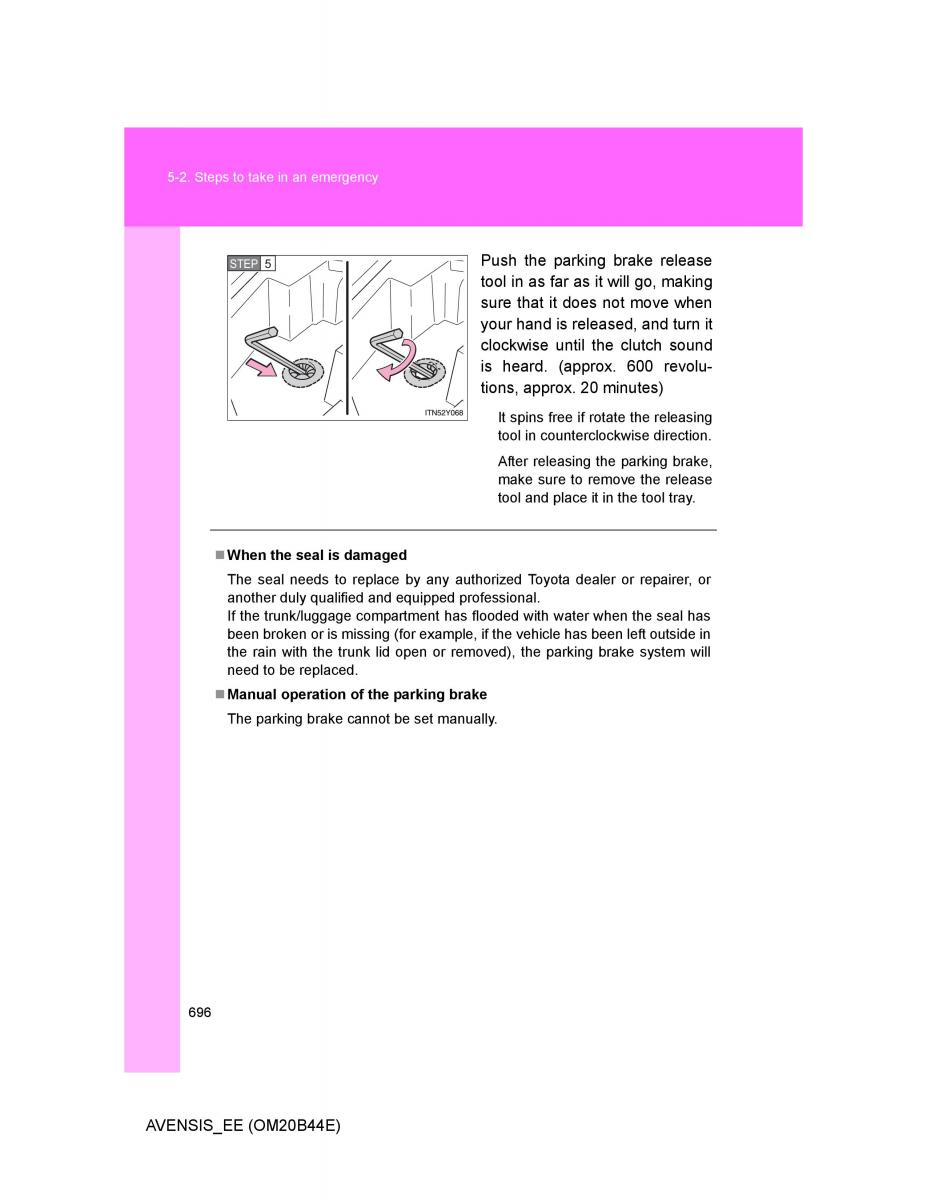

5-2. Steps to take in an emergency
STEP 5 Push the parking brake release
tool in as far as it will go, making
sure that it does not move when
your hand is released, and turn it
clockwise until the clutch sound
is heard. (approx. 600 revolu-
tions, approx. 20 minutes)
It spins free if rotate the releasing
tool in counterclockwise direction.
After releasing the parking brake,
make sure to remove the release
tool and place it in the tool tray.
When the seal is damaged
The seal needs to replace by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
If the trunk/luggage compartment has flooded with water when the seal has
been broken or is missing (for example, if the vehicle has been left outside in
the rain with the trunk lid open or removed), the parking brake system will
need to be replaced.
Manual operation of the parking brake
The parking brake cannot be set manually.
696
AVENSIS_EE (OM20B44E)
