text version of content this owner's manual page from owners manual to the vehicle Toyota CH-R, year of production 2016:

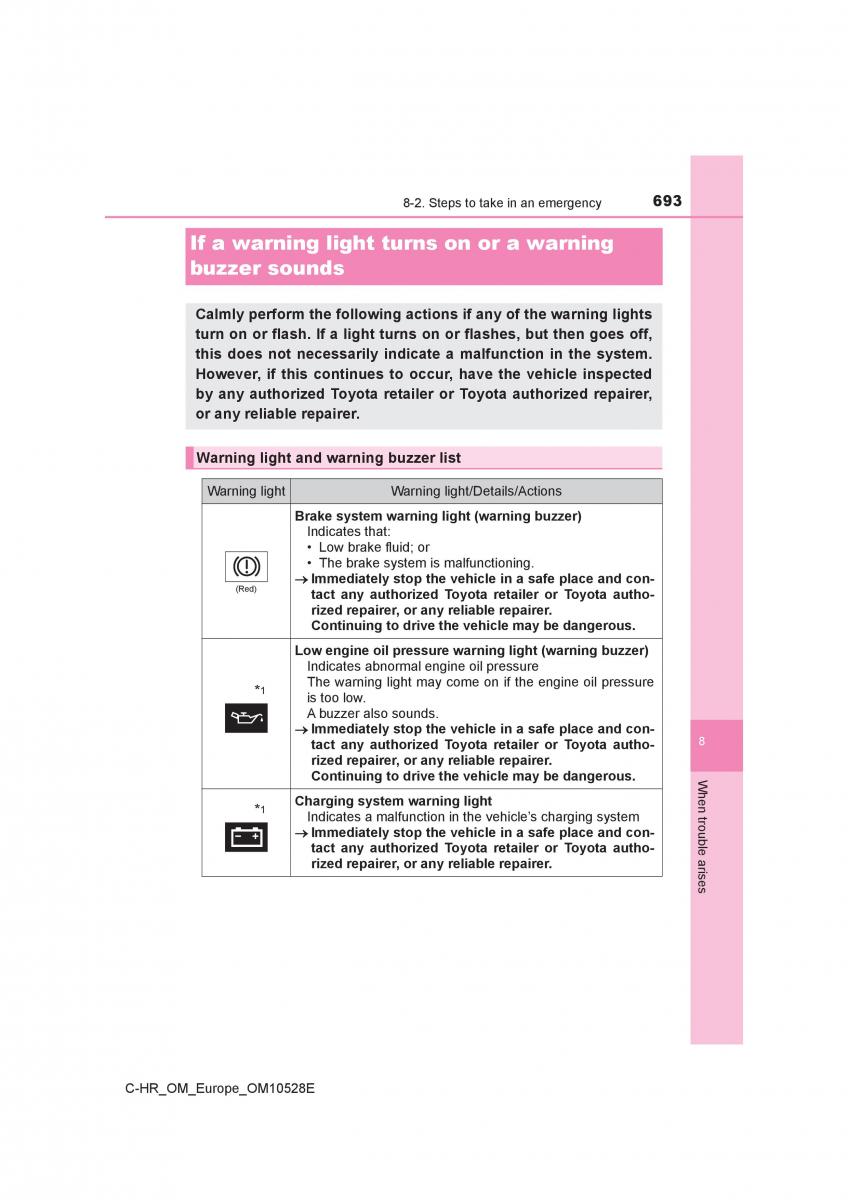

8-2. Steps to take in an emergency 693 If a warning light turns on or a warning buzzer sounds Calmly perform the following actions if any of the warning lights turn on or flash. If a light turns on or flashes, but then goes off, this does not necessarily indicate a malfunction in the system. However, if this continues to occur, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer. Warning light and warning buzzer list Warning light Warning light/Details/Actions Brake system warning light (warning buzzer) Indicates that: Low brake fluid; or The brake system is malfunctioning. (Red) Immediately stop the vehicle in a safe place and con- tact any authorized Toyota retailer or Toyota autho- rized repairer, or any reliable repairer. Continuing to drive the vehicle may be dangerous. Low engine oil pressure warning light (warning buzzer) Indicates abnormal engine oil pressure *1 The warning light may come on if the engine oil pressure is too low. A buzzer also sounds. Immediately stop the vehicle in a safe place and con- 8 tact any authorized Toyota retailer or Toyota autho- rized repairer, or any reliable repairer. Continuing to drive the vehicle may be dangerous. W 1 Charging system warning light hen * Indicates a malfunction in the vehicle’s charging system trou Immediately stop the vehicle in a safe place and con- bl tact any authorized Toyota retailer or Toyota autho- e ari rized repairer, or any reliable repairer. s e s C-HR_OM_Europe_OM10528E
