owners manual Skoda Superb

owners manual Skoda Superb - year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 - Skoda Superb I 1 owners manual EN

Document: pdf (25.49 MB) 259 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2001 - 2008:

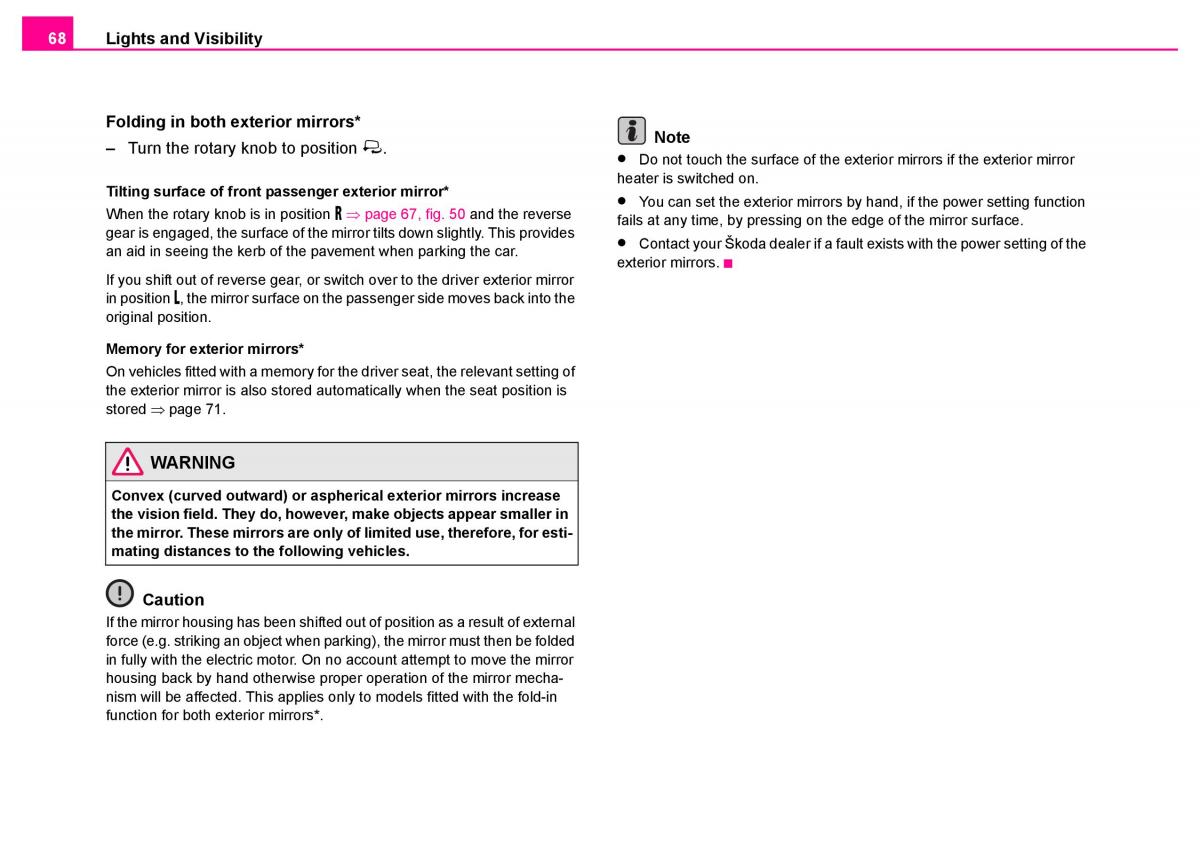

68 Lights and Visibility Folding in both exterior mirrors* Note – Turn the rotary knob to position . • Do not touch the surface of the exterior mirrors if the exterior mirror Tilting surface of front passenger exterior mirror*heater is switched on. When the rotary knob is in position  ⇒ page 67, fig. 50 and the reverse • You can set the exterior mirrors by hand, if the power setting function gear is engaged, the surface of the mirror tilts down slightly. This provides fails at any time, by pressing on the edge of the mirror surface. an aid in seeing the kerb of the pavement when parking the car.• Contact your Škoda dealer if a fault exists with the power setting of the exterior mirrors. If you shift out of reverse gear, or switch over to the driver exterior mirror in position , the mirror surface on the passenger side moves back into the original position. Memory for exterior mirrors* On vehicles fitted with a memory for the driver seat, the relevant setting of the exterior mirror is also stored automatically when the seat position is stored ⇒ page 71. WARNING Convex (curved outward) or aspherical exterior mirrors increase the vision field. They do, however, make objects appear smaller in the mirror. These mirrors are only of limited use, therefore, for esti- mating distances to the following vehicles. Caution If the mirror housing has been shifted out of position as a result of external force (e.g. striking an object when parking), the mirror must then be folded in fully with the electric motor. On no account attempt to move the mirror housing back by hand otherwise proper operation of the mirror mecha- nism will be affected. This applies only to models fitted with the fold-in function for both exterior mirrors*.
