text version of content this owner's manual page from owners manual to the vehicle Skoda Fabia, year of production 1999 - 2008:

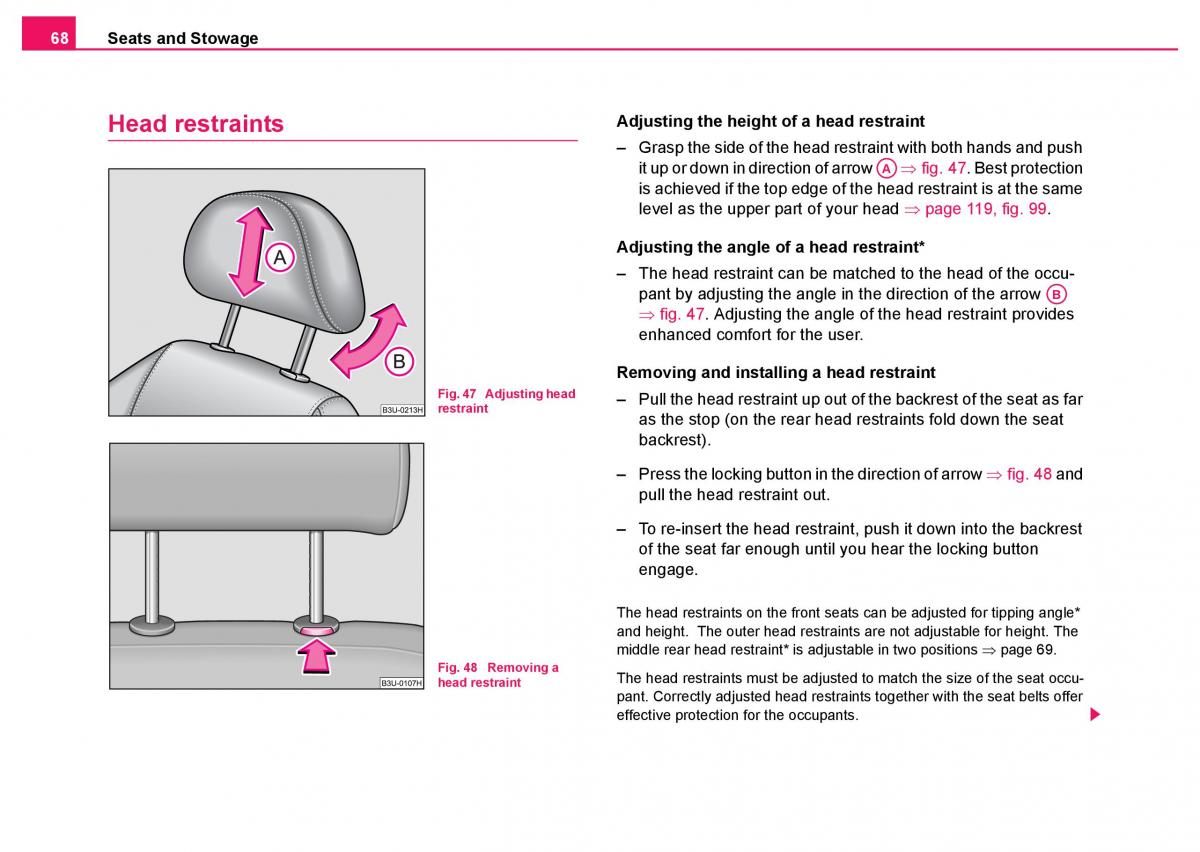

68 Seats and Stowage Head restraints Adjusting the height of a head restraint – Grasp the side of the head restraint with both hands and push it up or down in direction of arrow A ⇒fig. 47. Best protection A is achieved if the top edge of the head restraint is at the same level as the upper part of your head ⇒ page 119, fig. 99. Adjusting the angle of a head restraint* – The head restraint can be matched to the head of the occu- pant by adjusting the angle in the direction of the arrow B A ⇒fig. 47. Adjusting the angle of the head restraint provides enhanced comfort for the user. Removing and installing a head restraint Fig. 47 Adjusting head – Pull the head restraint up out of the backrest of the seat as far restraint as the stop (on the rear head restraints fold down the seat backrest). – Press the locking button in the direction of arrow ⇒fig. 48 and pull the head restraint out. – To re-insert the head restraint, push it down into the backrest of the seat far enough until you hear the locking button engage. The head restraints on the front seats can be adjusted for tipping angle* and height. The outer head restraints are not adjustable for height. The middle rear head restraint* is adjustable in two positions ⇒ page 69. Fig. 48 Removing a The head restraints must be adjusted to match the size of the seat occu- head restraint pant. Correctly adjusted head restraints together with the seat belts offer effective protection for the occupants.
