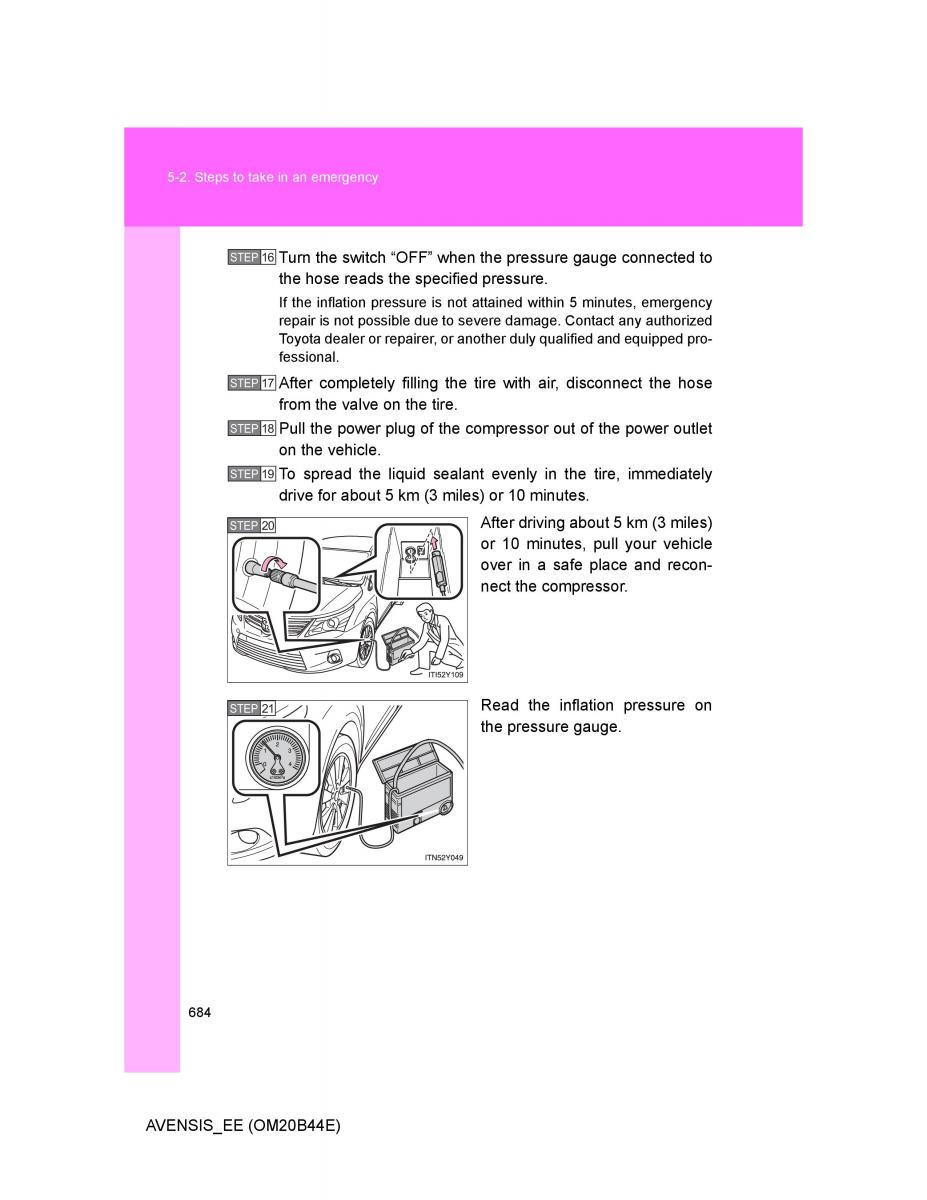

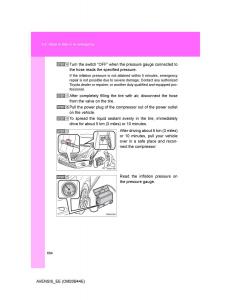

5-2. Steps to take in an emergency
STEP16 Turn the switch “OFF” when the pressure gauge connected to
the hose reads the specified pressure.
If the inflation pressure is not attained within 5 minutes, emergency
repair is not possible due to severe damage. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
STEP17 After completely filling the tire with airsconnect the hose, di
from the valve on the tire.
STEP18 Pull the power plug of the compressor out of the power outlet
on the vehicle.
STEP19 To spread the liquid sealant evenly in the tire, immediately
drive for about 5 km (3 miles) or 10 minutes.
STEP 20 After driving about 5 km (3 miles)
or 10 minutes, pull your vehicle
over in a safe place and recon-
nect the compressor.
STEP 21 Read the inflation pressure on
the pressure gauge.
