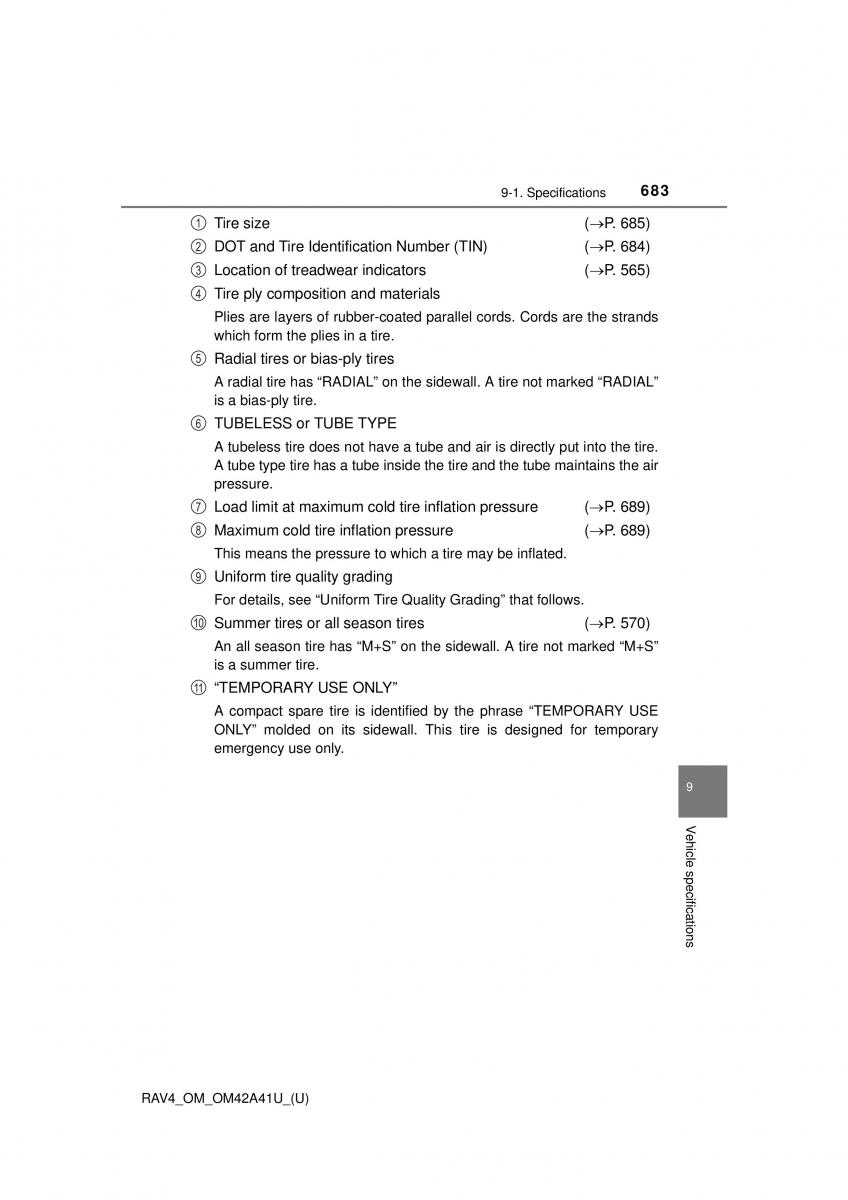

9-1. Specifications683 1 Tire size (P. 685) 2 DOT and Tire Identification Number (TIN) (P. 684) 3 Location of treadwear indicators (P. 565) 4 Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire. 5 Radial tires or bias-ply tires A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire. 6 TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure. 7 Load limit at maximum cold tire inflation pressure (P. 689) 8 Maximum cold tire inflation pressure (P. 689) This means the pressure to which a tire may be inflated. 9 Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows. 10 Summer tires or all season tires (P. 570) An all season tire has “M+S” on thesidewall. A tire not marked “M+S” is a summer tire. 11“TEMPORARY USE ONLY” A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded on its sidewall. This tire is designed for temporary emergency use only. 9 Vehi cl e specificatio ns RAV4_OM_OM42A41U_(U)
