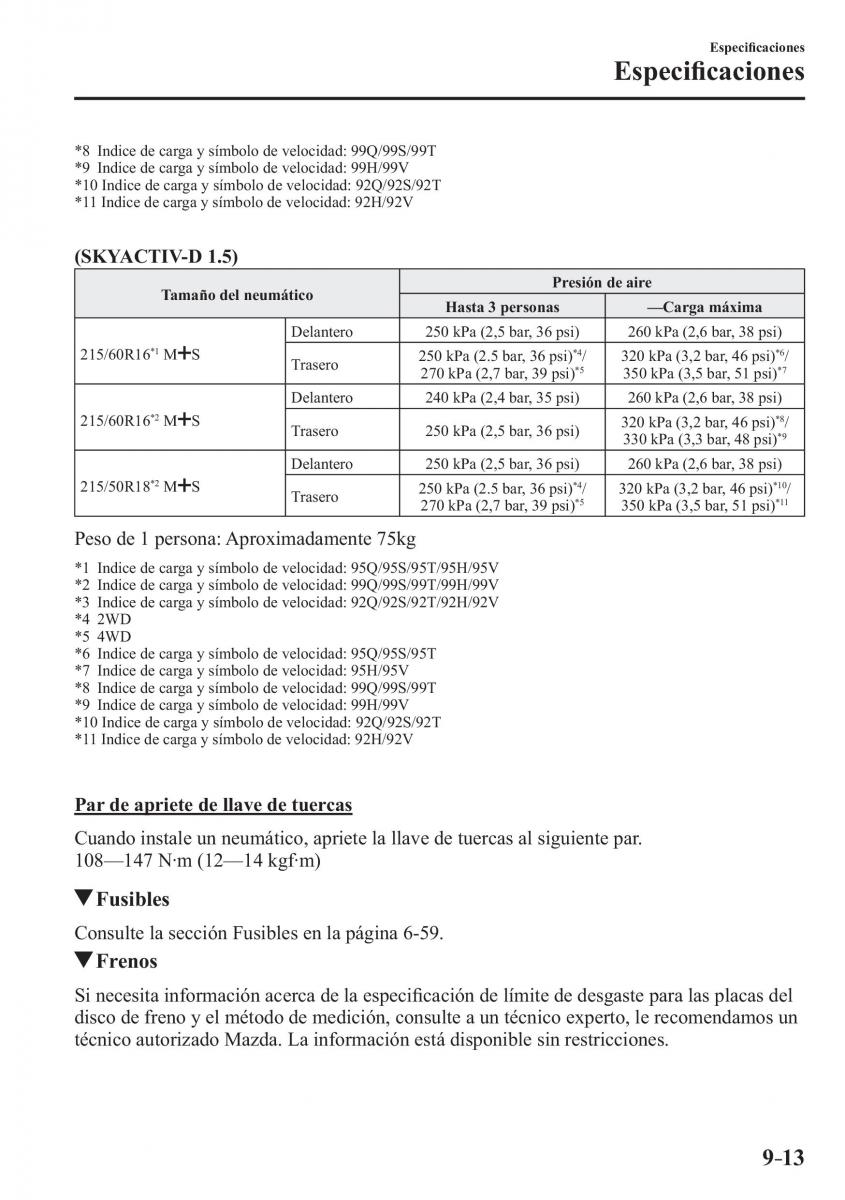

Especifi caciones
Especifi caciones
*8 Indice de carga y símbolo de velocidad: 99Q/99S/99T
*9 Indice de carga y símbolo de velocidad: 99H/99V
*10 Indice de carga y símbolo de velocidad: 92Q/92S/92T
*1 1 Indice de carga y símbolo de velocidad: 92H/92V
(SKYACTIV-D 1.5)
Tamaño del neumático Presión de aire
Hasta 3 personas —Carga máxima
Delantero 250 kPa (2,5 bar, 36 psi) 260 kPa (2,6 bar, 38 psi)
*1 *4 *6
215/60R16 M S Trasero 250 kPa (2.5 bar, 36 psi) / 320 kPa (3,2 bar, 46 psi) /
*5 *7
270 kPa (2,7 bar , 39 psi) 350 kPa (3,5 bar , 51 psi)
Delantero 240 kPa (2,4 bar, 35 psi) 260 kPa (2,6 bar, 38 psi)
*2 *8
215/60R16 M S Trasero 250 kPa (2,5 bar, 36 psi) 320 kPa (3,2 bar, 46 psi) /
*9
330 kPa (3,3 bar , 48 psi)
Delantero 250 kPa (2,5 bar, 36 psi) 260 kPa (2,6 bar, 38 psi)
*2 *4 *10
215/50R18 M S Trasero 250 kPa (2.5 bar, 36 psi) / 320 kPa (3,2 bar, 46 psi) /
*5 *11
270 kPa (2,7 bar , 39 psi) 350 kPa (3,5 bar , 51 psi)
de 1 persona: Peso Aproximadamente 75kg
*1 Indice de carga y símbolo de velocidad: 95Q/95S/95T/95H/95V
*2 Indice de carga y símbolo de velocidad: 99Q/99S/99T/99H/99V
*3 Indice de carga y símbolo de velocidad: 92Q/92S/92T/92H/92V
2WD *4
4WD *5
*6 Indice de carga y símbolo de velocidad: 95Q/95S/95T
*7 Indice de carga y símbolo de velocidad: 95H/95V
*8 Indice de carga y símbolo de velocidad: 99Q/99S/99T
*9 Indice de carga y símbolo de velocidad: 99H/99V
*10 Indice de carga y símbolo de velocidad: 92Q/92S/92T
*1 1 Indice de carga y símbolo de velocidad: 92H/92V
Par de apriete de llave de tuercas
Cuando instale un neumático, apriete la llave de tuercas al siguiente par .
108—147 N·m (12—14 kgf·m)
Fusibles
Consulte la sección Fusibles en la página 6-59 .
Frenos
Si necesita información acerca de la especifi cación de límite de desgaste para las placas del
disco de freno y el método de medición, consulte a un técnico experto, le recomendamos un
técnico autorizado Mazda. La información está disponible sin restricciones.
9–13
