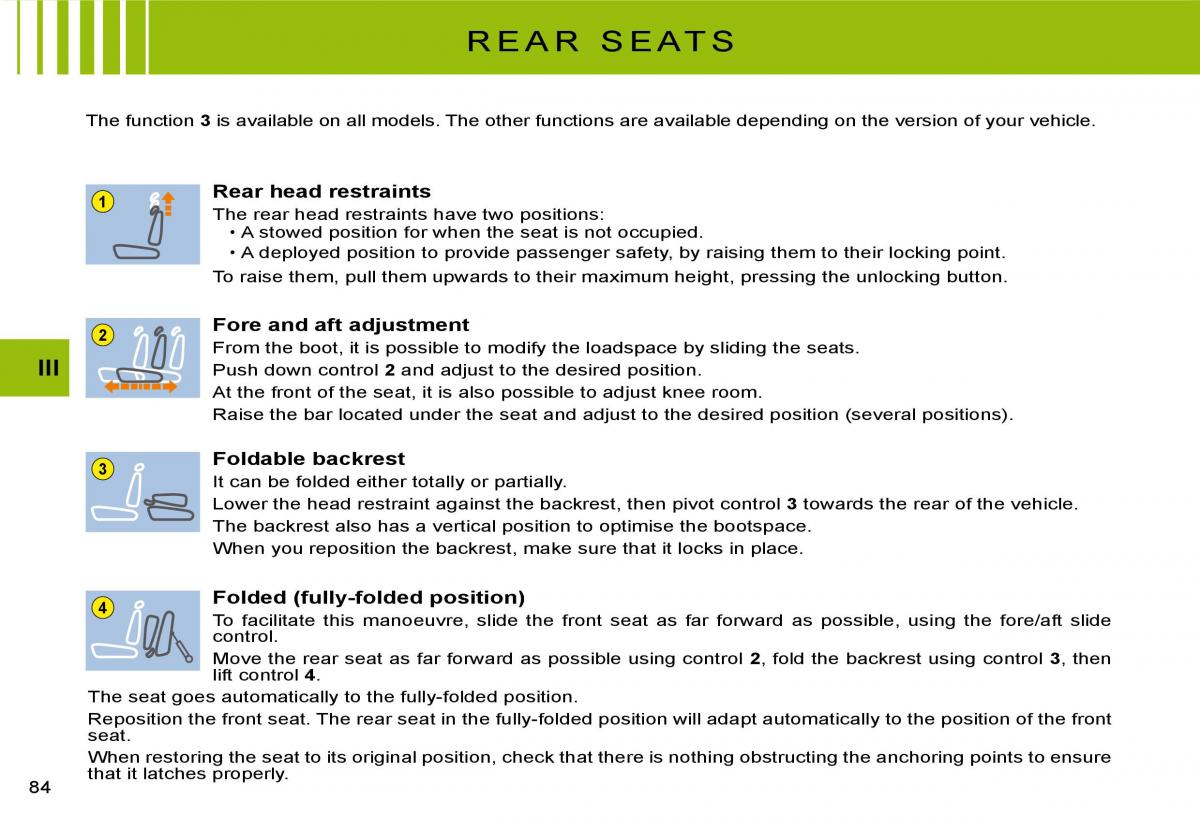

REAR SEATS
The function 3 is available on all models. The other functions are available depending on the version of your vehicle.
Rear head restraints
1 The rear head restraints have two positions:
A stowed position for when the seat is not occupied.
A deployed position to provide passenger safety, by raising them to their locking point.
To raise them, pull them upwards to their maximum height, pressing the unlocking button.
2 Fore and aft adjustment
From the boot, it is possible to modify the loadspace by sliding the seats.
III Push down control 2 and adjust to the desired position.
At the front of the seat, it is also possible to adjust knee room.
Raise the bar located under the seat and adjust to the desired position (several positions).
3 Foldable backrest
It can be folded either totally or partially.
Lower the head restraint against the backrest, then pivot control 3 towards the rear of the vehicle.
The backrest also has a vertical position to optimise the bootspace.
When you reposition the backrest, make sure that it locks in place.
4 Folded (fully-folded position)
To facilitate this manoeuvre, slide the front seat as far forward as possible, using the fore/aft slide
control.
Move the rear seat as far forward as possible using control 2, fold the backrest using control 3, then
lift control 4.
The seat goes automatically to the fully-folded position.
Reposition the front seat. The rear seat in the fully-folded position will adapt automatically to the position of the front
seat.
When restoring the seat to its original position, check that there is nothing obstructing the anchoring points to ensure
84 that it latches properly.
