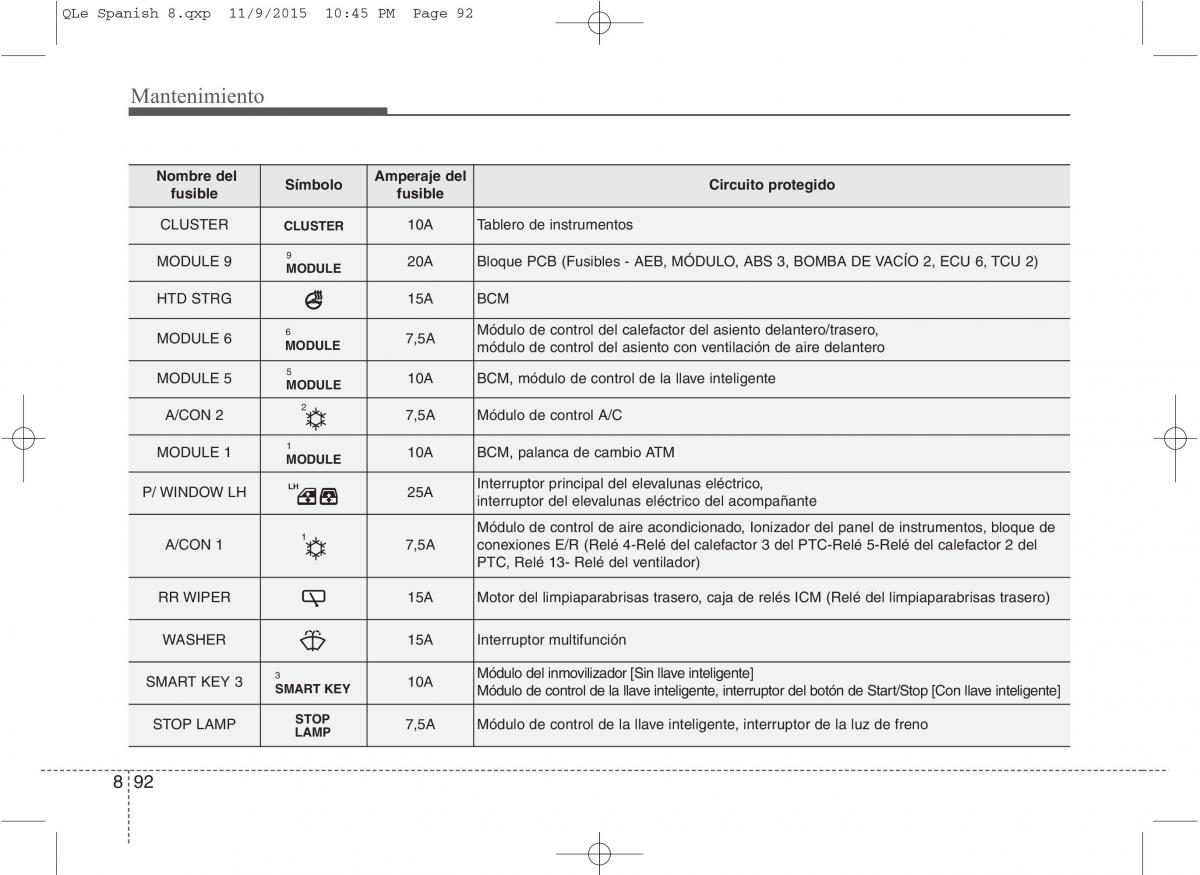

QLe Spanish 8.qxp 11/9/2015 10:45 PM Page 92
Mantenimiento
Nombre del Símbolo Amperaje del Circuito protegido
fusible fusible
CLUSTER CLUSTER 10A Tablero de instrumentos
MODULE 9 9 20A Bloque PCB (Fusibles - AEB, MÓDULO, ABS 3, BOMBA DE VACÍO 2, ECU 6, TCU 2)
MODULE
HTD STRG 15A BCM
MODULE 6 6 7,5A Módulo de control del calefactor del asiento delantero/trasero,
MODULE módulo de control del asiento con ventilación de aire delantero
MODULE 5 5 10A BCM, módulo de control de la llave inteligente
MODULE
A/CON 2 2 7,5A Módulo de control A/C
MODULE 1 1 10A BCM, palanca de cambio ATM
MODULE
P/ WINDOW LH LH 25A Interruptor principal del elevalunas eléctrico,
interruptor del elevalunas eléctrico del acompañante
Módulo de control de aire acondicionado, Ionizador del panel de instrumentos, bloque de
A/CON 1 1 7,5A conexiones E/R (Relé 4-Relé del calefactor 3 del PTC-Relé 5-Relé del calefactor 2 del
PTC, Relé 13- Relé del ventilador)
RR WIPER 15A Motor del limpiaparabrisas trasero, caja de relés ICM (Relé del limpiaparabrisas trasero)
WASHER 15A Interruptor multifunción
SMART KEY 3 3 10A Módulo del inmovilizador [Sin llave inteligente]
SMART KEY Módulo de control de la llave inteligente, interruptor del botón de Start/Stop [Con llave inteligente]
STOP LAMP STOP 7,5A Módulo de control de la llave inteligente, interruptor de la luz de freno
LAMP
8 92
