owners manual Mazda MX-5
owners manual Mazda MX-5 - year of production: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 - Mazda MX 5 Miata NC III 3 owners manual EN
Document: pdf (8.17 MB) 446 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

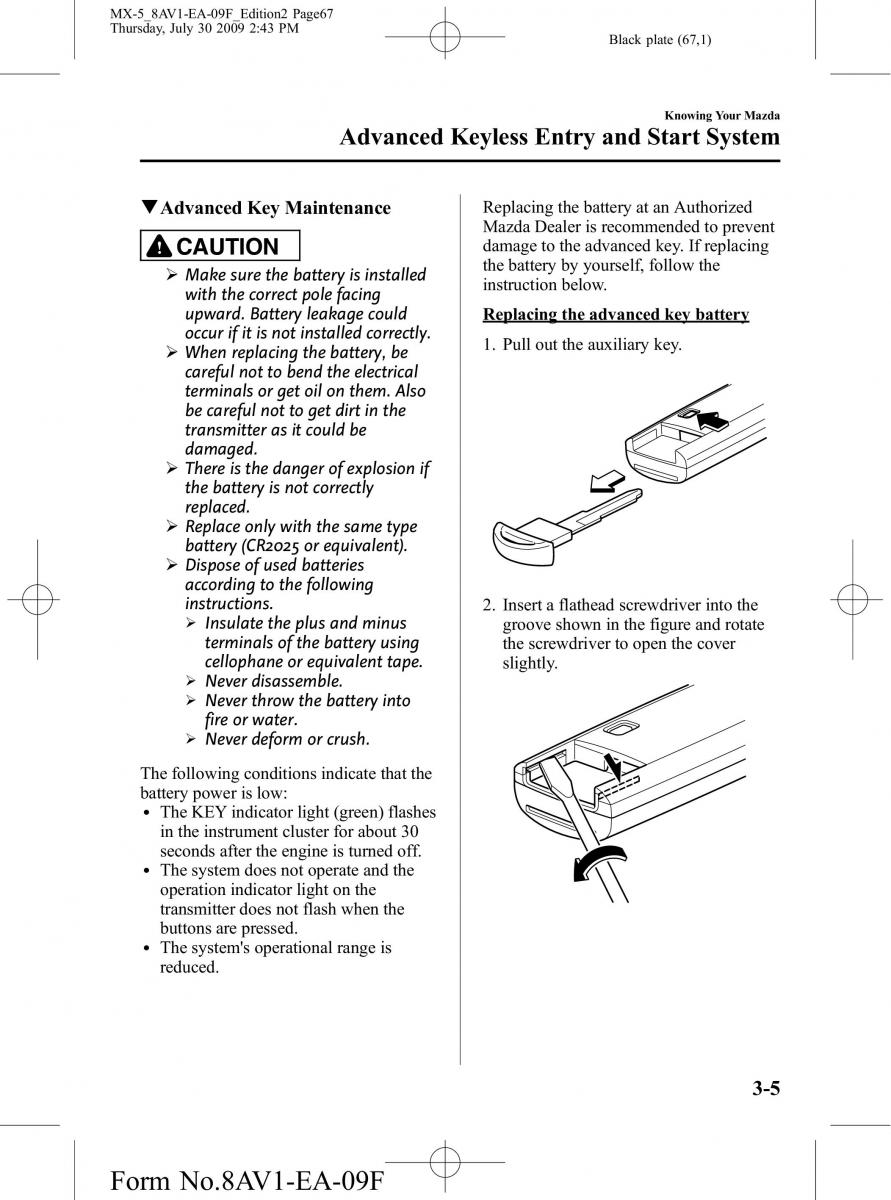

MX-5_8AV1-EA-09F_Edition2 Page67
Thursday, July 30 2009 2:43 PM
Black plate (67,1)
KnowingYourMazda
AdvancedKeylessEntryandStartSystem
qAdvancedKeyMaintenance Replacing the battery at an Authorized
MazdaDealer is recommended to prevent
CAUTION damagetothe advanced key. If replacing
ØMakesurethebatteryisinstalled the battery by yourself, follow the
with the correct pole facing instruction below.
upward. Battery leakage could Replacing the advanced key battery
occur if it is not installed correctly. 1. Pull out the auxiliary key.
ØWhenreplacingthebattery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
ØThereisthedangerofexplosionif
the battery is not correctly
replaced.
ØReplaceonlywiththesametype
battery (CR2025 or equivalent).
ØDisposeofusedbatteries
according to the following
instructions. 2. Insert a flathead screwdriver into the
Ø Insulate the plus and minus groove shown in the figure and rotate
terminals of the battery using the screwdriver to open the cover
cellophane or equivalent tape. slightly.
Ø Never disassemble.
Ø Never throw the battery into
fire or water.
Ø Never deform or crush.
Thefollowing conditions indicate that the
battery power is low:
l The KEYindicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is turned off.
l The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
l The system's operational range is
reduced.
3-5
Form No.8AV1-EA-09F
