text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2017:

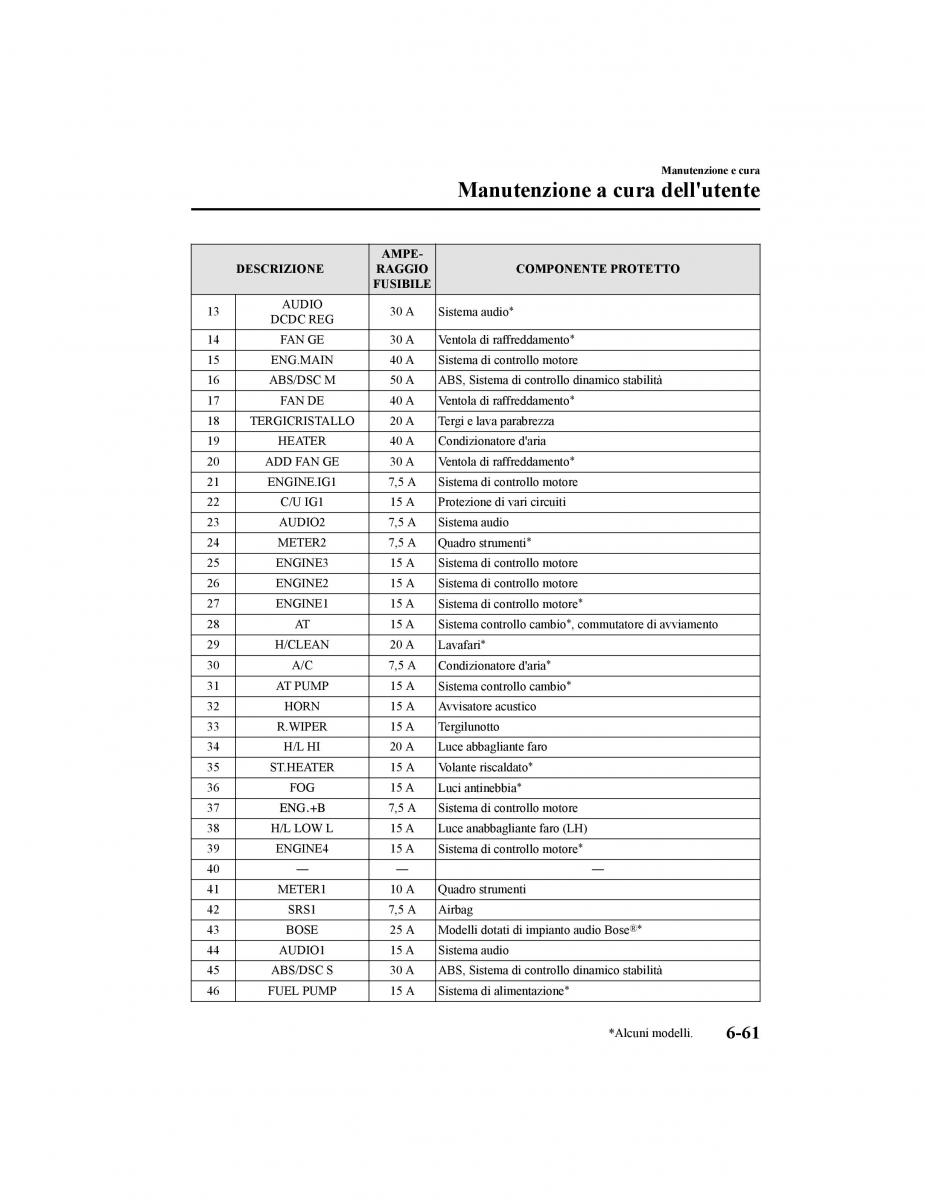

Manutenzione e cura Manutenzione a cura dell'utente AMPE- DESCRIZIONE RAGGIO COMPONENTE PROTETTO FUSIBILE 13 AUDIO 30 A * DCDC REG Sistema audio 14 FAN GE 30 A * Ventola di raffreddamento 15 ENG.MAIN 40 A Sistema di controllo motore 16 ABS/DSC M 50 A ABS, Sistema di controllo dinamico stabilità 17 FAN DE 40 A * Ventola di raffreddamento 18 TERGICRISTALLO 20 A Tergi e lava parabrezza 19 HEATER 40 A Condizionatore d'aria 20 ADD FAN GE 30 A * Ventola di raffreddamento 21 ENGINE.IG1 7,5 A Sistema di controllo motore 22 C/U IG1 15 A Protezione di vari circuiti 23 AUDIO2 7,5 A Sistema audio 24 METER2 7,5 A Quadro strumenti* 25 ENGINE3 15 A Sistema di controllo motore 26 ENGINE2 15 A Sistema di controllo motore 27 ENGINE1 15 A * Sistema di controllo motore 28 AT 15 A * Sistema controllo cambio , commutatore di avviamento 29 H/CLEAN 20 A * Lavafari 30 A/C 7,5 A * Condizionatore d'aria 31 AT PUMP 15 A * Sistema controllo cambio 32 HORN 15 A Avvisatore acustico 33 R.WIPER 15 A Tergilunotto 34 H/L HI 20 A Luce abbagliante faro 35 ST.HEATER 15 A * Volante riscaldato 36 FOG 15 A * Luci antinebbia 37 7,5 A Sistema di controllo motore 38 H/L LOW L 15 A Luce anabbagliante faro (LH) 39 ENGINE4 15 A * Sistema di controllo motore 40 ―― ― 41 METER1 10 A Quadro strumenti 42 SRS1 7,5 A Airbag 43 BOSE 25 A ®* Modelli dotati di impianto audio Bose 44 AUDIO1 15 A Sistema audio 45 ABS/DSC S 30 A ABS, Sistema di controllo dinamico stabilità 46 FUEL PUMP 15 A Sistema di alimentazione* *Alcuni modelli. 6-61 2017-7-17 13:21:27 Form No. CX-5 8FY4-EE-17E-IT+L_Edition1.pdf
