Maintenance

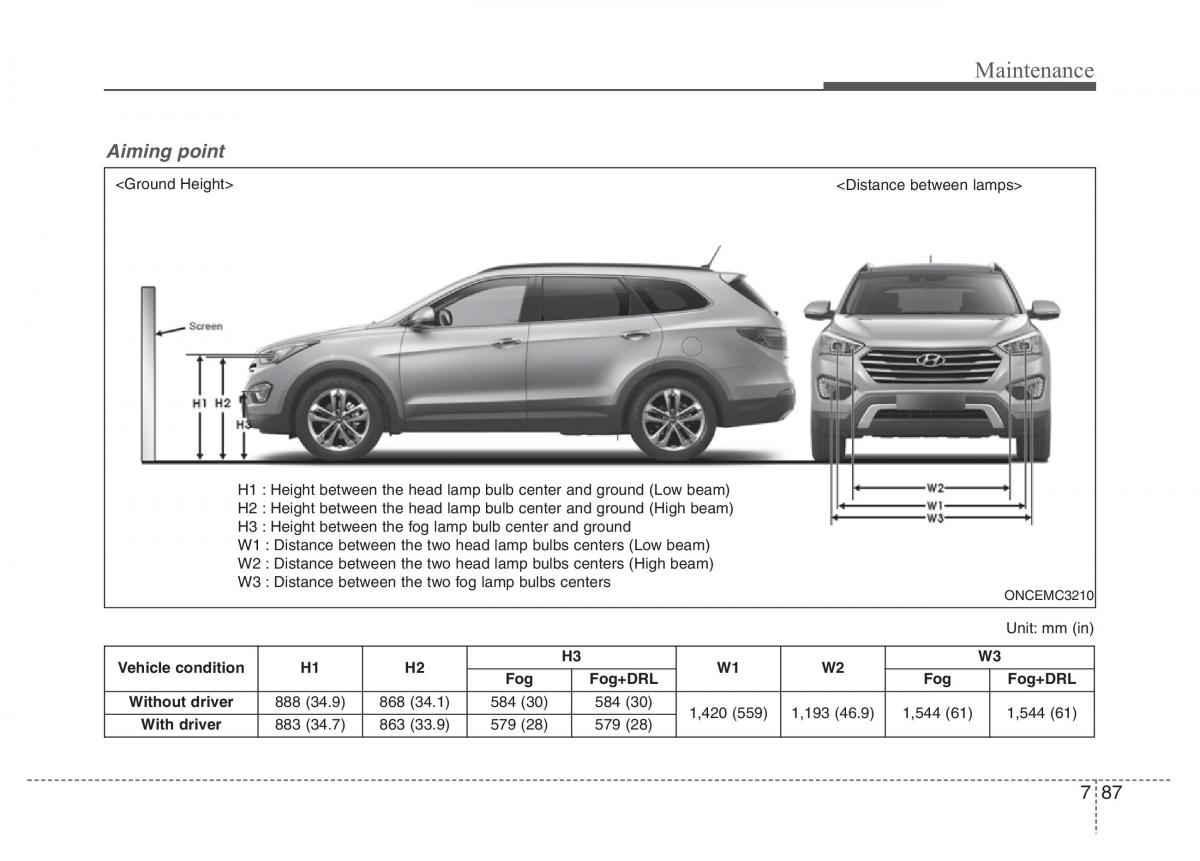

Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 :Distance between the two head lamp bulbs centers (Low beam)
W2 :Distance between the two head lamp bulbs centers (High beam)
W3 :Distance between the two fog lamp bulbs centers
ONCEMC3210
Unit: mm (in)
Vehicle condition H1 H2 H3 W1 W2 W3
Fog Fog+DRL Fog Fog+DRL
Without driver888 (34.9)868 (34.1)584 (30) 584 (30)1,420 (559)1,193 (46.9)1,544 (61)1,544 (61)
With driver 883 (34.7)863 (33.9)579 (28) 579 (28)
787
