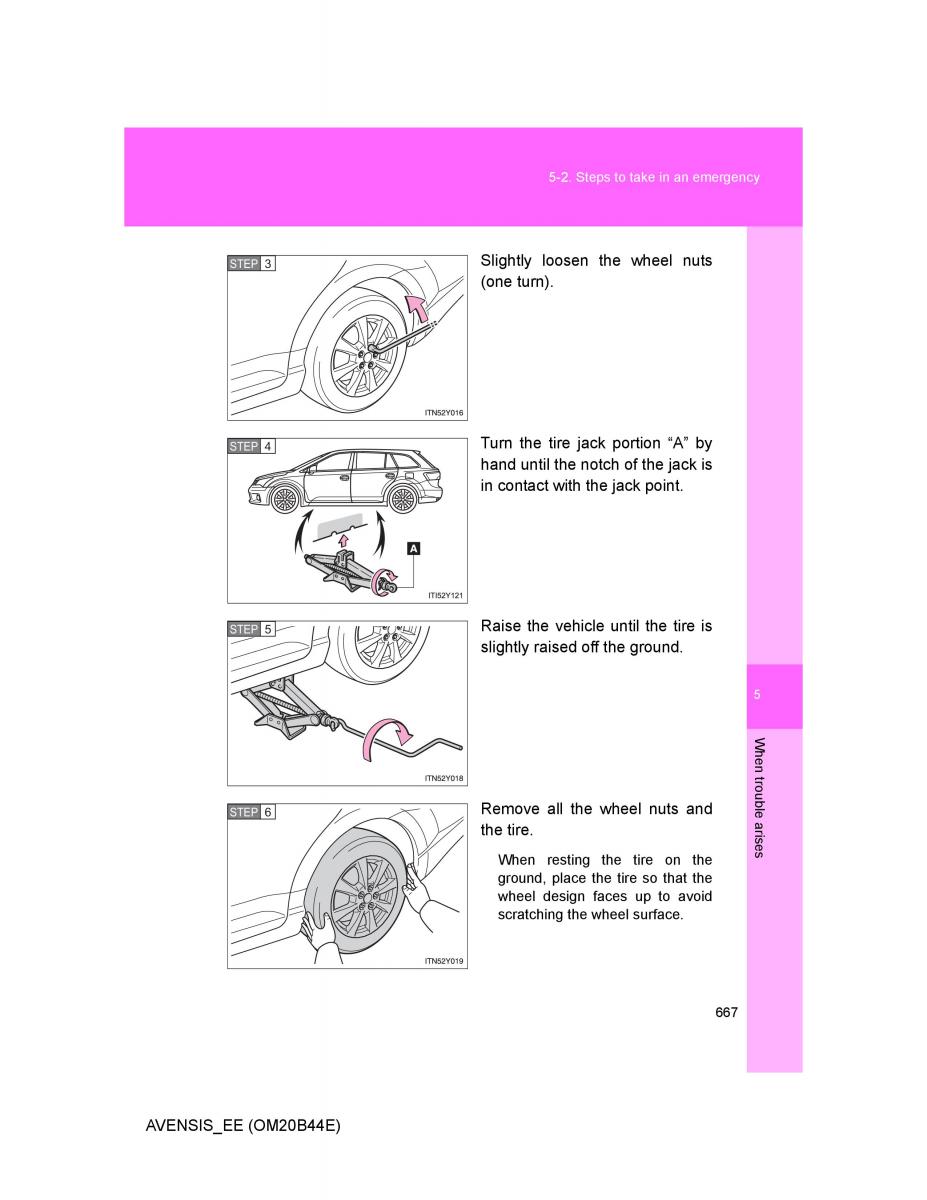

5-2. Steps to take in an emergency
STEP 3 Slightly loosen the wheel nuts
(one turn).
STEP 4 Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
STEP 5 Raise the vehicle until the tire is
slightly raised off the ground.
5
Wh
en tro
STEP 6 Remove all the wheel nuts and uble
a
r
the tire. ises
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
667
AVENSIS_EE (OM20B44E)
