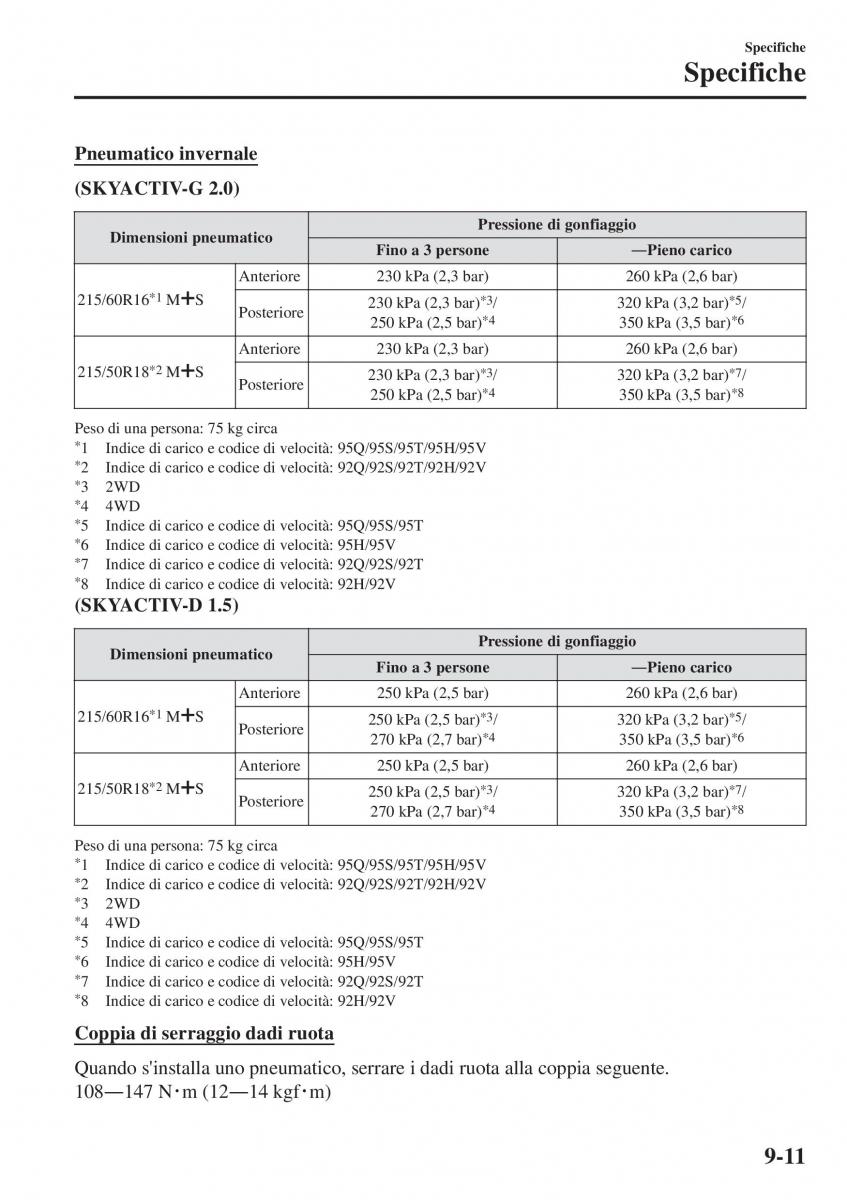

Specifiche
Specifiche
Pneumatico invernale
(SKYACTIV-G 2.0)
Dimensioni pneumatico Pressione di gonfiaggio
Fino a 3 persone ʊ Pieno carico
Anteriore 230 kPa (2,3 bar) 260 kPa (2,6 bar)
*1 *3 *5
215/60R16 M S Posteriore 230 kPa (2,3 bar) / 320 kPa (3,2 bar) /
*4 *6
250 kPa (2,5 bar) 350 kPa (3,5 bar)
Anteriore 230 kPa (2,3 bar) 260 kPa (2,6 bar)
*2 *3 *7
215/50R18 M S Posteriore 230 kPa (2,3 bar) / 320 kPa (3,2 bar) /
*4 *8
250 kPa (2,5 bar) 350 kPa (3,5 bar)
Peso di una persona: 75 kg circa
*1 Indice di carico e codice di velocità: 95Q/95S/95T/95H/95V
*2 Indice di carico e codice di velocità: 92Q/92S/92T/92H/92V
*32WD
*44WD
*5 Indice di carico e codice di velocità: 95Q/95S/95T
*6 Indice di carico e codice di velocità: 95H/95V
*7 Indice di carico e codice di velocità: 92Q/92S/92T
*8 Indice di carico e codice di velocità: 92H/92V
(SKYACTIV-D 1.5)
Dimensioni pneumatico Pressione di gonfiaggio
Fino a 3 persone ʊ Pieno carico
Anteriore 250 kPa (2,5 bar) 260 kPa (2,6 bar)
*1 *3 *5
215/60R16 M S Posteriore 250 kPa (2,5 bar) / 320 kPa (3,2 bar) /
*4 *6
270 kPa (2,7 bar) 350 kPa (3,5 bar)
Anteriore 250 kPa (2,5 bar) 260 kPa (2,6 bar)
*2 *3 *7
215/50R18 M S Posteriore 250 kPa (2,5 bar) / 320 kPa (3,2 bar) /
*4 *8
270 kPa (2,7 bar) 350 kPa (3,5 bar)
Peso di una persona: 75 kg circa
*1 Indice di carico e codice di velocità: 95Q/95S/95T/95H/95V
*2 Indice di carico e codice di velocità: 92Q/92S/92T/92H/92V
*32WD
*44WD
*5 Indice di carico e codice di velocità: 95Q/95S/95T
*6 Indice di carico e codice di velocità: 95H/95V
*7 Indice di carico e codice di velocità: 92Q/92S/92T
*8 Indice di carico e codice di velocità: 92H/92V
Coppia di serraggio dadi ruota
Quando s'installa uno pneumatico, serrare i dadi ruota alla coppia seguente.
108ʊ 147 N㺃 m (12ʊ 14 kgf㺃 m)
9-11
