text version of content this owner's manual page from owners manual to the vehicle KIA Sportage, year of production 2015:

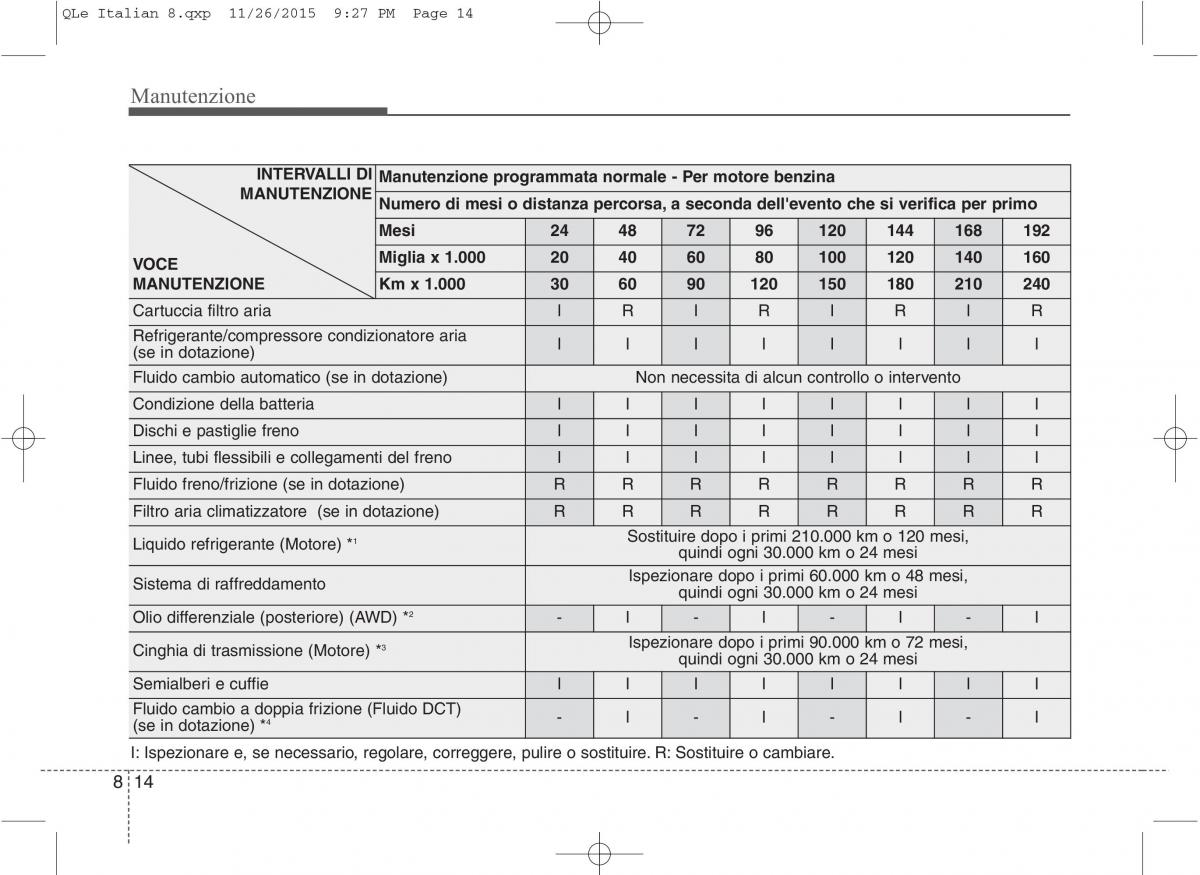

QLe Italian 8.qxp 11/26/2015 9:27 PM Page 14 Manutenzione INTERVALLI DI Manutenzione programmata normale - Per motore benzina MANUTENZIONE Numero di mesi o distanza percorsa,a seconda dell'evento che si verifica per primo Mesi 24 48 72 96 120 144 168 192 VOCE Miglia x 1.000 20 40 60 80 100 120 140 160 MANUTENZIONE Km x 1.000 30 60 90 120 150 180 210 240 Cartuccia filtro aria I R I R I R I R Refrigerante/compressore condizionatore aria I I I I I I I I (se in dotazione) Fluido cambio automatico (se in dotazione) Non necessita di alcun controllo o intervento Condizione della batteria I I I I I I I I Dischi e pastiglie freno I I I I I I I I Linee, tubi flessibili e collegamenti del freno I I I I I I I I Fluido freno/frizione (se in dotazione) R R R R R R R R Filtro aria climatizzatore (se in dotazione) R R R R R R R R 1 Sostituire dopo i primi 210.000 km o 120 mesi, Liquido refrigerante (Motore) * quindi ogni 30.000 km o 24 mesi Sistema di raffreddamento Ispezionare dopo i primi 60.000 km o 48 mesi, quindi ogni 30.000 km o 24 mesi 2 Olio differenziale (posteriore) (AWD) * - I - I - I - I 3 Ispezionare dopo i primi 90.000 km o 72 mesi, Cinghia di trasmissione (Motore) * quindi ogni 30.000 km o 24 mesi Semialberi e cuffie I I I I I I I I Fluido cambio a doppia frizione (Fluido DCT) - I - I - I - I 4 (se in dotazione) * I: Ispezionare e, se necessario, regolare, correggere, pulire o sostituire. R: Sostituire o cambiare. 8 14
