owners manual Ford Edge

all ratings: 0 average rating: 5

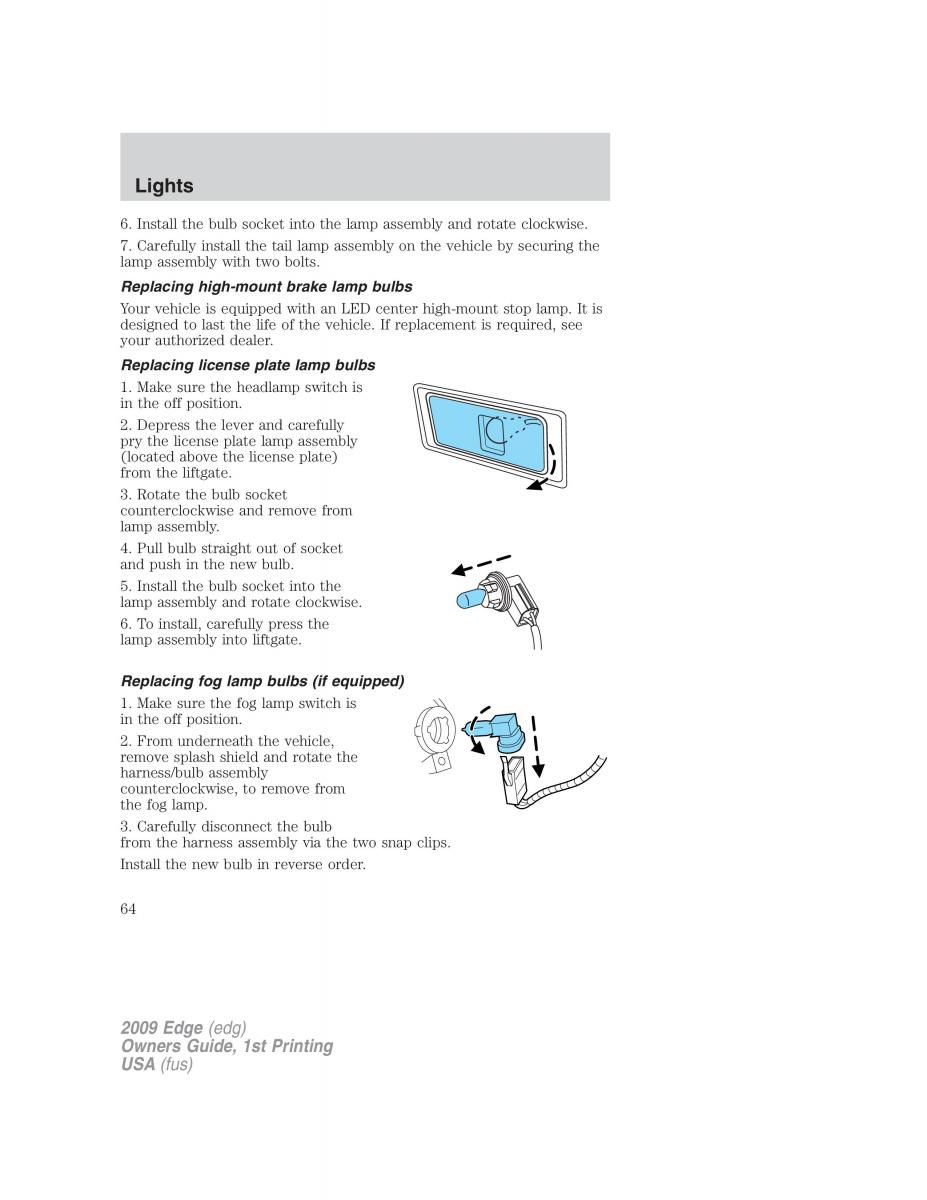

Lights 6. Install the bulb socket into the lamp assembly and rotate clockwise. 7. Carefully install the tail lamp assembly on the vehicle by securing the lamp assembly with two bolts. Replacing high-mount brake lamp bulbs Your vehicle is equipped with an LED center high-mount stop lamp. It is designed to last the life of the vehicle. If replacement is required, see your authorized dealer. Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the off position. 2. Depress the lever and carefully pry the license plate lamp assembly (located above the license plate) from the liftgate. 3. Rotate the bulb socket counterclockwise and remove from lamp assembly. 4. Pull bulb straight out of socket and push in the new bulb. 5. Install the bulb socket into the lamp assembly and rotate clockwise. 6. To install, carefully press the lamp assembly into liftgate. Replacing fog lamp bulbs (if equipped) 1. Make sure the fog lamp switch is in the off position. 2. From underneath the vehicle, remove splash shield and rotate the harness/bulb assembly counterclockwise, to remove from the fog lamp. 3. Carefully disconnect the bulb from the harness assembly via the two snap clips. Install the new bulb in reverse order. 64 2009 Edge (edg) Owners Guide, 1st Printing USA(fus)
