text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

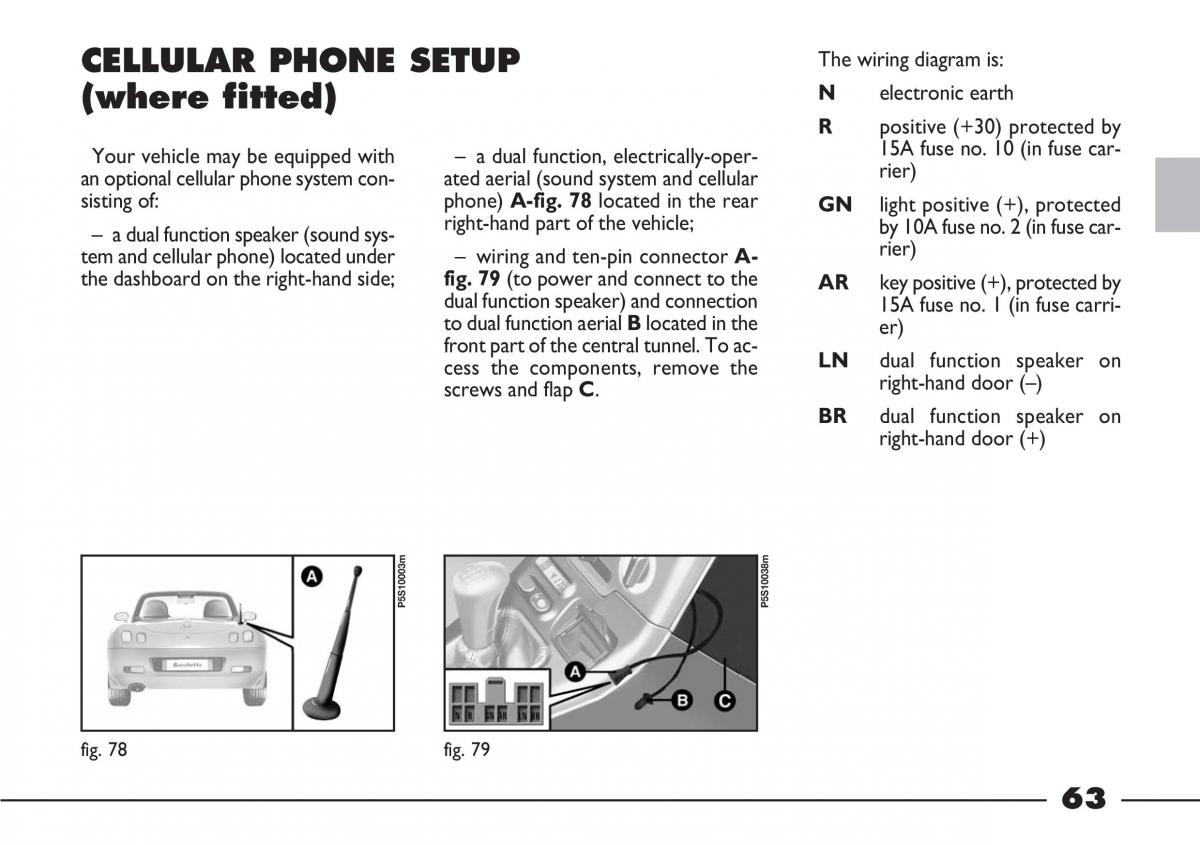

CELLULAR PHONE SETUP The wiring diagram is: (where fitted) N electronic earth R positive (+30) protected by Your vehicle may be equipped with – a dual function, electrically-oper- 15A fuse no. 10 (in fuse car- an optional cellular phone system con- ated aerial (sound system and cellular rier) sisting of: phone) A-fig. 78 located in the rear GN light positive (+), protected – a dual function speaker (sound sys- right-hand part of the vehicle; by 10A fuse no. 2 (in fuse car- tem and cellular phone) located under – wiring and ten-pin connector A- rier) the dashboard on the right-hand side; fig. 79 (to power and connect to the AR key positive (+), protected by dual function speaker) and connection 15A fuse no. 1 (in fuse carri- to dual function aerial Blocated in the er) front part of the central tunnel. To ac- LN dual function speaker on cess the components, remove the screws and flap C. right-hand door (–) BR dual function speaker on right-hand door (+) P5S10003m P5S10038m fig. 78 fig. 79 63
