owners manual Seat Altea

owners manual Seat Altea - year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - Seat Altea owners manual EN

Document: pdf (4.4 MB) 302 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

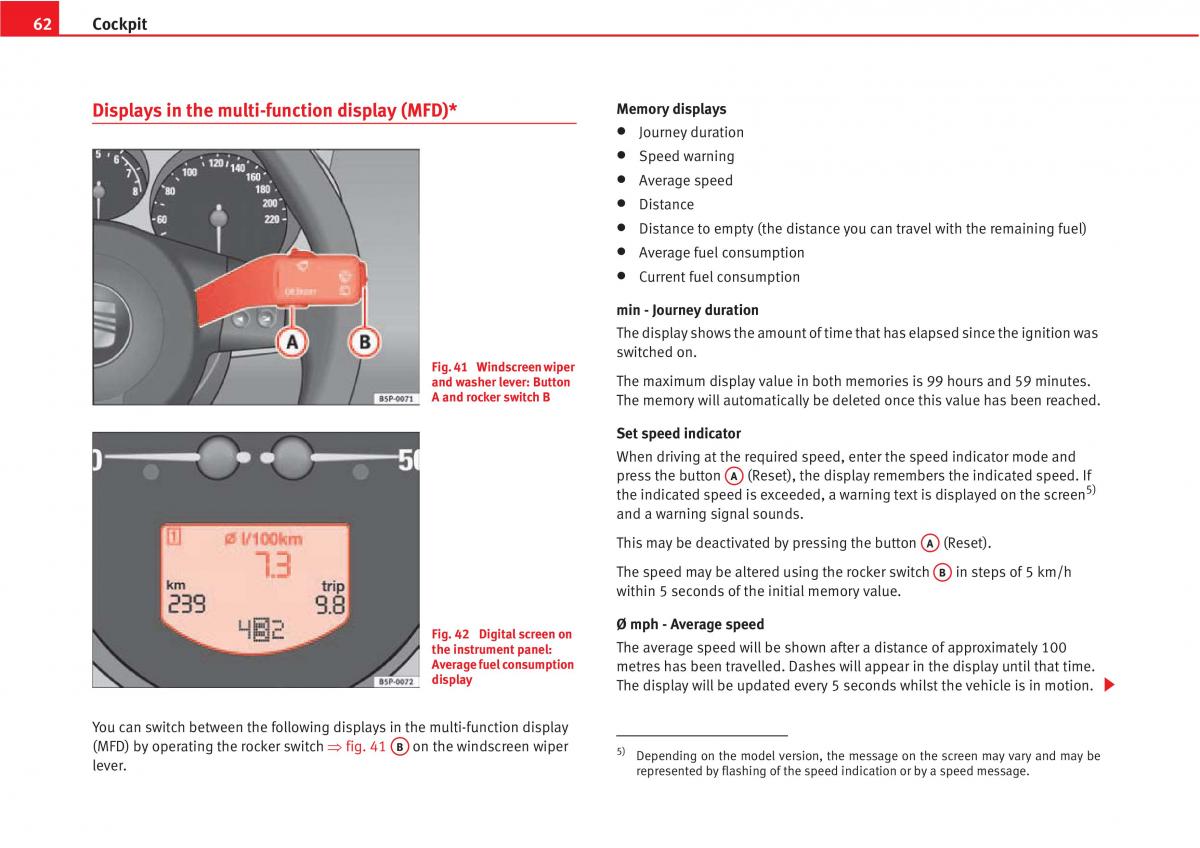

62 Cockpit Displays in the multi-function display (MFD)* Memory displays • Journey duration • Speed warning • Average speed • Distance • Distance to empty (the distance you can travel with the remaining fuel) • Average fuel consumption • Current fuel consumption min - Journey duration The display shows the amount of time that has elapsed since the ignition was switched on. Fig. 41 Windscreen wiper and washer lever: Button The maximum display value in both memories is 99 hours and 59 minutes. A and rocker switch B The memory will automatically be deleted once this value has been reached. Set speed indicator When driving at the required speed, enter the speed indicator mode and press the button A (Reset), the display remembers the indicated speed. If A the indicated speed is exceeded, a warning text is displayed on the screen 5) and a warning signal sounds. This may be deactivated by pressing the button A (Reset). A The speed may be altered using the rocker switch B in steps of 5 km/h A within 5 seconds of the initial memory value. Fig. 42 Digital screen on Ø mph - Average speed the instrument panel: The average speed will be shown after a distance of approximately 100 Average fuel consumption metres has been travelled. Dashes will appear in the display until that time. display The display will be updated every 5 seconds whilst the vehicle is in motion. You can switch between the following displays in the multi-function display B (MFD) by operating the rocker switch fig. 41 A on the windscreen wiper 5)Depending on the model version, the message on the screen may vary and may be lever. represented by flashing of the speed indication or by a speed message.

Download PDF

Click here to download a pdf file with an instruction manual for Seat Altea
year of production from: 2004

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Altea owners manual
pages 61 - 67

Seat Altea owners manual
page 64 / 302
