text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Lancer Sportback, year of production 2007 - 2016:

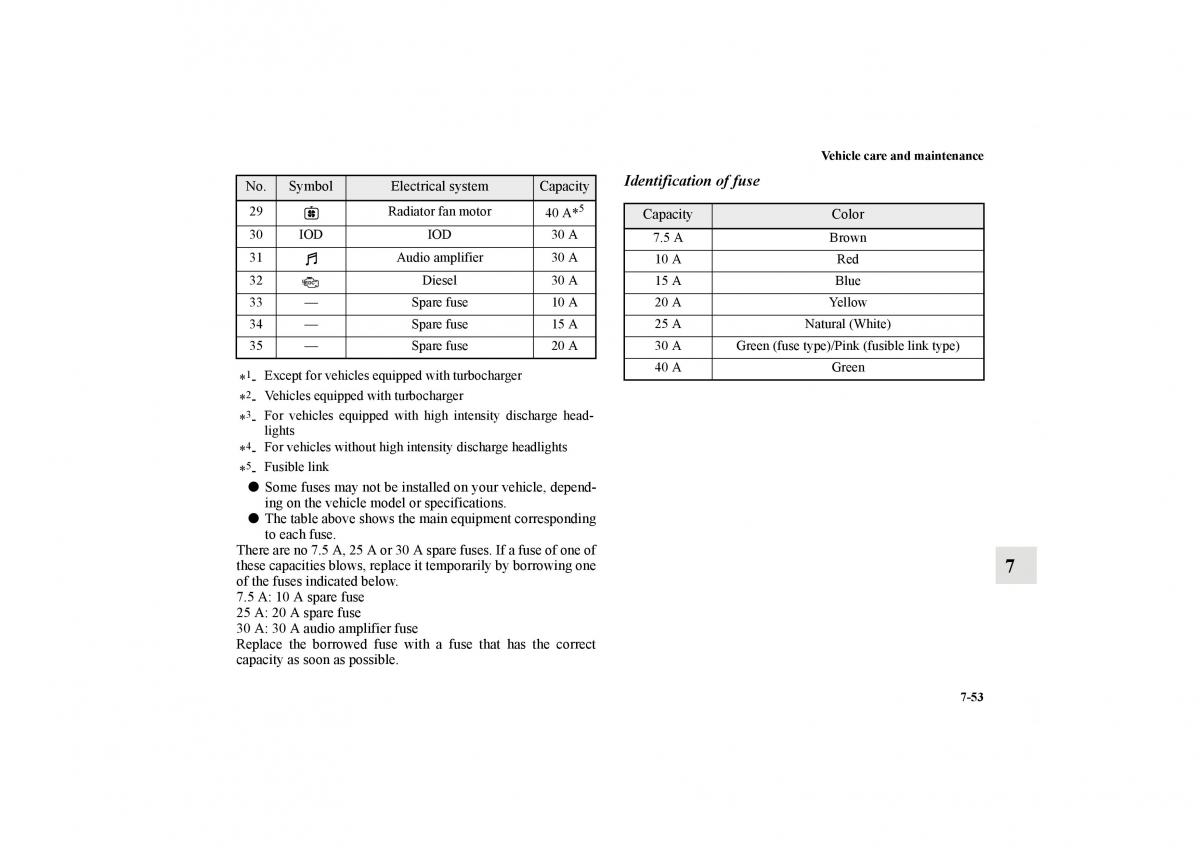

BK0151000US.book 53 ページ㧞㧜㧝㧞年㧟月㧞㧥日　木曜日　午後６時㧤分 Vehicle care and maintenance No. Symbol Electrical system Capacity Identification of fuse 29 Radiator fan motor 5 40 A* Capacity Color 30 IOD IOD 30 A 7.5 A Brown 31 Audio amplifier 30 A 10 A Red 32 Diesel 30 A 15 A Blue 33 — Spare fuse 10 A 20 A Yellow 34 — Spare fuse 15 A 25 A Natural (White) 35 — Spare fuse 20 A 30 A Green (fuse type)/Pink (fusible link type) 1 Except for vehicles equipped with turbocharger 40 A Green * - 2 Vehicles equipped with turbocharger * - 3 For vehicles equipped with high intensity discharge head- * - lights 4 For vehicles without high intensity discharge headlights * - 5 Fusible link * - ●Some fuses may not be installed on your vehicle, depend- ing on the vehicle model or specifications. ●The table above shows the main equipment corresponding to each fuse. There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of these capacities blows, replace it temporarily by borrowing one 7 of the fuses indicated below. 7.5 A: 10 A spare fuse 25 A: 20 A spare fuse 30 A: 30 A audio amplifier fuse Replace the borrowed fuse with a fuse that has the correct capacity as soon as possible. 7-53
