Audi S5 A5 owners manual page 63

text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

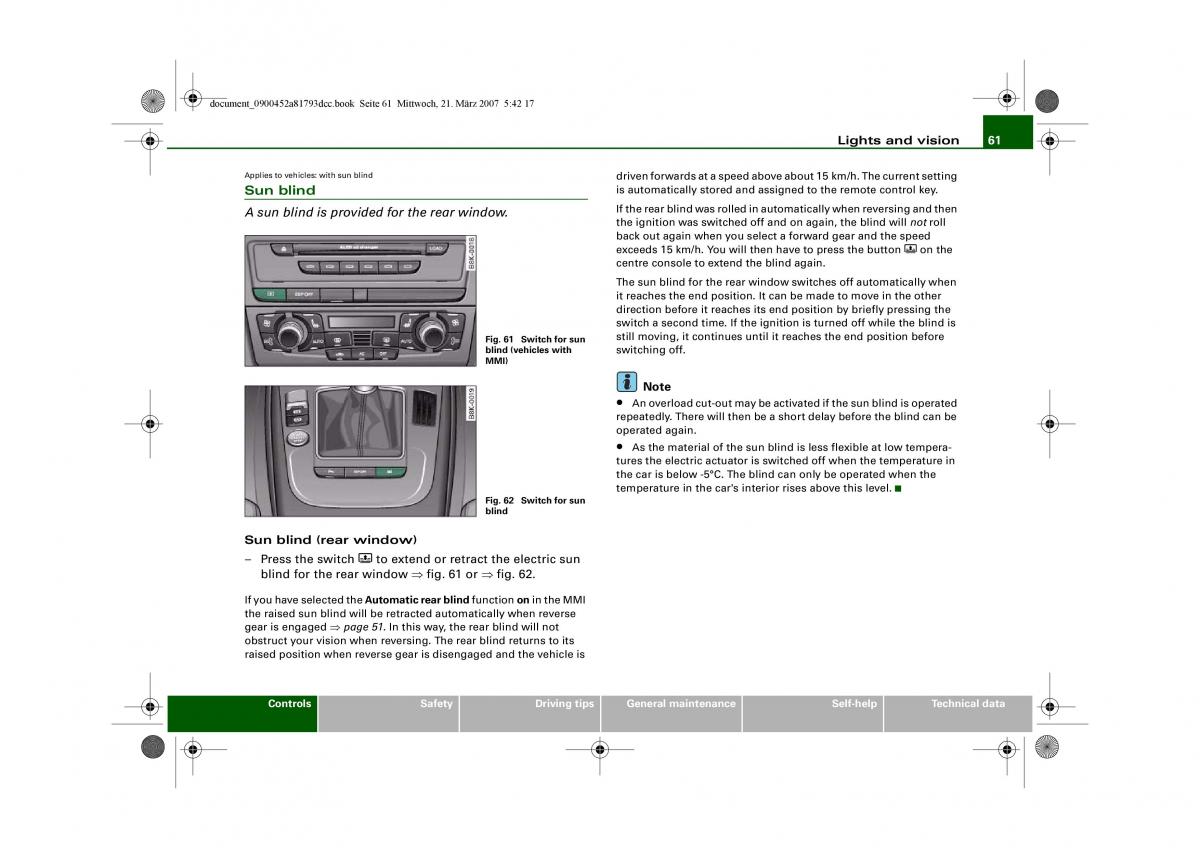

document_0900452a81793dcc.book Seite 61 Mittwoch, 21. März 2007 5:42 17 Lights and vision 61 Applies to vehicles: with sun blind driven forwards at a speed above about 15 km/h. The current setting Sun blind is automatically stored and assigned to the remote control key. A sun blind is provided for the rear window. If the rear blind was rolled in automatically when reversing and then the ignition was switched off and on again, the blind will not roll back out again when you select a forward gear and the speed exceeds 15 km/h. You will then have to press the button  on the centre console to extend the blind again. The sun blind for the rear window switches off automatically when it reaches the end position. It can be made to move in the other direction before it reaches its end position by briefly pressing the switch a second time. If the ignition is turned off while the blind is Fig. 61 Switch for sun still moving, it continues until it reaches the end position before blind (vehicles with switching off. MMI) Note • An overload cut-out may be activa ted if the sun blind is operated repeatedly. There will then be a short delay before the blind can be operated again. • As the material of the sun blind is less flexible at low tempera- tures the electric actuator is switched off when the temperature in the car is below -5°C. The blind can only be operated when the temperature in the car's interior rises above this level. Fig. 62 Switch for sun blind Sun blind (rear window) – Press the switch  to extend or retract the electric sun blind for the rear window ⇒ fig. 61 or ⇒ fig. 62. If you have selected the Automatic rear blind function on in the MMI the raised sun blind will be retracted automatically when reverse gear is engaged ⇒ page 51. In this way, the rear blind will not obstruct your vision when reversing. The rear blind returns to its raised position when reverse gear is disengaged and the vehicle is Controls Safety Driving tips General maintenance Self-help Technical data

owners manual Audi S5

owners manual Audi S5 - year of production: 2007 - Audi S5 A5 owners manual EN
