text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2017:

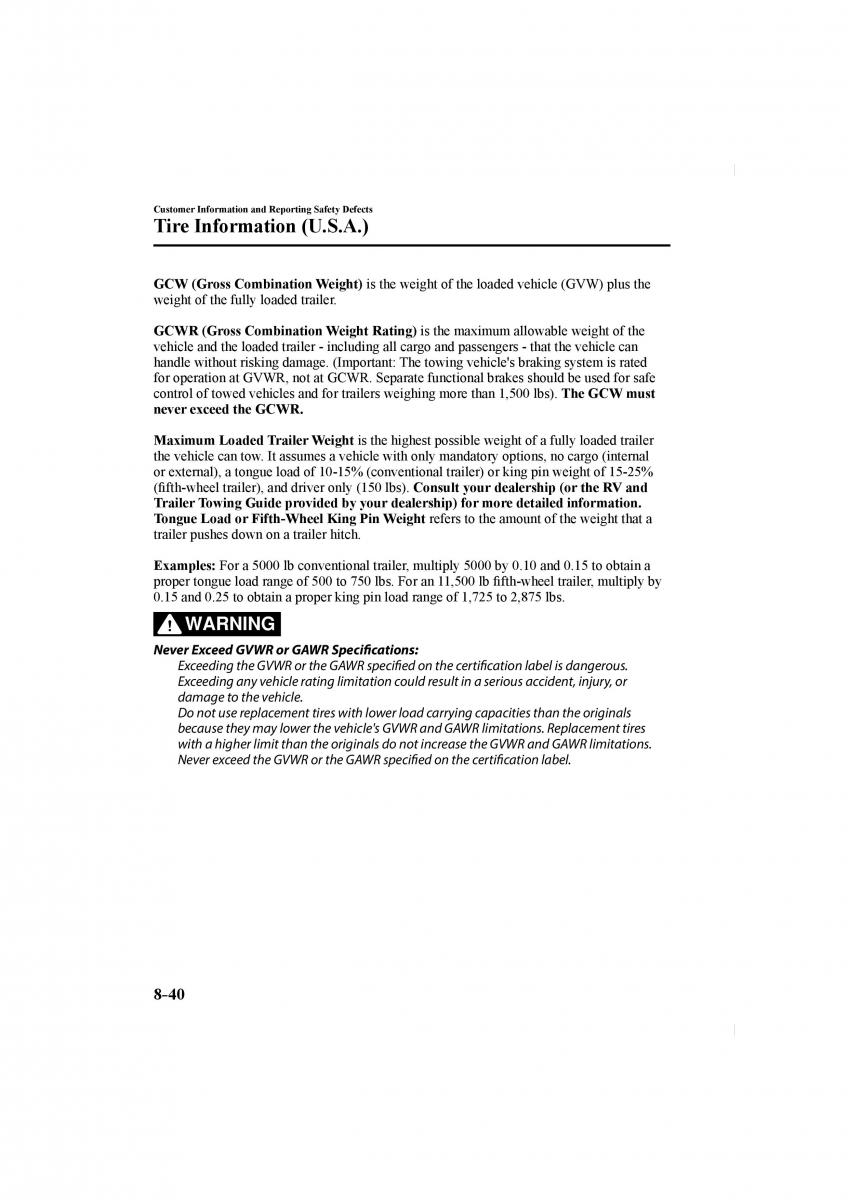

Customer Information and Reporting Safety Defects Tire Information (U.S.A.) GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gr oss Combination Weight Rating) is the maximum allowable weight of the vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can handle without risking damage. (Important: The towing vehicle's braking system is rated for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must never exceed the GCWR. Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or external), a tongue load of 10-15% (conventional trailer) or king pin weight of 15-25% (ﬁ fth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and Trailer Towing Guide provided by your dealership) for more detailed information. Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a trailer pushes down on a trailer hitch. Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a proper tongue load range of 500 to 750 lbs. For an 11,500 lb ﬁ fth-wheel trailer, multiply by 0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs. WARNING Ne ver Exceed GVWR or GAWR Specii cations: Ex ceeding the GVWR or the GAWR specii ed on the certii cation label is dangerous. Exceeding any vehicle rating limitation could result in a serious accident, injury, or damage to the vehicle. D o not use replacement tires with lower load carrying capacities than the originals because they may lower the vehicle's GVWR and GAWR limitations. Replacement tires with a higher limit than the originals do not increase the GVWR and GAWR limitations. Nev er exceed the GVWR or the GAWR specii ed on the certii cation label. 8–40 CX-5_8FN1-EA-16L_Edition1.indb 40 2016/12/12 10:07:35
