text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Lancer Sportback, year of production 2007 - 2016:

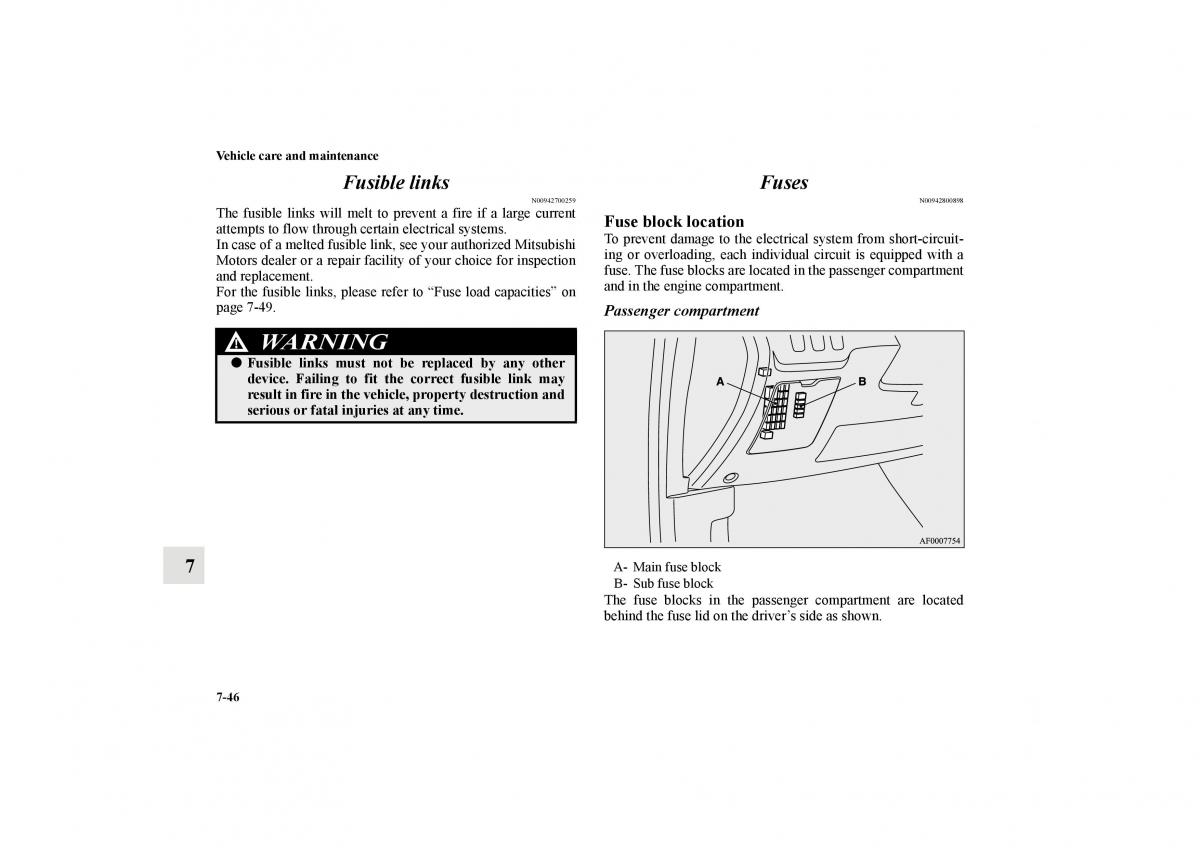

BK0151000US.book 46 ページ㧞㧜㧝㧞年㧟月㧞㧥日　木曜日　午後６時㧤分 Vehicle care and maintenance Fusible links Fuses N00942700259 N00942800898 The fusible links will melt to prevent a fire if a large current attempts to flow through certain electrical systems. Fuse block location In case of a melted fusible link, see your authorized Mitsubishi To prevent damage to the electrical system from short-circuit- Motors dealer or a repair facility of your choice for inspection ing or overloading, each individual circuit is equipped with a and replacement. fuse. The fuse blocks are located in the passenger compartment For the fusible links, please refer to “Fuse load capacities” on and in the engine compartment. page 7-49. Passenger compartment ! WARNING ●Fusible links must not be replaced by any other device. Failing to fit the correct fusible link may result in fire in the vehicle, property destruction and serious or fatal injuries at any time. 7 A- Main fuse block B- Sub fuse block The fuse blocks in the passenger compartment are located behind the fuse lid on the driver’s side as shown. 7-46
