from owners manual to the vehicle Chrysler Voyager, year of production 2008:

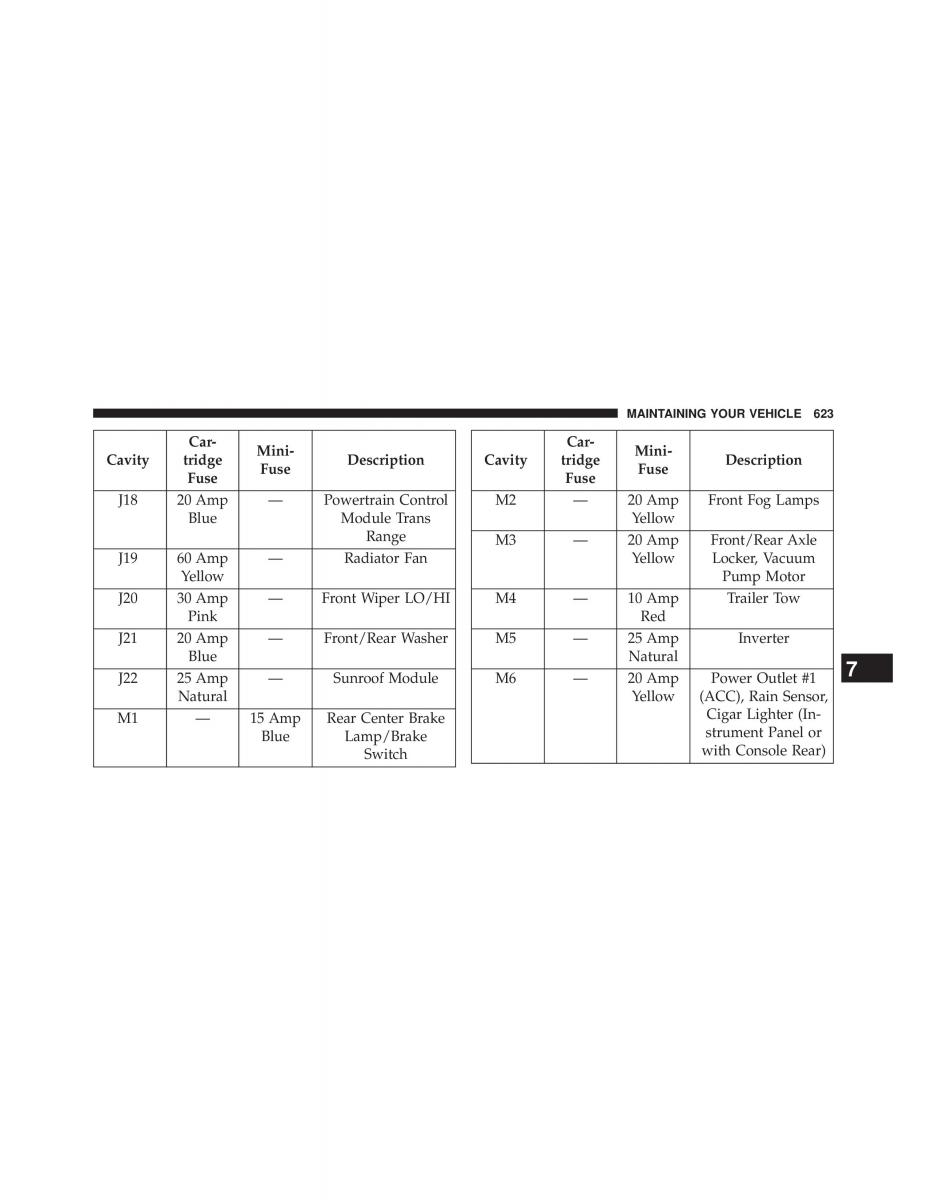

MAINTAINING YOUR VEHICLE 623
Car- Mini- Car- Mini-
Cavity tridge Fuse Description Cavity tridge Fuse Description
Fuse Fuse
J18 20 Amp — Powertrain ControlM2 — 20 Amp Front Fog Lamps
Blue Module Trans Yellow
Range M3 — 20 Amp Front/Rear Axle
J19 60 Amp — Radiator Fan Yellow Locker, Vacuum
Yellow PumpMotor
J20 30 Amp — Front Wiper LO/HI M4 — 10 Amp Trailer Tow
Pink Red
J21 20 Amp — Front/Rear Washer M5 — 25 Amp Inverter
Blue Natural 7
J22 25 Amp — Sunroof Module M6 — 20 Amp Power Outlet #1
Natural Yellow (ACC), Rain Sensor,
M1 — 15 Amp Rear Center Brake Cigar Lighter (In-
Blue Lamp/Brake strument Panel or
Switch with Console Rear)
