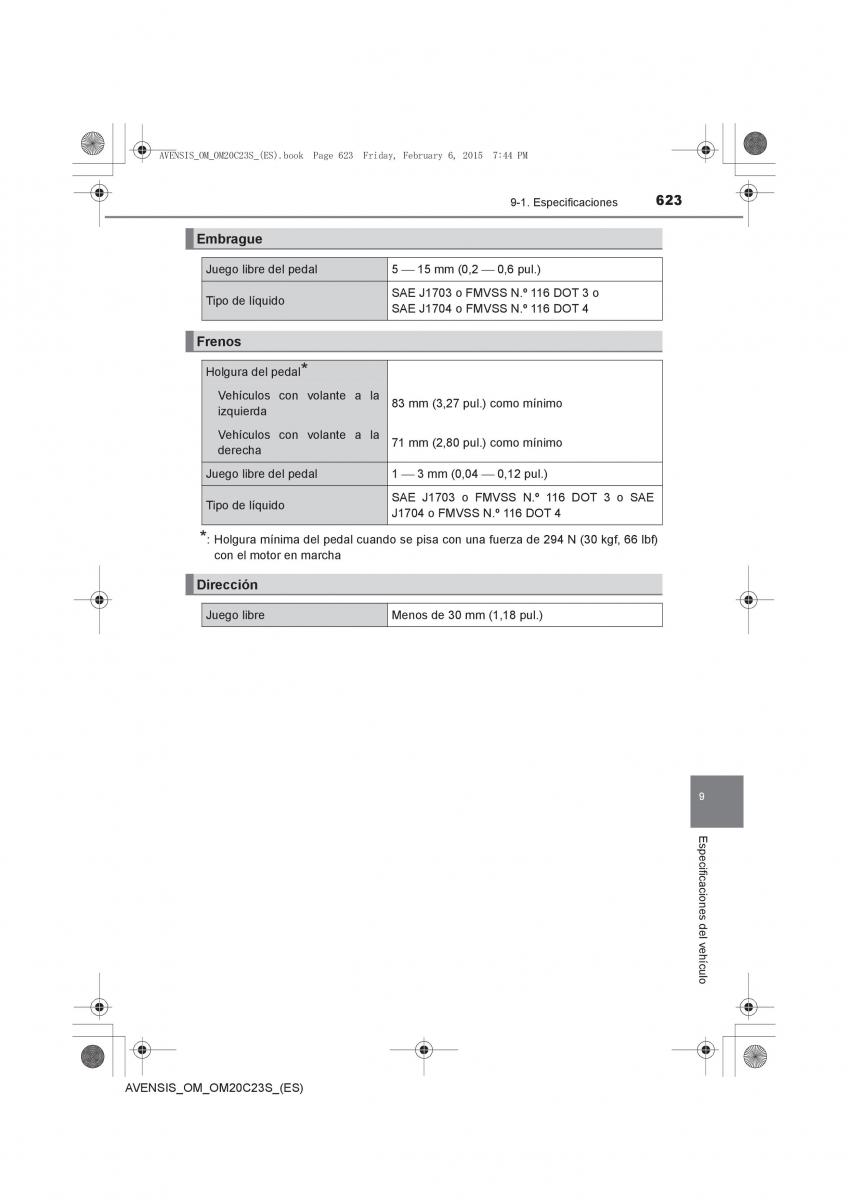

AVENSIS_OM_OM20C23S_(ES).book Page 623 Friday, February 6, 2015 7:44 PM
9-1. Especificaciones623
Embrague
Juego libre del pedal 5 15 mm (0,2 0,6 pul.)
Tipo de líquido SAE J1703 o FMVSS N.º 116 DOT 3 o
SAE J1704 o FMVSS N.º 116 DOT 4
Frenos
Holgura del pedal*
Vehículos con volante a la
izquierda 83 mm (3,27 pul.) como mínimo
Vehículos con volante a la
derecha 71 mm (2,80 pul.) como mínimo
Juego libre del pedal 1 3 mm (0,04 0,12 pul.)
Tipo de líquido SAE J1703 o FMVSS N.º 116 DOT 3 o SAE
J1704 o FMVSS N.º 116 DOT 4
*: Holgura mínima del pedal cuando se pisa con una fuerza de 294 N (30 kgf, 66 lbf)
con el motor en marcha
Dirección
Juego libre Menos de 30 mm (1,18 pul.)
9
Esp
e
ci
f
i
cac
i
o
nes d
e
l
vehí
cul
o
AVENSIS_OM_OM20C23S_(ES)
