text version of content this owner's manual page from owners manual to the vehicle Jeep Wrangler, year of production 1997:

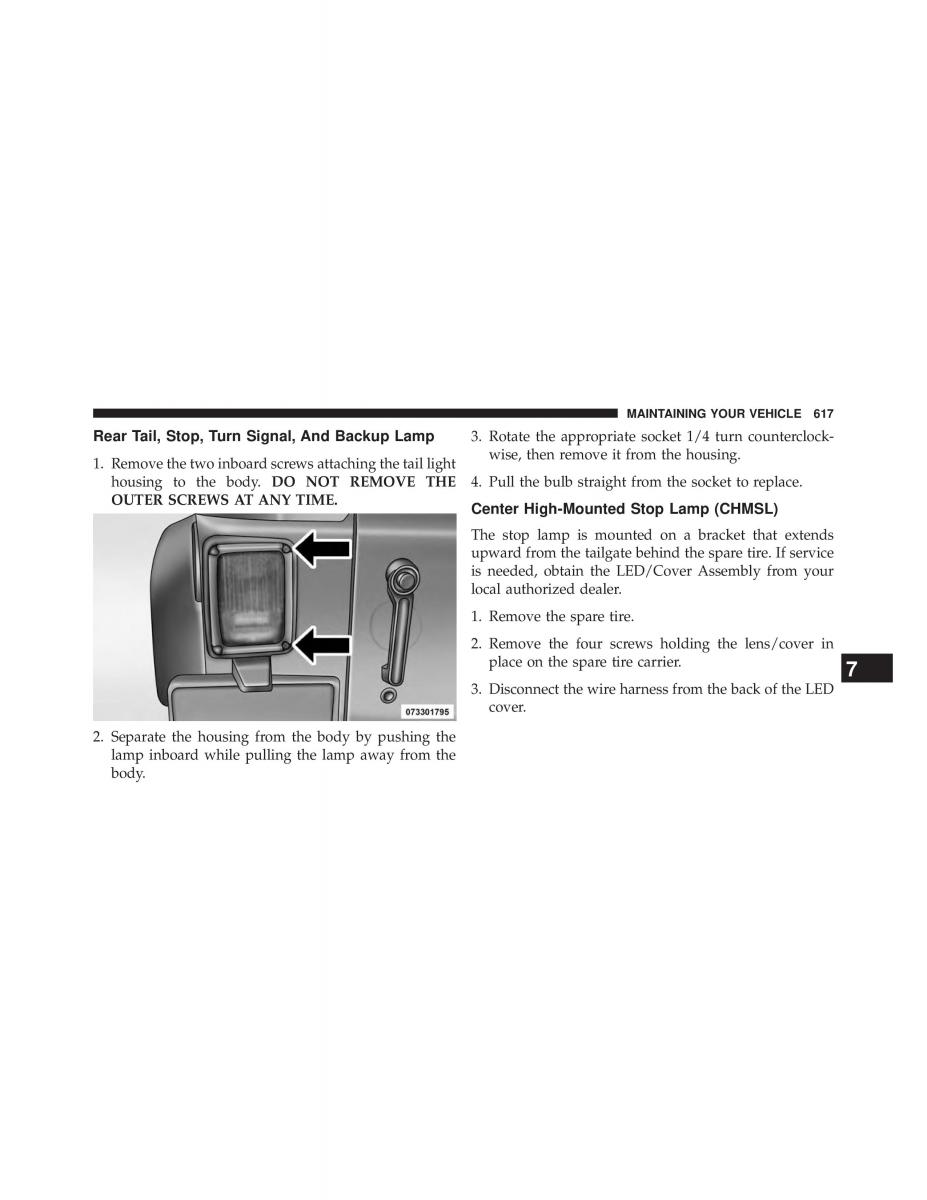

MAINTAINING YOUR VEHICLE 617 Rear Tail, Stop, Turn Signal, And Backup Lamp3. Rotate the appropriate socket 1/4 turn counterclock- 1. Removethetwoinboardscrewsattachingthetaillightwise, then remove it from the housing. housing to the body. DO NOT REMOVE THE 4. Pull the bulb straight from the socket to replace. OUTERSCREWSATANYTIME. Center High-Mounted Stop Lamp (CHMSL) The stop lamp is mounted on a bracket that extends upwardfromthetailgate behind the spare tire. If service is needed, obtain the LED/Cover Assembly from your local authorized dealer. 1. Remove the spare tire. 2. Remove the four screws holding the lens/cover in place on the spare tire carrier. 7 3. Disconnect the wire harness from the back of the LED cover. 2. Separate the housing from the body by pushing the lamp inboard while pulling the lamp away from the body.
