text version of content this owner's manual page from owners manual to the vehicle Toyota RAV4, year of production 2013:

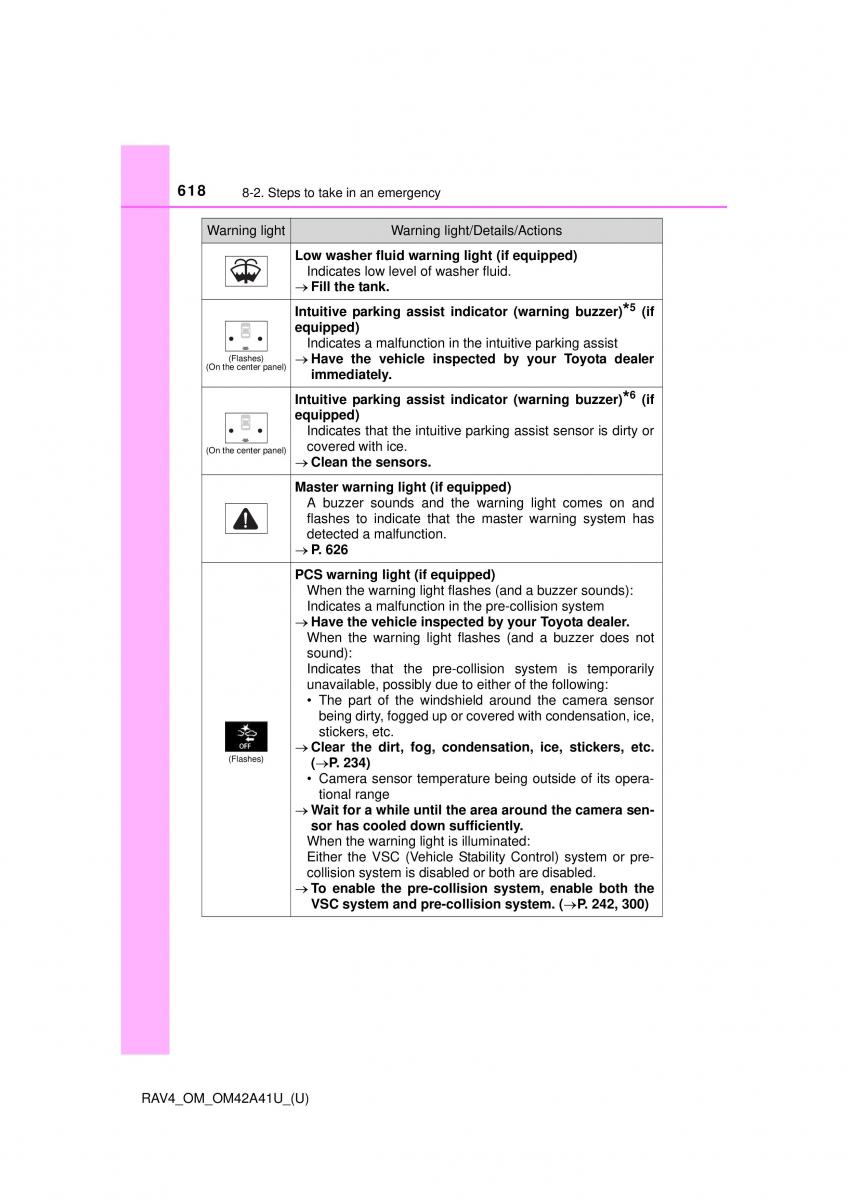

618 8-2. Steps to take in an emergency Warning light Warning light/Details/Actions Low washer fluid warning light (if equipped) Indicates low level of washer fluid. Fill the tank. 5 Intuitive parking assist indicator (warning buzz* (if er) equipped) Indicates a malfunction in the intuitive parking assist (Flashes) Have the vehicle inspected by your Toyota dealer (On the center panel)immediately. 6 Intuitive parking assist indicator (warning buzz* (if er) equipped) Indicates that the intuitive parking assist sensor is dirty or (On the center panel)covered with ice. Clean the sensors. Master warning light (if equipped) A buzzer sounds and the warning light comes on and flashes to indicate that the master warning system has detected a malfunction. P. 626 PCS warning light (if equipped) When the warning light flashes (and a buzzer sounds): Indicates a malfunction in the pre-collision system Have the vehicle inspected by your Toyota dealer. When the warning light flashes (and a buzzer does not sound): Indicates that the pre-collision system is temporarily unavailable, possibly due to either of the following: • The part of the windshield around the camera sensor being dirty, fogged up or covered with condensation, ice, stickers, etc. Clear the dirt, fog, condensation, ice, stickers, etc. (Flashes) (P. 234) • Camera sensor temperature being outside of its opera- tional range Wait for a while until the area around the camera sen- sor has cooled down sufficiently. When the warning light is illuminated: Either the VSC (Vehicle Stability Control) system or pre- collision system is disabled or both are disabled. To enable the pre-collision system, enable both the VSC system and pre-collision system. (P. 242, 300) RAV4_OM_OM42A41U_(U)
