text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2017:

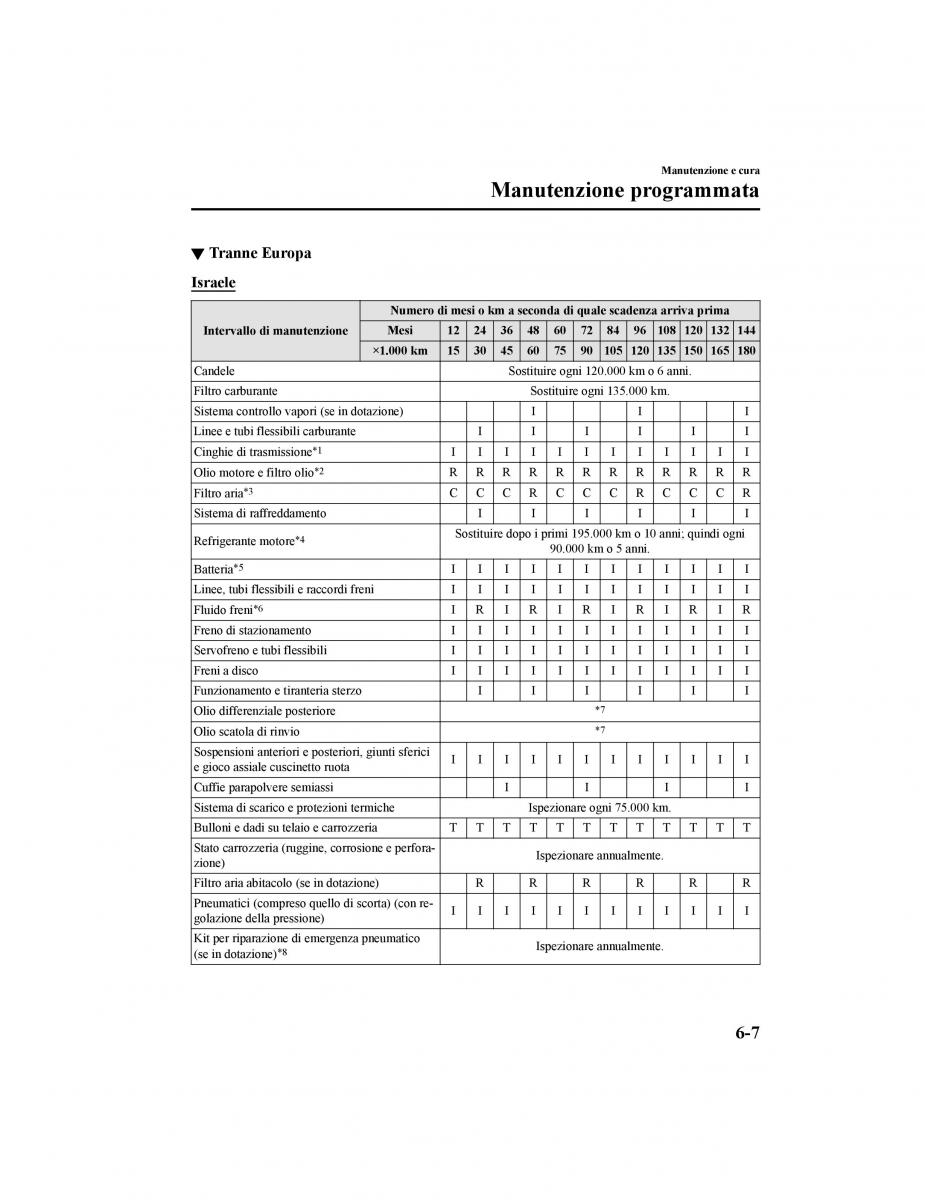

Manutenzione e cura Manutenzione programmata Tranne Europa ▼ Israele Numero di mesi o km a seconda di quale scadenza arriva prima Intervallo di manutenzione Mesi 12 24 36 48 60 72 84 96 108 120 132 144 ×1.000 km 15 30 45 60 75 90 105 120 135 150 165 180 Candele Sostituire ogni 120.000 km o 6 anni. Filtro carburante Sostituire ogni 135.000 km. Sistema controllo vapori (se in dotazione) I I I Linee e tubi flessibili carburante IIIIII *1 IIIIIIIIIIII Cinghie di trasmissione *2 RRRRRRRRRRRR Olio motore e filtro olio *3 CCCRCCCRCCCR Filtro aria Sistema di raffreddamento IIIIII Refrigerante motore*4 Sostituire dopo i primi 195.000 km o 10 anni; quindi ogni 90.000 km o 5 anni. Batteria*5 IIIIIIIIIIII Linee, tubi flessibili e raccordi freni I I I I I I I I I I I I Fluido freni*6 IRIRIRIRIRIR Freno di stazionamento IIIIIIIIIIII Servofreno e tubi flessibili IIIIIIIIIIII Freni a disco IIIIIIIIIIII Funzionamento e tiranteria sterzo IIIIII Olio differenziale posteriore *7 Olio scatola di rinvio *7 Sospensioni anteriori e posteriori, giunti sferici IIIIIIIIIIII e gioco assiale cuscinetto ruota Cuffie parapolvere semiassi I I I I Sistema di scarico e protezioni termiche Ispezionare ogni 75.000 km. Bulloni e dadi su telaio e carrozzeria T T T T T T T T T T T T Stato carrozzeria (ruggine, corrosione e perfora- Ispezionare annualmente. zione) Filtro aria abitacolo (se in dotazione) RRRRRR Pneumatici (compreso quello di scorta) (con re- IIIIIIIIIIII golazione della pressione) Kit per riparazione di emergenza pneumatico Ispezionare annualmente. (se in dotazione)*8 6-7 2017-7-17 13:21:27 Form No. CX-5 8FY4-EE-17E-IT+L_Edition1.pdf
