text version of content this owner's manual page from owners manual to the vehicle Hyundai Grandeur, year of production 2005 - 2011:

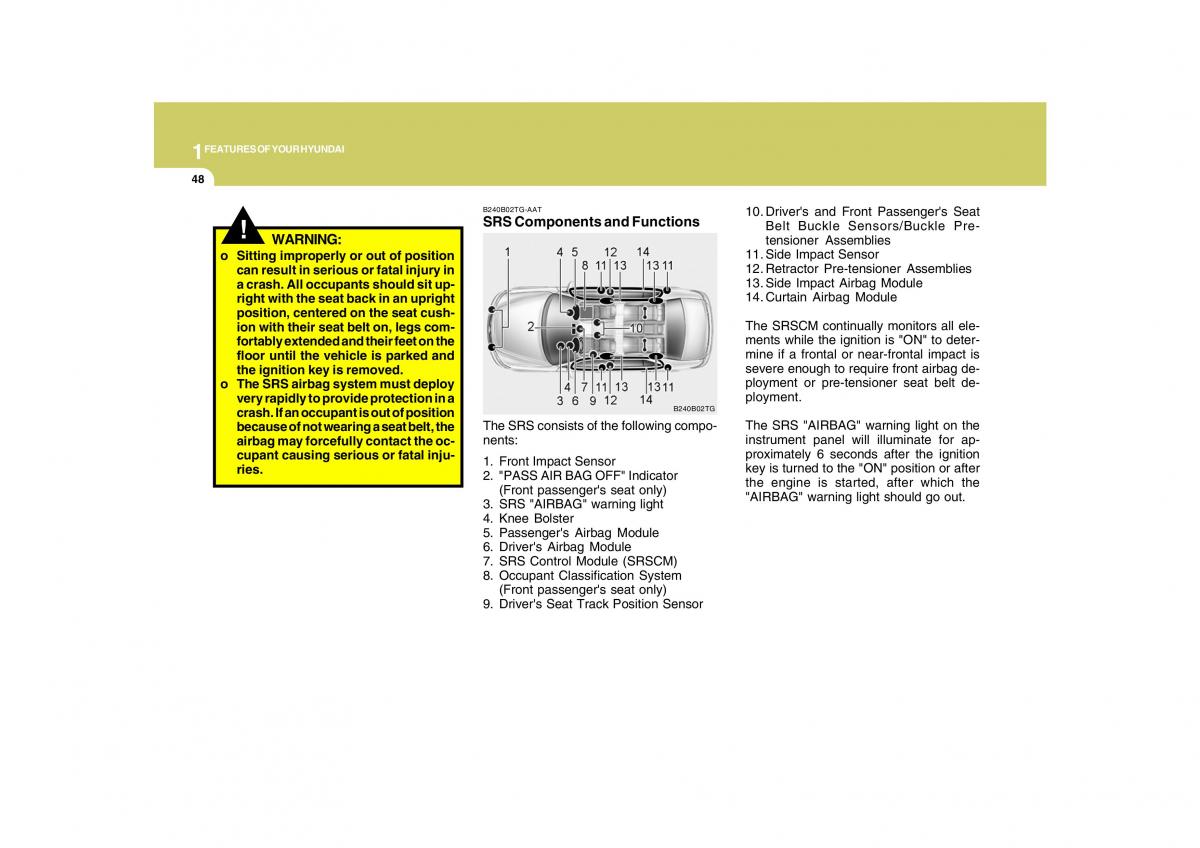

FEATURES OF YOUR HYUNDAI 1 48 B240B02TG-AAT 10.Driver's and Front Passenger's Seat ! SRS Components and Functions Belt Buckle Sensors/Buckle Pre- WARNING: tensioner Assemblies o Sitting improperly or out of position 11.Side Impact Sensor can result in serious or fatal injury in 12.Retractor Pre-tensioner Assemblies a crash. All occupants should sit up- 13.Side Impact Airbag Module right with the seat back in an upright 14.Curtain Airbag Module position, centered on the seat cush- ion with their seat belt on, legs com- The SRSCM continually monitors all ele- fortably extended and their feet on the ments while the ignition is "ON" to deter- floor until the vehicle is parked and mine if a frontal or near-frontal impact is the ignition key is removed. severe enough to require front airbag de- o The SRS airbag system must deploy ployment or pre-tensioner seat belt de- very rapidly to provide protection in a ployment. crash. If an occupant is out of position B240B02TG because of not wearing a seat belt, the The SRS consists of the following compo- The SRS "AIRBAG" warning light on the airbag may forcefully contact the oc- nents: instrument panel will illuminate for ap- cupant causing serious or fatal inju- 1. Front Impact Sensor proximately 6 seconds after the ignition ries. 2. "PASS AIR BAG OFF" Indicator key is turned to the "ON" position or after (Front passenger's seat only) the engine is started, after which the 3. SRS "AIRBAG" warning light "AIRBAG" warning light should go out. 4. Knee Bolster 5. Passenger's Airbag Module 6. Driver's Airbag Module 7. SRS Control Module (SRSCM) 8. Occupant Classification System (Front passenger's seat only) 9. Driver's Seat Track Position Sensor
