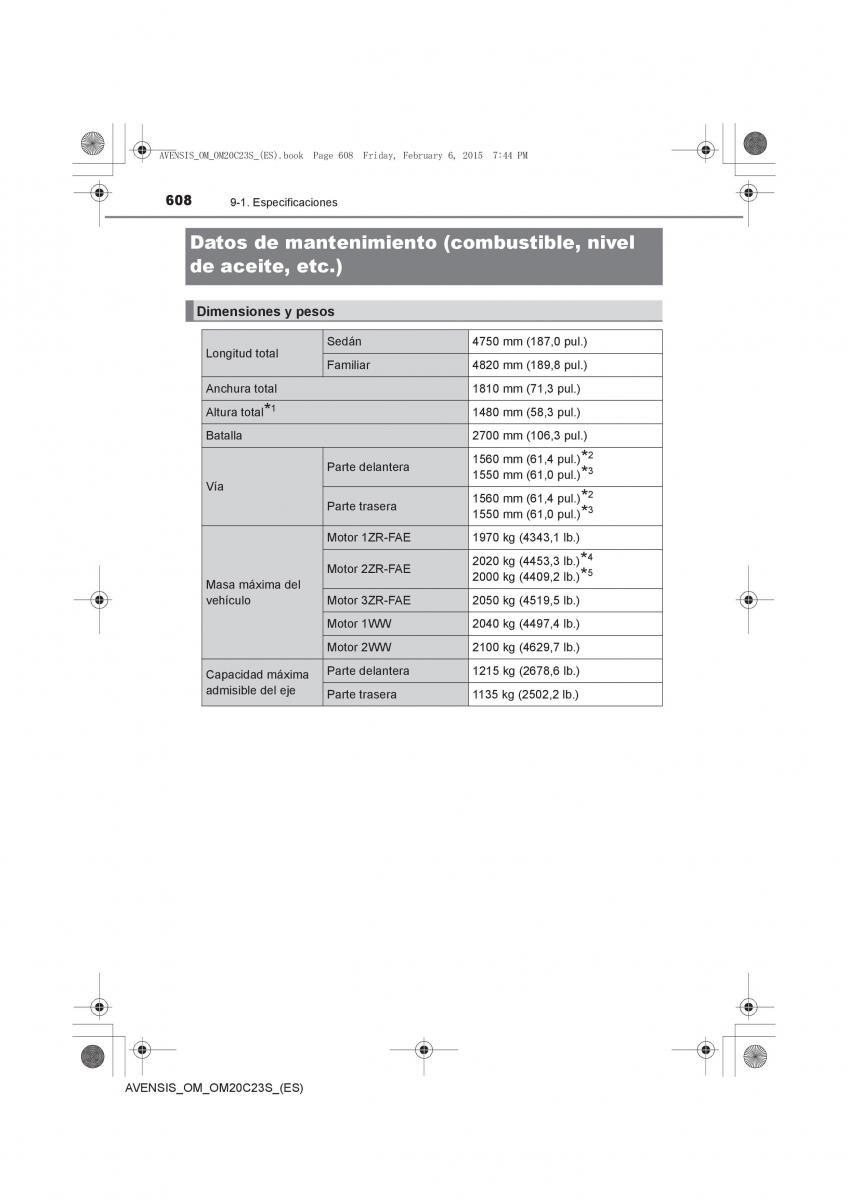

AVENSIS_OM_OM20C23S_(ES).book Page 608 Friday, February 6, 2015 7:44 PM
608 9-1. Especificaciones
Datos de mantenimiento (combustible, nivel
de aceite, etc.)
Dimensiones y pesos
Longitud total Sedán 4750 mm (187,0 pul.)
Familiar 4820 mm (189,8 pul.)
Anchura total 1810 mm (71,3 pul.)
1
Altura total* 1480 mm (58,3 pul.)
Batalla 2700 mm (106,3 pul.)
2
*
Parte delantera 1560 mm (61,4 pul.)
3
Vía 1550 mm (61,0 pul.)*
2
Parte trasera 1560 mm (61,4 pul.)*
3
1550 mm (61,0 pul.)*
Motor 1ZR-FAE 1970 kg (4343,1 lb.)
2020 kg (4453,3 lb.)*4
Motor 2ZR-FAE 2000 kg (4409,2 lb.)*5
Masa máxima del
vehículo Motor 3ZR-FAE 2050 kg (4519,5 lb.)
Motor 1WW 2040 kg (4497,4 lb.)
Motor 2WW 2100 kg (4629,7 lb.)
Capacidad máxima Parte delantera 1215 kg (2678,6 lb.)
admisible del ejeParte trasera 1135 kg (2502,2 lb.)
AVENSIS_OM_OM20C23S_(ES)
