text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2008 - 2015:

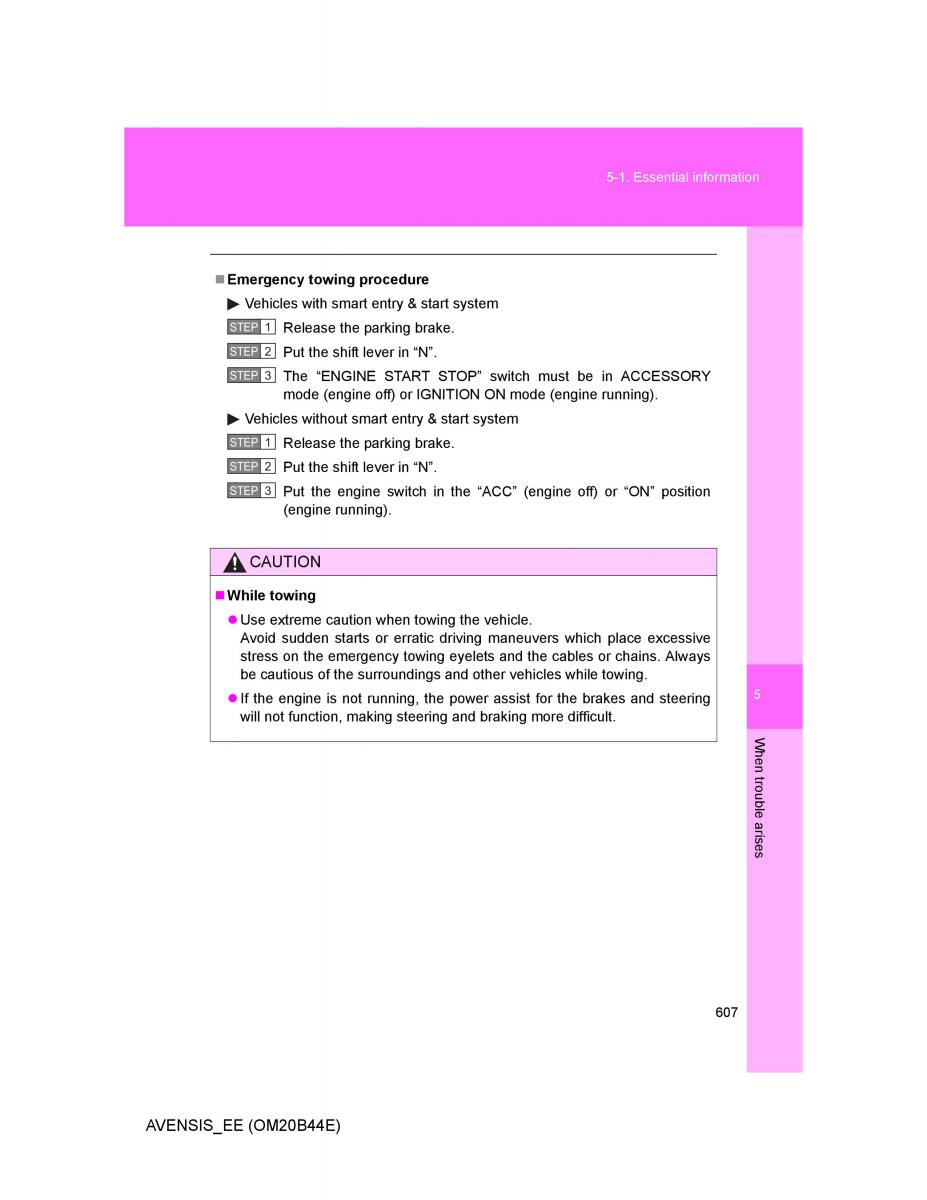

5-1. Essential information Emergency towing procedure Vehicles with smart entry & start system STEP 1 Release the parking brake. STEP 2 Put the shift lever in “N”. STEP 3 The “ENGINE START STOP” switch must be in ACCESSORY mode (engine off) or IGNITION ON mode (engine running). Vehicles without smart entry & start system STEP 1 Release the parking brake. STEP 2 Put the shift lever in “N”. STEP 3 Put the engine switch in the “ACC” (engine off) or “ON” position (engine running). CAUTION While towing Use extreme caution when towing the vehicle. Avoid sudden starts or erratic ing maneuvers which place excesdrivsive stress on the emergency towing eyelets and the cables or chains. Always be cautious of the surroundings and other vehicles while towing. 5 If the engine is not running, the power assist for the brakes and steering will not function, making steering and braking more difficult. Wh en tro uble a r ises 607 AVENSIS_EE (OM20B44E)
