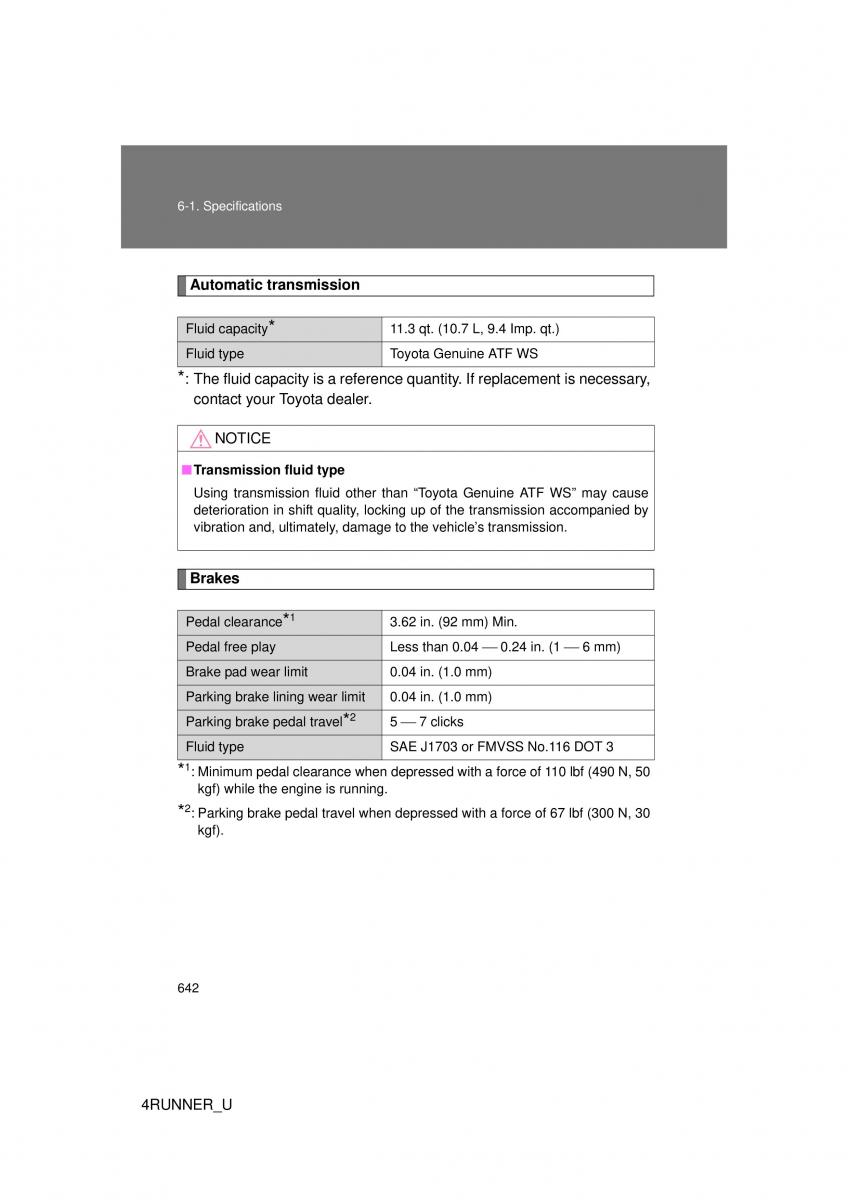

6-1. Specifications
Automatic transmission
Fluid capacity* 11.3 qt. (10.7 L, 9.4 Imp. qt.)
Fluid type Toyota Genuine ATF WS
*: The fluid capacity is a reference quantity. If replacement is necessary,
contact your Toyota dealer.
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
Brakes
1
Pedal clearance* 3.62 in. (92 mm) Min.
Pedal free play Less than 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*25 ⎯ 7 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
1
* : Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
2
* : Parking brake pedal travel when depressed with a force of 67 lbf (300 N, 30
kgf).
642
4RUNNER_U
