text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Lancer Sportback, year of production 2007 - 2016:

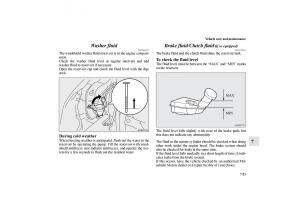

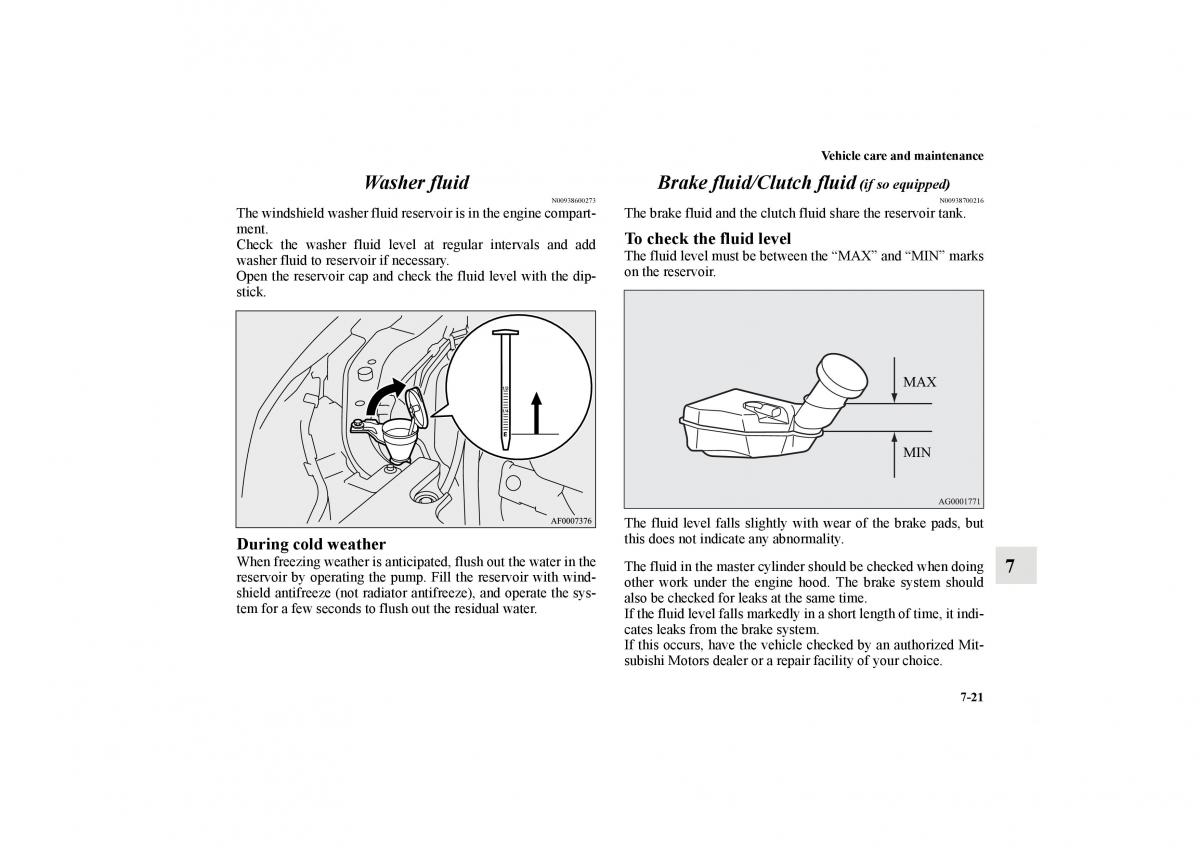

BK0151000US.book 21 ページ㧞㧜㧝㧞年㧟月㧞㧥日　木曜日　午後６時㧤分 Vehicle care and maintenance Washer fluid Brake fluid/Clutch fluid (if so equipped) N00938600273 N00938700216 The windshield washer fluid reservoir is in the engine compart- The brake fluid and the clutch fluid share the reservoir tank. ment. To check the fluid level Check the washer fluid level at regular intervals and add washer fluid to reservoir if necessary. The fluid level must be between the “MAX” and “MIN” marks on the reservoir. Open the reservoir cap and check the fluid level with the dip- stick. MAX MIN The fluid level falls slightly with wear of the brake pads, but During cold weather this does not indicate any abnormality. When freezing weather is anticipated, flush out the water in the The fluid in the master cylinder should be checked when doing 7 reservoir by operating the pump. Fill the reservoir with wind- other work under the engine hood. The brake system should shield antifreeze (not radiator antifreeze), and operate the sys- also be checked for leaks at the same time. tem for a few seconds to flush out the residual water. If the fluid level falls markedly in a short length of time, it indi- cates leaks from the brake system. If this occurs, have the vehicle checked by an authorized Mit- subishi Motors dealer or a repair facility of your choice. 7-21
