text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

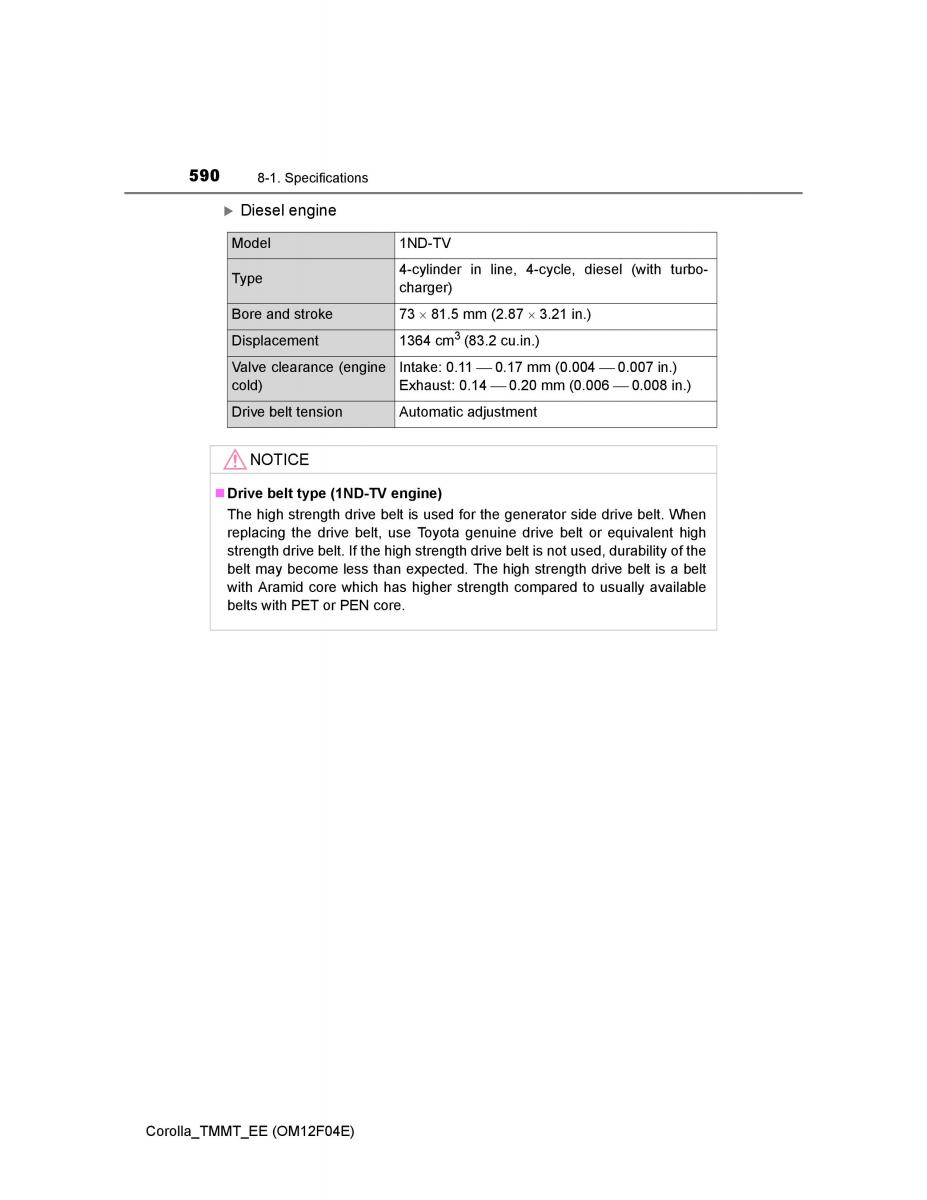

590 8-1. Specifications  Diesel engine Model 1ND-TV Type 4-cylinder in line, 4-cycle, diesel (with turbo- charger) Bore and stroke 73  81.5 mm (2.87  3.21 in.) 3 Displacement 1364 cm (83.2 cu.in.) Valve clearance (engine Intake: 0.11 0.17 mm (0.004 0.007 in.) cold) Exhaust: 0.14 0.20 mm (0.006 0.008 in.) Drive belt tension Automatic adjustment NOTICE Drive belt type (1ND-TV engine) The high strength drive belt is used for the generator side drive belt. When replacing the drive belt, use Toyota genuine drive belt or equivalent high strength drive belt. If the high strength drive belt is not used, durability of the belt may become less than expected. The high strength drive belt is a belt with Aramid core which has higher strength compared to usually available belts with PET or PEN core. Corolla_TMMT_EE (OM12F04E)
